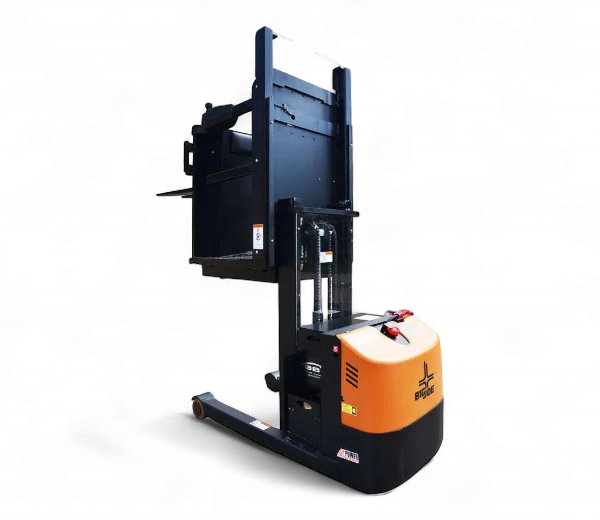

Big Joe J2 Joey Low Level Order Picker Forklift
Compact & Highly Maneuverable
The J2 JOEY Low Level Order Picker is the ideal tool for companies looking to increase pick locations and pick rate with a small, flexible machine. By bringing operators several feet off the ground and products up to waist level for handling, the J2 JOEY Low Level Order Picker is an excellent choice for broken case picking operations such as e-commerce and retail store support.
The J2 JOEY Low Level Order Picker is a perfect fit for both small retail aisles and large distribution centers.
Specs
| Model Number | Load Capacity | Width | Height | Max Fork Height | Lift Speed | Travel Speed | Voltage |
|---|---|---|---|---|---|---|---|
| JX2-72 | 1,000 lbs | 31.5" | 60" | 72" | 32 fpm | 4.5 mph | 24 V |
| Model Number | Load Capacity |
|---|---|
| JX2-72 | 1,000 lbs |
| Model Number | Width |
|---|---|
| JX2-72 | 31.5" |
| Model Number | Height |
|---|---|
| JX2-72 | 60" |
| Model Number | Max Fork Height |
|---|---|
| JX2-72 | 72" |
| Model Number | Lift Speed |
|---|---|
| JX2-72 | 32 fpm |
| Model Number | Travel Speed |
|---|---|
| JX2-72 | 4.5 mph |
| Model Number | Voltage |
|---|---|
| JX2-72 | 24 V |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized ePicker dealers retain the most current product specifications. All specifications should be verified by an authorized ePicker dealer prior to purchase.
Overview
The Big Joe J2 Joey is a compact, low-level order picker designed for tasks such as picking broken cases and staging pallets in small retail aisles and large distribution centers. It combines maneuverability with a mini mast and a 48″ operator lift to reach products up to waist height. The travel speed remains constant relative to throttle position regardless of the load on the truck.
- 1,500-pound total vehicle capacity: 300-pound operator’s compartment, 1,000-pound front work platform, 200-pound rear work platform*
Performance
- AC drive motor
- 36″ long forks
- Non-marking tires
- Hydraulic front mini mast with independent controls
- Three-point chassis design
- 180° drive motor steering
Ergonomics
- LCD dashboard
- Ergonomic fingertip control
- Roomy operator compartment
- Floor mat
- Forward and backrest cushion
- Low 9″ step height compartment
Safety Features
- LCD dashboard display
- 4 selectable travel speeds and a global turtle travel speed
- Regenerative braking is applied when the operator removes their hand from travel control
- Electromagnetic parking brake
- Rear flashing light
Ease of Service
- Sealed hydraulic lift and drive components
- Battery compartment rollers
Options
