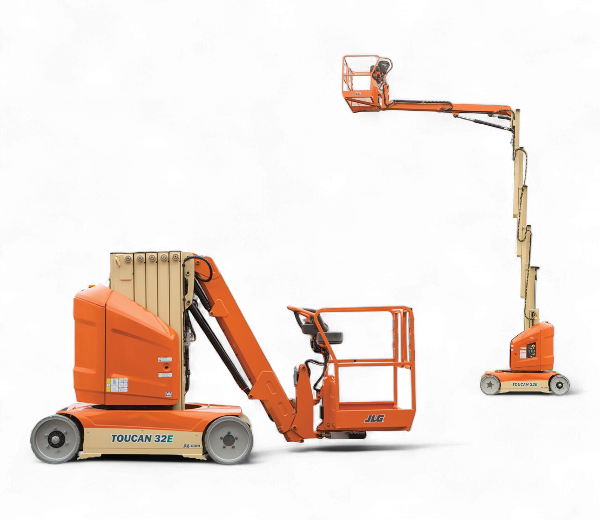

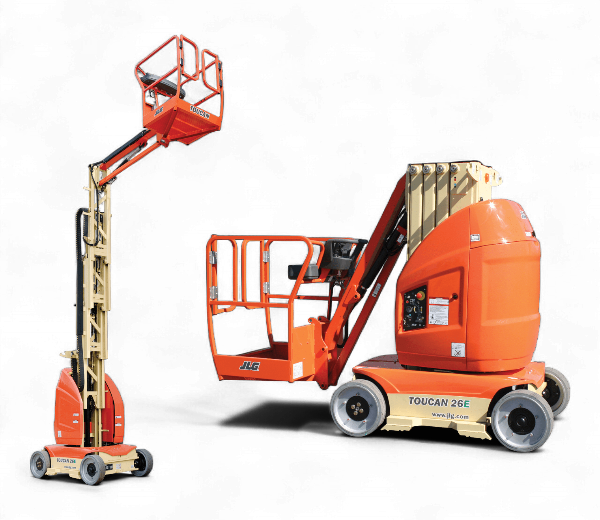

JLG Electric Toucan Mast Boom Aerial Lift
Toucan Series
With the JLG Toucan Mast Boom Aerial List, you can meet your overhead challenges head-on. Work up, over, and around assembly lines, shelving, ductwork, or partitions more easily and without interference. These mast boom lifts feature thick rubber non-marking tires, clean and efficient electric power, and 25% gradeability. A92.20 compliant.
Specs
| Model Number | Machine Width | Machine Length | Machine Height | Working Height | Horizontal Outreach | Gradeability | Platform Size |
|---|---|---|---|---|---|---|---|
| 20E | 3' 3" | 6' 11" | 6' 6" | 20' 4" | 6' 5" | 2WD 25% | 38 x 33" |
| 26E | 3' 9" | 9' 3" | 6' 7" | 26' 5" | 8' 8" | 2WD 25% | 38 x 29" |
| 32E | 3' 11" | 11' 10" | 6' 7" | 32' 3" | 14'11" | 2WD 25% | 41 x 28" |
| Model Number | Machine Width |
|---|---|
| 20E | 3' 3" |
| 26E | 3' 9" |
| 32E | 3' 11" |
| Model Number | Machine Length |
|---|---|
| 20E | 6' 11" |
| 26E | 9' 3" |
| 32E | 11' 10" |
| Model Number | Machine Height |
|---|---|
| 20E | 6' 6" |
| 26E | 6' 7" |
| 32E | 6' 7" |
| Model Number | Working Height |
|---|---|
| 20E | 20' 4" |
| 26E | 26' 5" |
| 32E | 32' 3" |
| Model Number | Horizontal Outreach |
|---|---|
| 20E | 6' 5" |
| 26E | 8' 8" |
| 32E | 14'11" |
| Model Number | Gradeability |
|---|---|
| 20E | 2WD 25% |
| 26E | 2WD 25% |
| 32E | 2WD 25% |
| Model Number | Platform Size |
|---|---|
| 20E | 38 x 33" |
| 26E | 38 x 29" |
| 32E | 41 x 28" |
Product specifications may not reflect the most current product details. Authorized JLG dealers retain the most current product specifications. All specifications should be verified by an authorized JLG dealer prior to purchase.
Overview
JLG’s Toucan Series, electric vertical mast boom lifts designed for accessing tight overhead spaces, featuring a 360° rotating mast, an articulating jib for up-and-over reach, and an intuitive, all-electric drive. The ability to drive with the mast elevated, combined with precise controls, speeds up work.
Performance
- Vertical telescopic mast
- Non-marking tires and efficient electric power for indoor jobs
- 25% gradeability for outside work
Ergonomics
- Intuitive joystick controls
- Central control unit for left and right-hand operators
- Quiet electric operation
- Non-marking tires
Safety Features
- Load-sensing system
- SkyGuard
- Emergency lowering pump
- All-motion alarm
- Tilt alarm/indicator light
Ease of Service
- Battery conditioner indicator
Options
