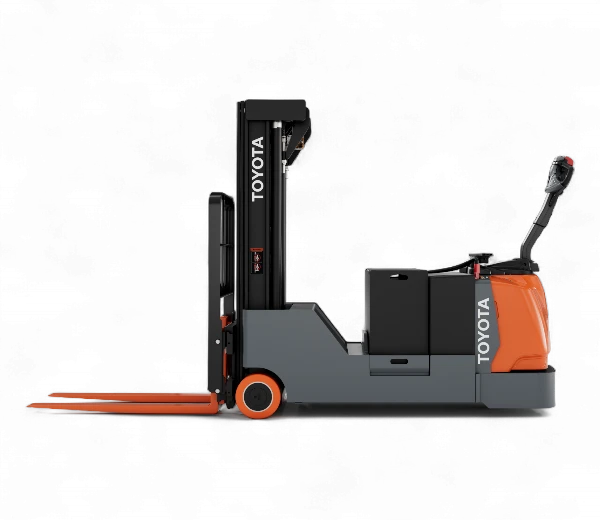

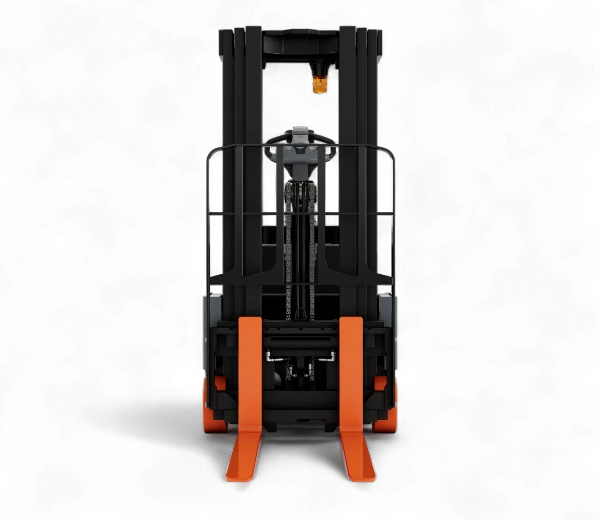

Toyota Counterbalanced Electric Pallet Stacker
It Really Stacks Up!
Toyota’s Counter-Balanced Electric Pallet Stacker is a nimble, highly versatile lift that complements nearly any primarily indoor application. Balanced, similar to a traditional forklift and without base legs, the Counterbalanced Electric Stacker can fit into tight spaces. Highly durable and budget-friendly, the Toyota Counter-Balanced Stacker can help increase both your uptime and your bottom line.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Full Load Max. Travel Speed | Full Load Max. Lift Speed | Gradeability | Basic Right Angle Stack** |
|---|---|---|---|---|---|
| 6BWC10 | 2,000 lbs | 2.9 mph | 37 fpm | 6% | 111" |
| 6BWC15 | 3,000 lbs | 3 mph | 32 fpm | 6% | 116" |
| 6BWC20 | 4,000 lbs | 2.8 mph | 27 fpm | 6% | 122" |
| Model Number | Load Capacity |
|---|---|
| 6BWC10 | 2,000 lbs |
| 6BWC15 | 3,000 lbs |
| 6BWC20 | 4,000 lbs |
| Model Number | Full Load Max. Travel Speed |
|---|---|
| 6BWC10 | 2.9 mph |
| 6BWC15 | 3 mph |
| 6BWC20 | 2.8 mph |
| Model Number | Full Load Max. Lift Speed |
|---|---|
| 6BWC10 | 37 fpm |
| 6BWC15 | 32 fpm |
| 6BWC20 | 27 fpm |
| Model Number | Gradeability |
|---|---|
| 6BWC10 | 6% |
| 6BWC15 | 6% |
| 6BWC20 | 6% |
| Model Number | Basic Right Angle Stack** |
|---|---|
| 6BWC10 | 111" |
| 6BWC15 | 116" |
| 6BWC20 | 122" |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.
Specifications
LOAD CAPACITY
FULL LOAD TRAVEL SPEED
VOLTAGE
Overview
Toyota’s Counterbalanced Stacker Series is known for its versatility in tight indoor spaces due to its compact size. They feature a high-visibility mast for operator safety, an ergonomic control handle with electric lift/lower functions, and a 24-volt electrical system. Suitable for various applications, including manufacturing, retail, and distribution warehouses.
Performance
- 24 V electrical system
- Programmable controller
- 30″wide ITA Class II hook-type carriage
- On/off key switch
- UL Approved Type E
Ergonomics
- Mechanical drum brake
- Directional thumb control
- Reverse direction switch in control handle
- Power on self-test
Safety Features
- Electric horn
- High-visibility mast
- Emergency power disconnect switch
Ease of Service
- Easy-access service cover
- Pressure-overload relief valve and lowering control fuses
- SB-175 red connector
Options
