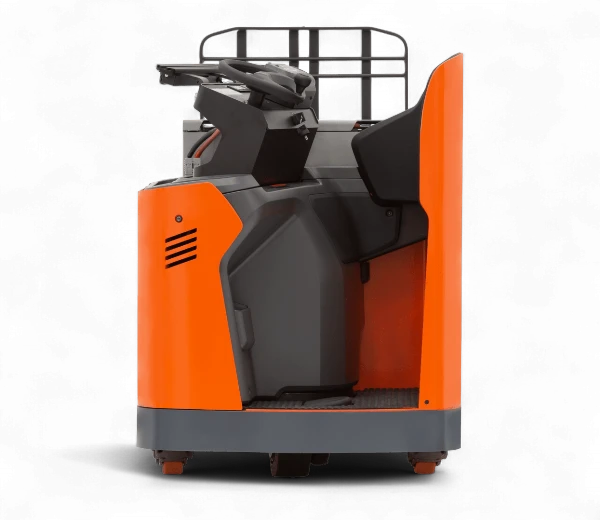

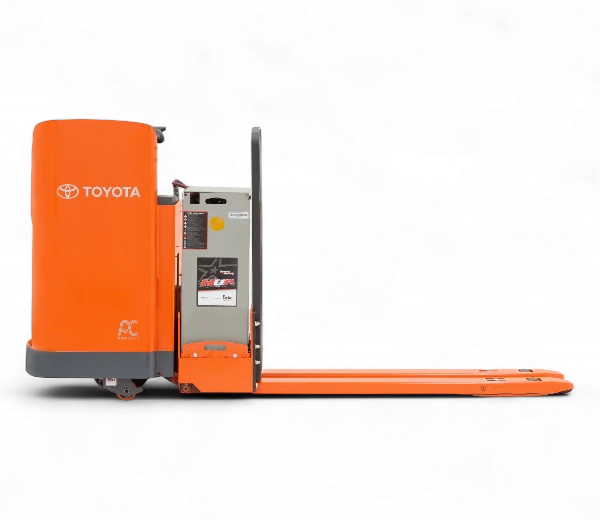

Toyota Enclosed End Rider Pallet Jack
Productivity, Efficiency, & Uptime
Toyota’s Enclosed End Rider simplifies traveling through your warehouse during loading and unloading of products. This Enclosed End Rider is the pallet-moving secret to productivity, efficiency, and uptime that you’ve been looking for. Designed with a steel-enforced undercarriage and stainless pins for reinforced strength to handle the heaviest of loads, the Enclosed End Rider is the perfect lift for delivering an impeccable performance so you can get the job done.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Width | Height | Travel Speed | Gradeability | Voltage |
|---|---|---|---|---|---|---|
| ER1-ES60 | 6,000 lbs | 40" | 37" | 9 mph | 8% | 24 V |
| ER1-ES80 | 8,000 lbs | 40" | 37" | 9 mph | 8% | 24 V |
| Model Number | Load Capacity |
|---|---|
| ER1-ES60 | 6,000 lbs |
| ER1-ES80 | 8,000 lbs |
| Model Number | Width |
|---|---|
| ER1-ES60 | 40" |
| ER1-ES80 | 40" |
| Model Number | Height |
|---|---|
| ER1-ES60 | 37" |
| ER1-ES80 | 37" |
| Model Number | Travel Speed |
|---|---|
| ER1-ES60 | 9 mph |
| ER1-ES80 | 9 mph |
| Model Number | Gradeability |
|---|---|
| ER1-ES60 | 8% |
| ER1-ES80 | 8% |
| Model Number | Voltage |
|---|---|
| ER1-ES60 | 24 V |
| ER1-ES80 | 24 V |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
Specifications
LOAD CAPACITY
FULL LOAD TRAVEL SPEED
VOLTAGE
Overview
The Toyota Enclosed End Rider provides high performance for demanding tasks, superior maneuverability in tight spaces, and a stability system for safety. Its design also includes specific advantages, such as a lift height travel interlock for training, and optional cold storage protection for component durability.
Performance
- 24 V electrical system
- AC drive motor
- Regenerative plugging
- Heavy-duty spring-loaded casters
- Hour meter indicator
- Horn
- UL Approved Type E
Ergonomics
- Cushioned knee, hip pads and operator backrest
- Programmable performance
- Startup and run-time diagnostics
- Electric power steering
- Multifunction control handle
- Angled hand grips
- Soft-cushioned floor mat
- Low-profile operator presence pedal
- Fork height travel interlock
- Storage tray
Safety Features
- Emergency power disconnect
- Electric disc brake
- Automatic parking brake
- Battery discharge indicator with lift interrupt
- Speed reduction in turns
- Anti-roll back
- Automatic drive tire centering at startup
Ease of Service
- Large battery compartment
Options
