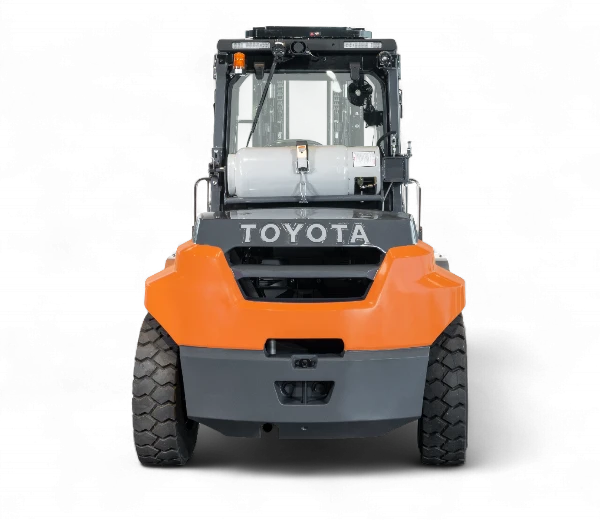

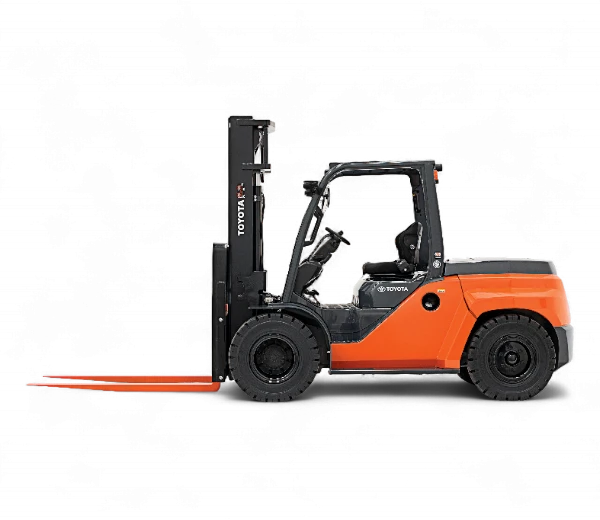

Toyota Large IC Outdoor Forklift
For Lumberyards & Construction Sites, Lift to 17,500 Pounds
The Toyota Large IC Outdoor Forklift can lift to 17,500 pounds and easily navigates gravel, dirt, and asphalt. Popular on construction sites, lumber yards, brick and stone distribution centers, specialized warehouses, and heavy-duty manufacturing plants, this large, heavy-duty forklift is engineered to be extremely durable and efficient in all conditions.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Full Load Max. Travel Speed | Full Load Max. Lift Speed | Full Load Max. Gradeability | Basic Right Angle Stack** | Fuel |
|---|---|---|---|---|---|---|
| 8FD60U | 13,500 lbs | 11.8 mph | 81 fpm | 34% | 150" | Diesel |
| 8FG60U | 13,500 lbs | 11.8 mph | 81 fpm | 34% | 150" | LPG |
| 8FD70U | 15,500 lbs | 11.8 mph | 81 fpm | 30% | 152" | Diesel |
| 8FG70U | 15,500 lbs | 11.8 mph | 81 fpm | 30% | 152" | LPG |
| 8FD80U | 17,500 lbs | 11.8 mph | 73 fpm | 26% | 154" | Diesel |
| 8FG80U | 17,500 lbs | 11.8 mph | 81 fpm | 26% | 154" | LPG |
| Model Number | Load Capacity |
|---|---|
| 8FD60U | 13,500 lbs |
| 8FG60U | 13,500 lbs |
| 8FD70U | 15,500 lbs |
| 8FG70U | 15,500 lbs |
| 8FD80U | 17,500 lbs |
| 8FG80U | 17,500 lbs |
| Model Number | Full Load Max. Travel Speed |
|---|---|
| 8FD60U | 11.8 mph |
| 8FG60U | 11.8 mph |
| 8FD70U | 11.8 mph |
| 8FG70U | 11.8 mph |
| 8FD80U | 11.8 mph |
| 8FG80U | 11.8 mph |
| Model Number | Full Load Max. Lift Speed |
|---|---|
| 8FD60U | 81 fpm |
| 8FG60U | 81 fpm |
| 8FD70U | 81 fpm |
| 8FG70U | 81 fpm |
| 8FD80U | 73 fpm |
| 8FG80U | 81 fpm |
| Model Number | Full Load Max. Gradeability |
|---|---|
| 8FD60U | 34% |
| 8FG60U | 34% |
| 8FD70U | 30% |
| 8FG70U | 30% |
| 8FD80U | 26% |
| 8FG80U | 26% |
| Model Number | Basic Right Angle Stack** |
|---|---|
| 8FD60U | 150" |
| 8FG60U | 150" |
| 8FD70U | 152" |
| 8FG70U | 152" |
| 8FD80U | 154" |
| 8FG80U | 154" |
| Model Number | Fuel |
|---|---|
| 8FD60U | Diesel |
| 8FG60U | LPG |
| 8FD70U | Diesel |
| 8FG70U | LPG |
| 8FD80U | Diesel |
| 8FG80U | LPG |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
Specifications
LOAD CAPACITY
FULL LOADTRAVEL SPEED
FUEL
Overview
Lifting up to 17,500 lbs., the Large IC Pneumatic forklift is a workhorse when lifting lumber, bricks, piping and other heavy materials. Powered by gasoline or diesel fuel, this forklift can handle the most difficult conditions.
Performance
- CAN bus communication
- Moisture-resistant electric connectors
- EPA/CARB certified engines
- Integrated monitoring system
- Integrated headlight and turn signal lever
- Dual drive tires
Ergonomics
- Dash-mounted instrument display
- 11.8″ diameter two-spoke steering wheel
- Load-sensing power steering
- Cowl-mount hydraulic control levers
- 12″ dual operator assist grips
- Low wide-entry steps
- 4-way adjustable vinyl full-suspension seat
Safety Features
- System of Active Stability (SAS)
- Operator Presence Sensing System (OPSS)
- Bolt-on overhead guard
- Key lowering interlock
- Electric horn
- Neutral start safety switch
Ease of Service
- Easy access no-tools floorboard
- Engine hood assist damper with lock device
- Air cleaner discharge valve
- Easy lift engine hood with wide 75° opening
- Easy access to common service items such as filters & dipsticks
Options
