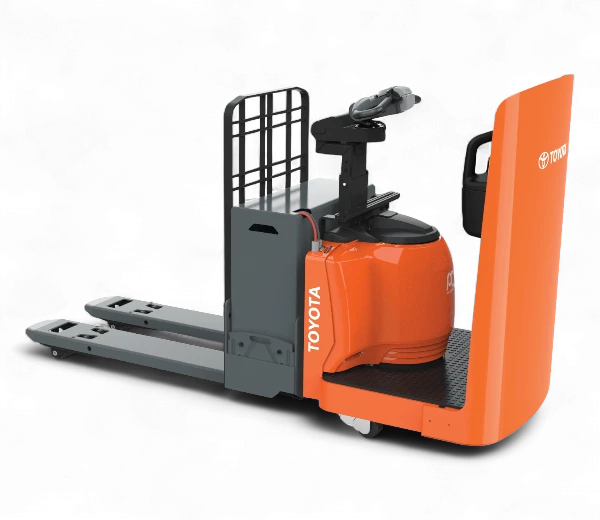

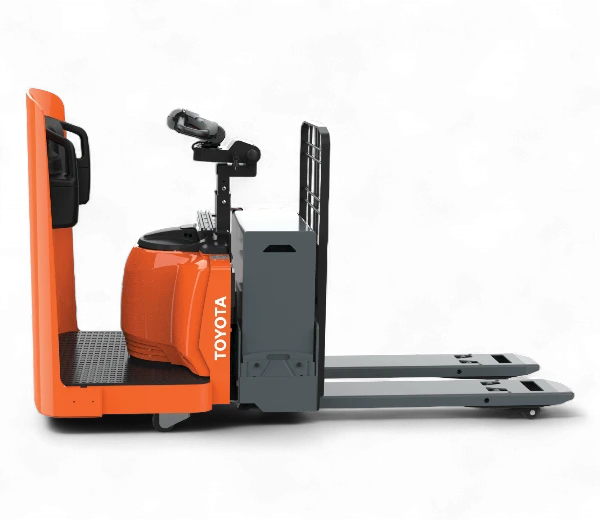

Toyota Side-Entry End Rider
Best-in-Class Turning Radius
The Toyota Side-Entry End Rider is ergonomically friendly, equipped with standard power steering, and easy pallet entry and exit, to get the job done. The Side-Entry End Rider assists operators with speed reduction in turns, making it easier to transport loads when cornering, ideal for a combination of applications.
Trust Toyota’s Side-Entry End Rider to be the perfect truck for dock work, cross-warehouse hauling, and low-level order picking.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Width | Length | Travel Speed | Gradeability | Voltage |
|---|---|---|---|---|---|---|
| ER1-EF60 | 6,000 lbs | 22-27.5" | 84.6-155.4" | 9 mph | 10% | 24 V |
| ER1-EF80 | 8,000 lbs | 27.5" | 88.6-196.4" | 9 mph | 10% | 24 V |
| Model Number | Load Capacity |
|---|---|
| ER1-EF60 | 6,000 lbs |
| ER1-EF80 | 8,000 lbs |
| Model Number | Width |
|---|---|
| ER1-EF60 | 22-27.5" |
| ER1-EF80 | 27.5" |
| Model Number | Length |
|---|---|
| ER1-EF60 | 84.6-155.4" |
| ER1-EF80 | 88.6-196.4" |
| Model Number | Travel Speed |
|---|---|
| ER1-EF60 | 9 mph |
| ER1-EF80 | 9 mph |
| Model Number | Gradeability |
|---|---|
| ER1-EF60 | 10% |
| ER1-EF80 | 10% |
| Model Number | Voltage |
|---|---|
| ER1-EF60 | 24 V |
| ER1-EF80 | 24 V |
*Based on 24″ load center
**Add load length and clearance Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
Specifications
LOAD CAPACITY
FULL LOAD TRAVEL SPEED
VOLTAGE
Overview
The Toyota Side-Entry End Rider is designed for high performance, comfort, and uptime with components like an AC drive motor and electric disc brakes. A best-in-class turning radius, combined with speed reduction during turns, allows for efficient handling of loads in tight spaces and during high-speed transport.
Standard features like an automatic parking brake prevent unintended movement, and a forward-facing operator position provides a clear line of sight.
Performance
- 24 V electrical system
- AC drive motor
- Regenerative plugging
- Start up and run time diagnostics
- Heavy-duty spring-loaded casters
- Hour meter indicator
- Horn
- Power steering
- UL Approved Type “E” Construction
Ergonomics
- Cushioned operator backrest
- Programmable performance
- Multifunction control handle
- Angled handgrips
- Soft-cushioned floor mat
Safety Features
- Operator sensing floor mat
- Speed reduction
- Emergency power disconnect
- Automatic parking brake
- Battery discharge indicator with lift interrupt
Ease of Service
- Dual lift cylinders
- Steel pull rods
- Stainless steel lift pins
- Fork Lift of 6″
- Natural rubber drive tire
- Large battery compartment
Options
