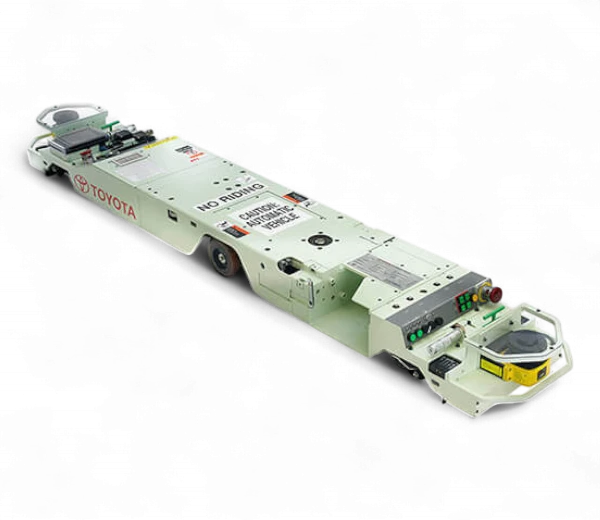

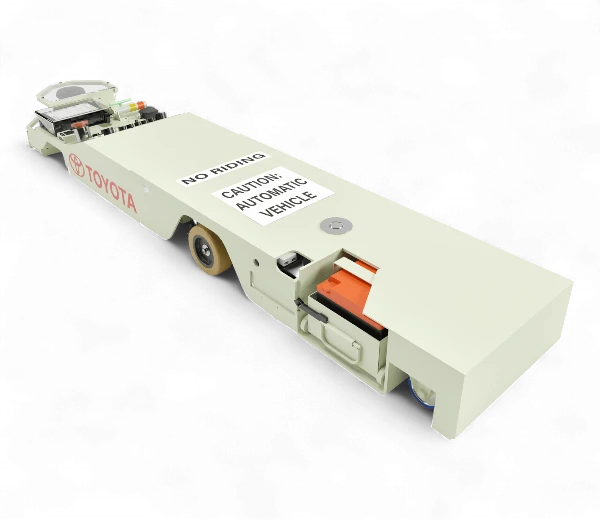

Toyota Tug-Cart Mole/Mouse Autonomous Vehicle Forklift
Your Pathway to Increased Productivity
Toyota’s Mole/Mouse AGV fits into tight areas, shares aisles with pedestrians and forklift traffic, and adapts easily to future change. Efficient, dependable, and versatile, it’s a cost-effective way to optimize your manufacturing and assembly line processes through automation.
Specs
| Model Number | Max Weight Capacity | Max Travel Speed | Min Turning Radius | Travel Direction | Max Drawbar |
|---|---|---|---|---|---|
| 3AS1T | 881 lbs | 45 m / min | 24" | Forward | 42 lbs |
| 3A10T | 2204 lbs | 45 m / min | 24" | Forward | 116 lbs |
| 3A15T | 3306 lbs | 33 m / min | 24" | Forward | 152 lbs |
| 3A20T | 4409 lbs | 20 m / min | 24" | Forward | 185 lbs |
| 3AB10T | 2204 lbs | 45 m / min | 24" | Forward & Reverse | 112 lbs |
| 3AB15T | 3306 lbs | 33 m / min | 24" | Forward & Reverse | 152 lbs |
| Model Number | Max Weight Capacity |
|---|---|
| 3AS1T | 881 lbs |
| 3A10T | 2204 lbs |
| 3A15T | 3306 lbs |
| 3A20T | 4409 lbs |
| 3AB10T | 2204 lbs |
| 3AB15T | 3306 lbs |
| Model Number | Max Travel Speed |
|---|---|
| 3AS1T | 45 m / min |
| 3A10T | 45 m / min |
| 3A15T | 33 m / min |
| 3A20T | 20 m / min |
| 3AB10T | 45 m / min |
| 3AB15T | 33 m / min |
| Model Number | Min Turning Radius |
|---|---|
| 3AS1T | 24" |
| 3A10T | 24" |
| 3A15T | 24" |
| 3A20T | 24" |
| 3AB10T | 24" |
| 3AB15T | 24" |
| Model Number | Travel Direction |
|---|---|
| 3AS1T | Forward |
| 3A10T | Forward |
| 3A15T | Forward |
| 3A20T | Forward |
| 3AB10T | Forward & Reverse |
| 3AB15T | Forward & Reverse |
| Model Number | Max Drawbar |
|---|---|
| 3AS1T | 42 lbs |
| 3A10T | 116 lbs |
| 3A15T | 152 lbs |
| 3A20T | 185 lbs |
| 3AB10T | 112 lbs |
| 3AB15T | 152 lbs |
All specifications should be verified by an authorized Toyota dealer prior to purchase.
Overview
The benefits of adding the Toyota Tug-Cart Mouse AV include reduced employee errors, which can be dangerous and expensive; round-the-clock dependable performance; high-efficiency productivity and reliability; increased consistency; and ease of operation.
Performance
- LIDAR guidance
- 24 V electrical system
- Brushless motors with dedicated drivers
- Tricycle steering method with differential traction wheels
- Feature map with virtual path planning and devices
Ergonomics
- Eliminate strenuous, repetitive tasks
- Minimizes walking and transit
- Touchscreen display
- Low-profile design
Safety Features
- Simple override process
- Enhanced control in manual mode
Ease of Service
- Brushless motor
- Modular design
- Durable guide tape
- Automated battery charging
Options
Auto Power Off
Battery conservation
Breakaway Pigtail Connection
Protects equipment, prevents injury, and minimizes downtime
Additional Battery Tray
System stability
Automatic Charging Station
Convenient and efficient
