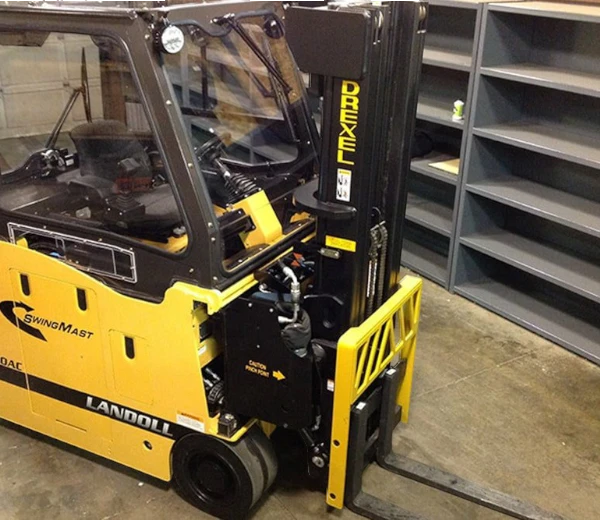

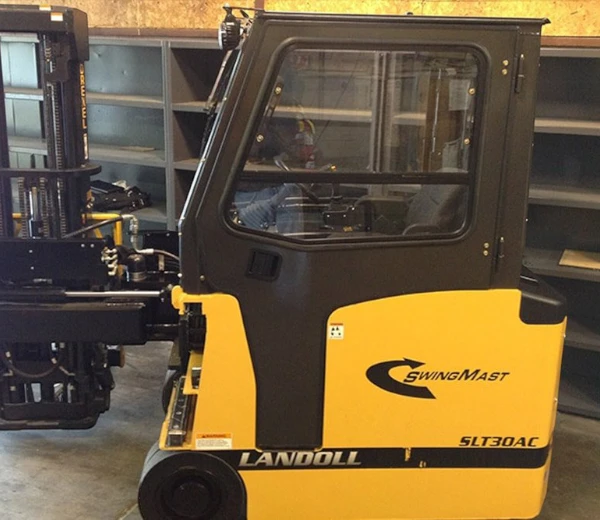

Drexel 3-Wheel Very Narrow Aisle Swingmast Forklift
Easy Stacking in Very Narrow Aisles
The Drexel SLT30AC and SLT35AC are 3-wheel front and side loading very narrow aisle forklifts with a single smooth rubber rear-drive steer tire and solid poly-front load tires. The front mast rotates 90° and has a side shift of 20 inches.
These forklifts can operate both indoors and outdoors on paved surfaces, performing tasks similar to those of a standard front-loading forklift.
Specs
| Model Number | Load Capacity | Maximum Travel Speed Unloaded | Maximum Travel Speed Loaded | Minimum Aisle Clearance |
|---|---|---|---|---|
| SLT30AC | 3,000 lbs | 7 mph | 6 mph | 56" |
| SLT35AC | 3,500 lbs | 7 mph | 6 mph | 56" |
| Model Number | Load Capacity |
|---|---|
| SLT30AC | 3,000 lbs |
| SLT35AC | 3,500 lbs |
| Model Number | Maximum Travel Speed Unloaded |
|---|---|
| SLT30AC | 7 mph |
| SLT35AC | 7 mph |
| Model Number | Maximum Travel Speed Loaded |
|---|---|
| SLT30AC | 6 mph |
| SLT35AC | 6 mph |
| Model Number | Minimum Aisle Clearance |
|---|---|
| SLT30AC | 56" |
| SLT35AC | 56" |
* Based on 24″ load center.
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Landoll dealers retain the most current product specifications. All specifications should be verified by an authorized Landoll dealer prior to purchase.
Overview
The SLT30AC and SLT35AC have fast lift/lower and travel speeds with a tight turning radius, providing excellent maneuverability and productivity. The rollout battery compartment allows quick battery changes for multi-shift operations.
High-visibility three and four-stage masts are available for a wide range of applications, including those with low overhead obstructions still requiring high lift heights. Wire Guidance is a standard feature on this Series, allowing safe full-speed travel in the narrowest aisles.
Performance
- Single joystick controls hydraulic functions
- Electronic steering
- High-visibility mast
- 48 V electrical system
- Large capacity battery compartment
- Hydraulic service front wheel brakes
Ergonomics
- Adjustable swivel seat
Safety Features
- Electro/mechanical parking
- Seat belt
Ease of Service
- Interactive LCD status monitor
- AC traction
- Hydraulic motor
- Curtis AC controllers
Options
