Drexel 4-Wheel Very Narrow Aisle Swingmast Forklift

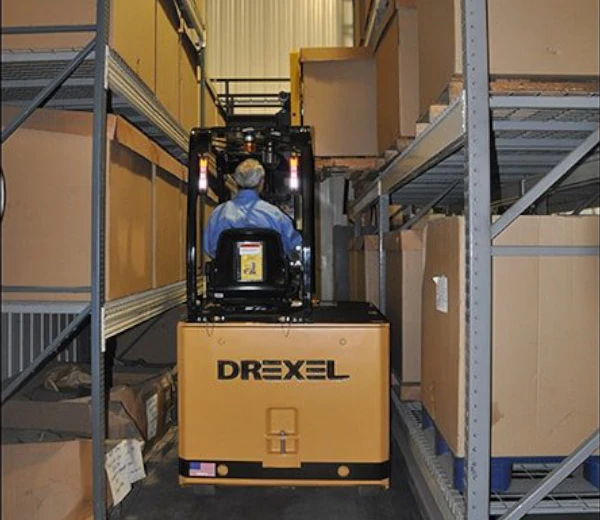

The Drexel 4-Wheel Very Narrow Aisle Swingmast Series works in aisles as narrow as 56″. With lift capacities from 3,000 to 5,000 pounds at a 24″ load center, and lift heights to 31′. Swingmast trucks perform the functions of reach trucks, counterbalanced, in aisles that are over 50% smaller—the ability to store and transport long loads as a side loader increases versatility and maximizes utilization.
Specs
| Model Number | Load Capacity | Minimum Aisle Width** |
|---|---|---|
| SL30AC | 3,000 lbs | 56" |
| SL40AC | 4,000 lbs | 56" |
| SL50AC | 5,000 lbs | 56" |
| Model Number | Load Capacity |
|---|---|
| SL30AC | 3,000 lbs |
| SL40AC | 4,000 lbs |
| SL50AC | 5,000 lbs |
| Model Number | Minimum Aisle Width** |
|---|---|
| SL30AC | 56" |
| SL40AC | 56" |
| SL50AC | 56" |
* Based on 24″ load center
** Add load length and clearance. Product specifications may not reflect the most current product details.
Overview
Drexel’s Swingmast forklift is versatile, working effectively both indoors and outdoors on paved surfaces. It can perform the typical functions of a front-loading and side-loading forklift, including loading and unloading highway trucks and containers, operating in bulk storage, drive-in racks, cantilever racks, push-back racks, double deep, and climbing steep ramps.
Performance
- 48 V electrical system
- Independently driven front-drive wheels
- Dual rear-steering wheels
- Large battery compartment
- Single joystick controls hydraulic functions
- Hydrostatic power steering
Ergonomics
- Adjustable swivel seat
Safety Features
- High visibility mast
Ease of Service
- Interactive LCD status monitor
- AC traction
- hydraulic motor
- Curtis AC controllers
Options
