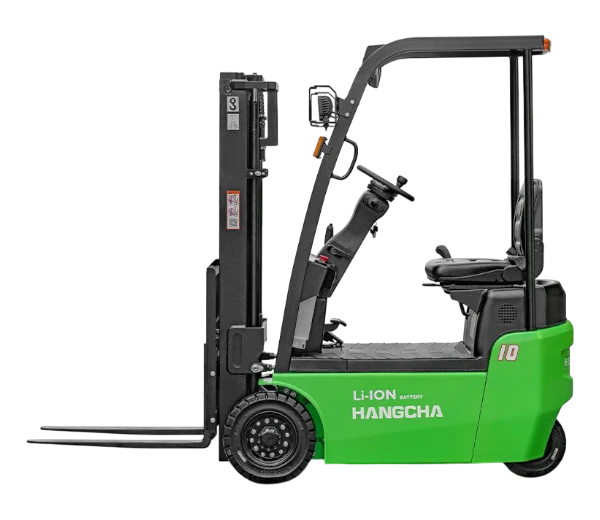

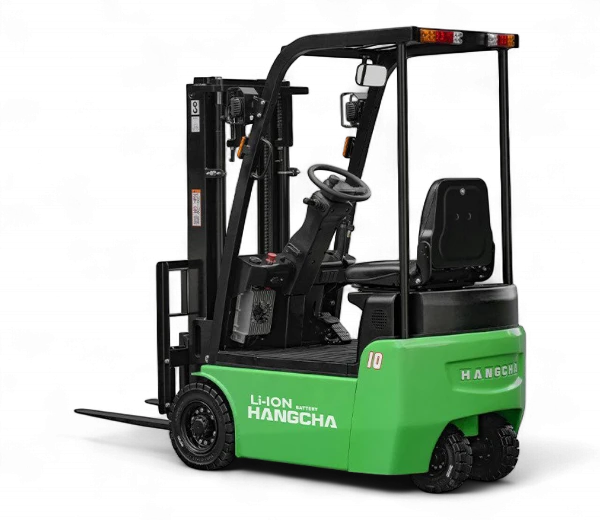

Hangcha X Series 3-Wheel Electric Indoor Lithium-Ion Forklift
Handling Materials in Narrow Aisles
Hangcha’s X Series 3-Wheel Electric forklifts with lithium-ion technology are highly efficient, light-load capacity, electric counterbalanced forklifts. With its compact structure, small turning radius, and lightweight design, the X Series forklift is ideal for narrow operation applications. Perfect for handling material between floors, to and from elevators, and inside warehouses, supermarkets, or workshops.
X Series has regenerative braking and reverse braking, and it will not roll back on a ramp, thanks to the controller. The controller provides a safer, more reliable, and efficient operational experience.
Specs
| Model Number | Load Capacity | Width | Height | Max Fork Height | Max Full Load Lift Speed | Max Full Load Gradeability | Voltage |
|---|---|---|---|---|---|---|---|
| FBT06Li | 1,000 lbs | 33" | 69" | 99" | 41.3 fpm | 12% | 24 V |
| FBT08Li | 1,350 lbs | 36" | 69" | 99" | 49.2 fpm | 12% | 24 V |
| FBT10Li | 1,700 lbs | 36" | 69" | 99" | 47.2 fpm | 12% | 24 V |
| Model Number | Load Capacity |
|---|---|
| FBT06Li | 1,000 lbs |
| FBT08Li | 1,350 lbs |
| FBT10Li | 1,700 lbs |
| Model Number | Width |
|---|---|
| FBT06Li | 33" |
| FBT08Li | 36" |
| FBT10Li | 36" |
| Model Number | Height |
|---|---|
| FBT06Li | 69" |
| FBT08Li | 69" |
| FBT10Li | 69" |
| Model Number | Max Fork Height |
|---|---|
| FBT06Li | 99" |
| FBT08Li | 99" |
| FBT10Li | 99" |
| Model Number | Max Full Load Lift Speed |
|---|---|
| FBT06Li | 41.3 fpm |
| FBT08Li | 49.2 fpm |
| FBT10Li | 47.2 fpm |
| Model Number | Max Full Load Gradeability |
|---|---|
| FBT06Li | 12% |
| FBT08Li | 12% |
| FBT10Li | 12% |
| Model Number | Voltage |
|---|---|
| FBT06Li | 24 V |
| FBT08Li | 24 V |
| FBT10Li | 24 V |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Hangcha dealers retain the most current product specifications. All specifications should be verified by an authorized Hangcha dealer prior to purchase.
Overview
The Hangcha X Series 3-wheel Electric forklift is designed for efficiency and productivity in demanding operational environments. It is a compact, lightweight, and highly maneuverable solution for narrow-aisle applications like warehouses and supermarkets. Key features include fast charging times, longer run times, maintenance-free operation, a small turning radius for tight spaces, and advanced safety systems like fork descent buffering and high-level IP-rated protection for electronic components.
Performance
- Dual front AC-driving motors
- Built-in charger
- Energy-saving and durable LED lights
Ergonomics
- Large operation space
- Electric power steering
- Adjustable steering wheel column
- Adjustable seat
- Multi-way valve positioned close to the operator
Safety Features
- Low center of gravity and good stability
- Good turning stability
- Patterned rubber tires on front wheels
- Wide-view mast
- Emergency cut-off switch
- Electronic and hydraulic overload protection systems
Ease of Service
- Maintenance-free AC motor
- MOSFET integrated control system
- LED instrument display
Options
