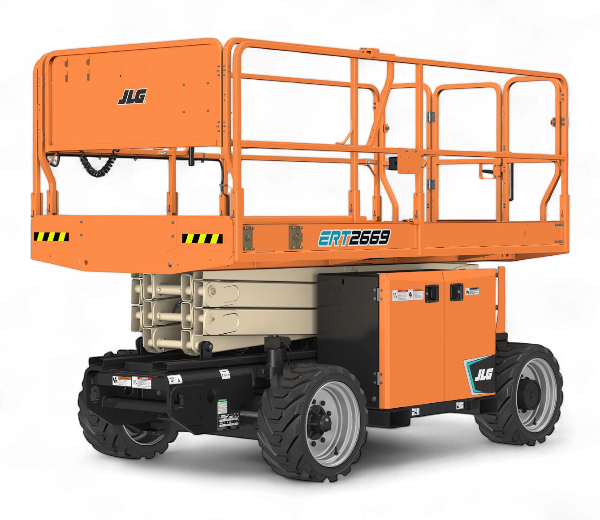

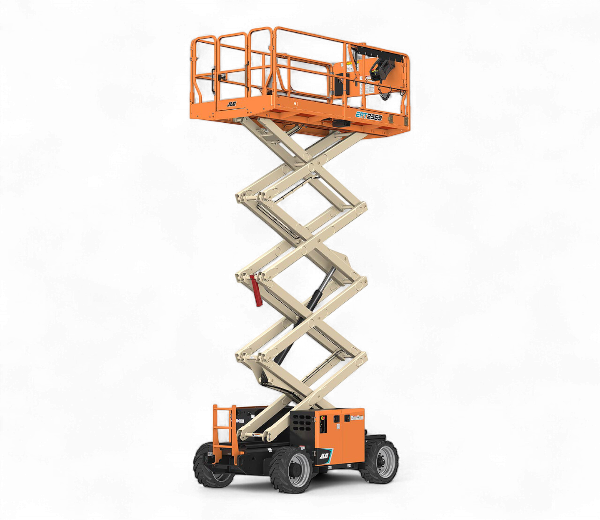

JLG ERT Series Aerial Lift
Rough Terrain Scissor Lift
The JLG ERT Series is an electric-powered rough-terrain scissor lift line designed for productivity and serviceability. Key features include drive-at-height capability, the largest platform size in its class, and an AC drive system that requires no maintenance. A92.20 compliant.
Specs
| Model Number | Capacity | Machine Width | Machine Length | Machine Height | Platform Height | Max Speed | Platform Size |
|---|---|---|---|---|---|---|---|
| ERT2669 | 1500 lbs | 5' 9" | 11' 7" | 8' 1" | 26' 2" | 3.5 mph | 126 x 57" |
| ERT3369 | 1000 lbs | 5' 9" | 11' 7" | 8' 1" | 32' 8" | 3.5 mph | 126 x 57" |
| ERT4069 | 800 lbs | 5' 9" | 11' 7" | 8' 1" | 40' 3" | 3.5 mph | 126 x 57" |
| ERT4769 | 800 lbs | 5' 9" | 11' 7" | 9' 1" | 47' | 3.5 mph | 126 x 57" |
| Model Number | Capacity |
|---|---|
| ERT2669 | 1500 lbs |
| ERT3369 | 1000 lbs |
| ERT4069 | 800 lbs |
| ERT4769 | 800 lbs |
| Model Number | Machine Width |
|---|---|
| ERT2669 | 5' 9" |
| ERT3369 | 5' 9" |
| ERT4069 | 5' 9" |
| ERT4769 | 5' 9" |
| Model Number | Machine Length |
|---|---|
| ERT2669 | 11' 7" |
| ERT3369 | 11' 7" |
| ERT4069 | 11' 7" |
| ERT4769 | 11' 7" |
| Model Number | Machine Height |
|---|---|
| ERT2669 | 8' 1" |
| ERT3369 | 8' 1" |
| ERT4069 | 8' 1" |
| ERT4769 | 9' 1" |
| Model Number | Platform Height |
|---|---|
| ERT2669 | 26' 2" |
| ERT3369 | 32' 8" |
| ERT4069 | 40' 3" |
| ERT4769 | 47' |
| Model Number | Max Speed |
|---|---|
| ERT2669 | 3.5 mph |
| ERT3369 | 3.5 mph |
| ERT4069 | 3.5 mph |
| ERT4769 | 3.5 mph |
| Model Number | Platform Size |
|---|---|
| ERT2669 | 126 x 57" |
| ERT3369 | 126 x 57" |
| ERT4069 | 126 x 57" |
| ERT4769 | 126 x 57" |
Product specifications may not reflect the most current product details. Authorized JLG dealers retain the most current product specifications. All specifications should be verified by an authorized JLG dealer prior to purchase.
Overview
JLG’s ERT Series is engineered to handle challenging projects and can be driven while elevated, improving efficiency. It is ideally suited for early-stage construction projects, construction tasks, and any indoor or outdoor application requiring movement over uneven surfaces.
Performance
- Electric-powered with drive capability at full height
- Large platform
- LCD control box with LiftSense
- Maintenance-free 2WD AC drive system
Ergonomics
- Large, spacious platform
- Zero-platform offset
- Foldable rails
- Built-in USB charging port
Safety Features
- LiftSense Technology
- LCD screen
- Foldable rails
- Guard rails
Ease of Service
- AC drive motor
- Advanced diagnostics
- Simplified design
