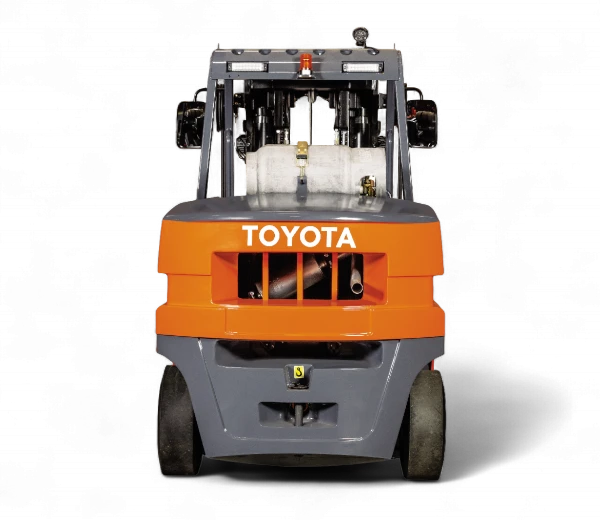

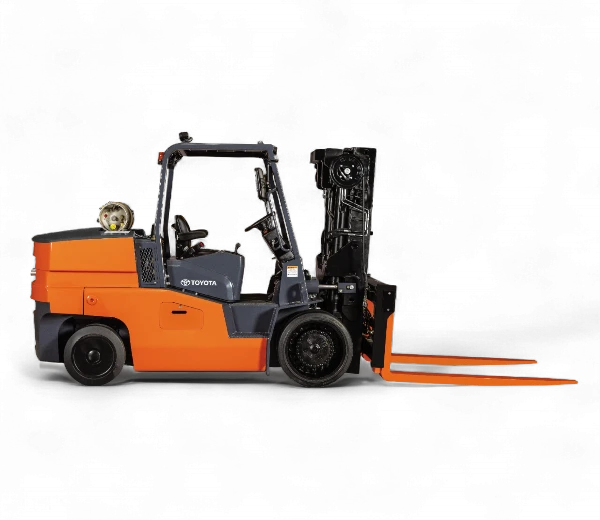

Toyota High-Capacity Large IC Indoor Forklift
Super Strong & Dependable
Not all heavy lifting happens outside; sometimes hauling high-capacity loads is an inside job. The Toyota High-Capacity Large IC Cushion Forklift is an indoor mammoth of a machine. Ideal for automotive environments and for moving steel within manufacturing facilities, lifting to 100,000 pounds.
Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.
Specs
| Model Number | Load Capacity | Width | Height | Max Fork Height | Max Travel Speed | Load Center |
|---|---|---|---|---|---|---|
| THDC2500-24 | 25,000 lbs | 66" | 113" | 103" | 9.7 mph | 24" |
| THDC3000-24 | 30,000 lbs | 66" | 113" | 103" | 9.7 mph | 24" |
| THDC3500-24 | 35,000 lbs | 66" | 113" | 103" | 9.7 mph | 24" |
| THDC2500-30 | 25,000 lbs | 66" | 113" | 103" | 9.7 mph | 30" |
| THDC3000-30 | 30,000 lbs | 66" | 113" | 103" | 9.7 mph | 30" |
| THDC4000-30 | 40,000 lbs | 73" | 120" | 108" | 9.7 mph | 30" |
| THDC4500-30 | 45,000 lbs | 73" | 120" | 108" | 9.7 mph | 30" |
| THDC5000-30 | 50,000 lbs | 77" | 119" | 100" | 10.3 mph | 30" |
| THDC3000-36 | 30,000 lbs | 66" | 113" | 103" | 9.7 mph | 36" |
| THDC4000-36 | 40,000 lbs | 73" | 120" | 108" | 9.7 mph | 36" |
| THDC4500-36 | 45,000 lbs | 77" | 119" | 100" | 10.3 mph | 36" |
| THDC5000-36 | 50,000 lbs | 77" | 119" | 100" | 10.3 mph | 36" |
| THDC5500-36 | 55,000 lbs | 77" | 119" | 100" | 10.3 mph | 36" |
| Model Number | Load Capacity |
|---|---|
| THDC2500-24 | 25,000 lbs |
| THDC3000-24 | 30,000 lbs |
| THDC3500-24 | 35,000 lbs |
| THDC2500-30 | 25,000 lbs |
| THDC3000-30 | 30,000 lbs |
| THDC4000-30 | 40,000 lbs |
| THDC4500-30 | 45,000 lbs |
| THDC5000-30 | 50,000 lbs |
| THDC3000-36 | 30,000 lbs |
| THDC4000-36 | 40,000 lbs |
| THDC4500-36 | 45,000 lbs |
| THDC5000-36 | 50,000 lbs |
| THDC5500-36 | 55,000 lbs |
| Model Number | Width |
|---|---|
| THDC2500-24 | 66" |
| THDC3000-24 | 66" |
| THDC3500-24 | 66" |
| THDC2500-30 | 66" |
| THDC3000-30 | 66" |
| THDC4000-30 | 73" |
| THDC4500-30 | 73" |
| THDC5000-30 | 77" |
| THDC3000-36 | 66" |
| THDC4000-36 | 73" |
| THDC4500-36 | 77" |
| THDC5000-36 | 77" |
| THDC5500-36 | 77" |
| Model Number | Height |
|---|---|
| THDC2500-24 | 113" |
| THDC3000-24 | 113" |
| THDC3500-24 | 113" |
| THDC2500-30 | 113" |
| THDC3000-30 | 113" |
| THDC4000-30 | 120" |
| THDC4500-30 | 120" |
| THDC5000-30 | 119" |
| THDC3000-36 | 113" |
| THDC4000-36 | 120" |
| THDC4500-36 | 119" |
| THDC5000-36 | 119" |
| THDC5500-36 | 119" |
| Model Number | Max Fork Height |
|---|---|
| THDC2500-24 | 103" |
| THDC3000-24 | 103" |
| THDC3500-24 | 103" |
| THDC2500-30 | 103" |
| THDC3000-30 | 103" |
| THDC4000-30 | 108" |
| THDC4500-30 | 108" |
| THDC5000-30 | 100" |
| THDC3000-36 | 103" |
| THDC4000-36 | 108" |
| THDC4500-36 | 100" |
| THDC5000-36 | 100" |
| THDC5500-36 | 100" |
| Model Number | Max Travel Speed |
|---|---|
| THDC2500-24 | 9.7 mph |
| THDC3000-24 | 9.7 mph |
| THDC3500-24 | 9.7 mph |
| THDC2500-30 | 9.7 mph |
| THDC3000-30 | 9.7 mph |
| THDC4000-30 | 9.7 mph |
| THDC4500-30 | 9.7 mph |
| THDC5000-30 | 10.3 mph |
| THDC3000-36 | 9.7 mph |
| THDC4000-36 | 9.7 mph |
| THDC4500-36 | 10.3 mph |
| THDC5000-36 | 10.3 mph |
| THDC5500-36 | 10.3 mph |
| Model Number | Load Center |
|---|---|
| THDC2500-24 | 24" |
| THDC3000-24 | 24" |
| THDC3500-24 | 24" |
| THDC2500-30 | 30" |
| THDC3000-30 | 30" |
| THDC4000-30 | 30" |
| THDC4500-30 | 30" |
| THDC5000-30 | 30" |
| THDC3000-36 | 36" |
| THDC4000-36 | 36" |
| THDC4500-36 | 36" |
| THDC5000-36 | 36" |
| THDC5500-36 | 36" |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.
Specifications
LOAD CAPACITY
FULL LOAD TRAVEL SPEED
FUEL
Overview
Toyota’s High-Capacity Large IC Indoor Forklifts, often referred to as Large IC Cushion Forklifts, are powerful, robust internal combustion (IC) forklifts designed for heavy-duty indoor lifting, with load capacities ranging from approximately 100,000 pounds and up. These forklifts feature cushion tires, powerful V8 engines, and safety systems such as the Operator Presence Sensing System (OPSS), providing reliable material handling of hefty loads indoors.
Performance
- PSI 5.7L V8 engine
- Dana TE-14 series transmission
- Independent brake & inching pedals
- Full hydraulic power steering
- Warning light for parking brake
- Lift & lashing points
- Illuminated digital instrument display
Ergonomics
- Mast mounted LED Headlights
- LED rear combination lights (2)
- Finger-tip hydraulic controls
- Tilt steering column
- Left-hand shift lever
- Long operator assist grips
- Vinyl adjustable semi-suspension seat
- Hand-actuated disc-type parking brake
- Low-height non-skid
Safety Features
- Operator Presence Sensing System (OPSS)
- Electrical horn
- Asbestos-free components
- Neutral safety switch
- Integrated overhead guard
- Operator restraint system seat
- Orange forks
Ease of Service
- Easy-access service panels
- Hydraulic pumps, hoses, tubes, and wiring harnesses are accessible and easy to inspect
- Hydraulic multi-gauge
- Chrome-plated rods (lift, tilt and steer cylinders) for easy seal replacement
- Parker pumps, valves, and seals
- O-ring face seal fittings on the entire hydraulic system
- Electrical box located inside the cab
- Color-coded wires enclosed with split-tubing wire-loom wrap
- Anti-restart ignition switch
- Fully sealed headlights and auxiliary lights
- Low chassis side plate allows easy access to the drive train
- Swing-out LP tank brackets (2)
- Hinged side doors provide excellent access to the engine compartment
