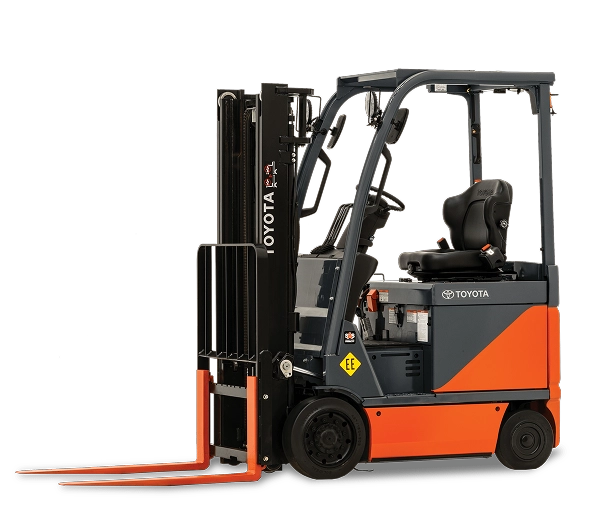

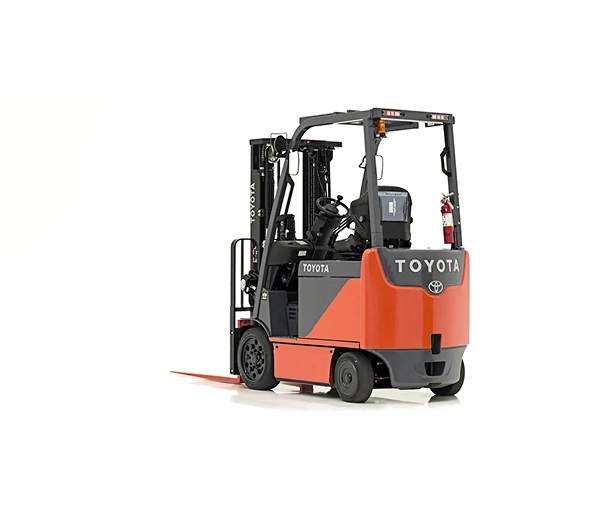

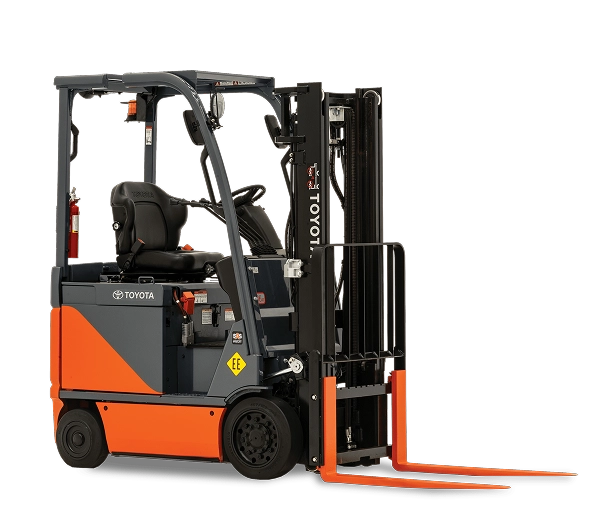

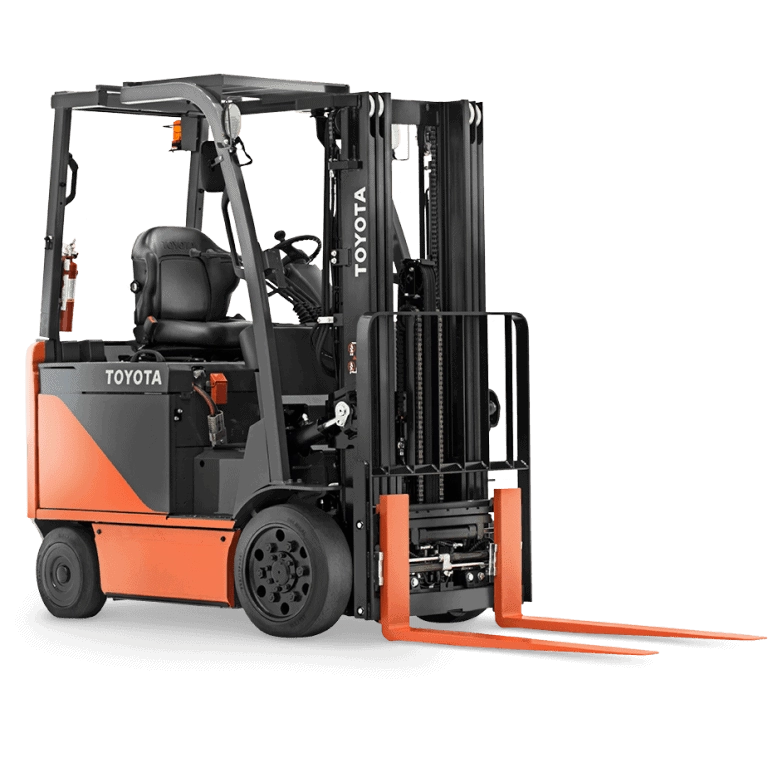

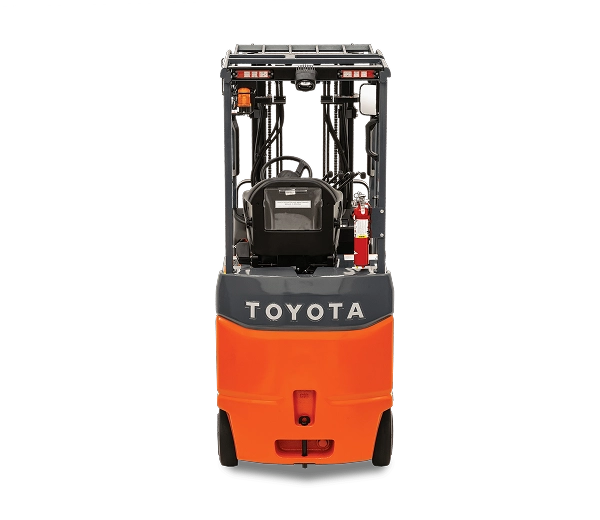

Toyota Core Electric Forklift

Award Winning

The Toyota Core Electric Forklift is an ideal compact four-wheel electric lift truck solution for most indoor and warehouse applications. The Core Electric Forklift is capable of moving almost any load while maintaining the ability to operate in spaces as small as 11 feet wide. The AC motor offers new levels of performance, efficiency, and reliability, maximizing your productivity and return on investment.

Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.

Request a Quote

Toyota Core Electric Brochure Toyota Core Electric Spec Sheet

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Max. Travel Speed Full Load	Max. Lift Speed Full Load	Max. Gradeability Full Load	Basic Right Angle Stack**
8FBC15U	3,000 lbs	36 V: 9.0 mph / 48 V: 10.9 mph	36 V: 61 fpm / 48 V: 85 fpm	36 V: 20% / 48 V: 21%	82.1"
8FBC18U	3,500 lbs	36 V: 8.7 mph / 48 V: 10.6 mph	36 V: 61 fpm / 48 V: 81 fpm	36 V: 18% / 48 V: 20%	82.1"
8FBCU20	4,000 lbs	36 V: 9.9 mph / 48 V: 11.5 mph	36 V: 67 fpm / 48 V: 89 fpm	36 V: 25% / 48 V: 23%	87.2"
8FBCU20-COMP	4,000 lbs	36 V: 9.9 mph / 48 V: 11.5 mph	36 V: 67 fpm / 48 V: 89 fpm	36 V: 25% / 48 V: 23%	85.2"
8FBCU25	5,000 lbs	36 V: 9.9 mph / 48 V: 11.5 mph	36 V: 59 fpm / 48 V: 79 fpm	36 V: 21% / 48 V: 19%	87.6"
8FBCU25-COMP	5,000 lbs	36 V: 9.9 mph / 48 V: 11.5 mph	36 V: 59 fpm / 48 V: 79 fpm	36 V: 21% / 48 V: 19%	85.6"
8FBCHU25	5,000 lbs	36 V: 9.9 mph / 48 V: 11.5 mph	36 V: 59 fpm / 48 V: 79 fpm	36 V: 21% / 48 V: 24%	93.1"
8FBCU28	5,500 lbs	36 V: 9.3 mph / 48 V: 11.5 mph	36 V: 55 fpm / 48 V: 73 fpm	36 V: 17% / 48 V: 20%	90.3"
8FBCU30	6,000 lbs	36 V: 9.0 mph / 48 V: 11.2 mph	36 V: 51 fpm / 48 V: 69 fpm	36 V: 17% / 48 V: 20%	94.9"
8FBCU32	6,500 lbs	36 V: 9.0 mph / 48 V: 11.2 mph	36 V: 47 fpm / 48 V: 65 fpm	36 V: 17% / 48 V: 19%	96.4"

Model Number	Load Capacity
8FBC15U	3,000 lbs
8FBC18U	3,500 lbs
8FBCU20	4,000 lbs
8FBCU20-COMP	4,000 lbs
8FBCU25	5,000 lbs
8FBCU25-COMP	5,000 lbs
8FBCHU25	5,000 lbs
8FBCU28	5,500 lbs
8FBCU30	6,000 lbs
8FBCU32	6,500 lbs

Model Number	Max. Travel Speed Full Load
8FBC15U	36 V: 9.0 mph / 48 V: 10.9 mph
8FBC18U	36 V: 8.7 mph / 48 V: 10.6 mph
8FBCU20	36 V: 9.9 mph / 48 V: 11.5 mph
8FBCU20-COMP	36 V: 9.9 mph / 48 V: 11.5 mph
8FBCU25	36 V: 9.9 mph / 48 V: 11.5 mph
8FBCU25-COMP	36 V: 9.9 mph / 48 V: 11.5 mph
8FBCHU25	36 V: 9.9 mph / 48 V: 11.5 mph
8FBCU28	36 V: 9.3 mph / 48 V: 11.5 mph
8FBCU30	36 V: 9.0 mph / 48 V: 11.2 mph
8FBCU32	36 V: 9.0 mph / 48 V: 11.2 mph

Model Number	Max. Lift Speed Full Load
8FBC15U	36 V: 61 fpm / 48 V: 85 fpm
8FBC18U	36 V: 61 fpm / 48 V: 81 fpm
8FBCU20	36 V: 67 fpm / 48 V: 89 fpm
8FBCU20-COMP	36 V: 67 fpm / 48 V: 89 fpm
8FBCU25	36 V: 59 fpm / 48 V: 79 fpm
8FBCU25-COMP	36 V: 59 fpm / 48 V: 79 fpm
8FBCHU25	36 V: 59 fpm / 48 V: 79 fpm
8FBCU28	36 V: 55 fpm / 48 V: 73 fpm
8FBCU30	36 V: 51 fpm / 48 V: 69 fpm
8FBCU32	36 V: 47 fpm / 48 V: 65 fpm

Model Number	Max. Gradeability Full Load
8FBC15U	36 V: 20% / 48 V: 21%
8FBC18U	36 V: 18% / 48 V: 20%
8FBCU20	36 V: 25% / 48 V: 23%
8FBCU20-COMP	36 V: 25% / 48 V: 23%
8FBCU25	36 V: 21% / 48 V: 19%
8FBCU25-COMP	36 V: 21% / 48 V: 19%
8FBCHU25	36 V: 21% / 48 V: 24%
8FBCU28	36 V: 17% / 48 V: 20%
8FBCU30	36 V: 17% / 48 V: 20%
8FBCU32	36 V: 17% / 48 V: 19%

Model Number	Basic Right Angle Stack**
8FBC15U	82.1"
8FBC18U	82.1"
8FBCU20	87.2"
8FBCU20-COMP	85.2"
8FBCU25	87.6"
8FBCU25-COMP	85.6"
8FBCHU25	93.1"
8FBCU28	90.3"
8FBCU30	94.9"
8FBCU32	96.4"

* Based on 24″ load center
** Add load length and clearance Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.

Load Capacity

3,000 – 4,000 LBS

Full Load Travel Speed

9.7 – 10.2 MPH

VOLTAGE

36 / 48 V

Request a Quote

Overview

The Toyota Core Electric Forklift is an efficient, compact, four-wheel electric lift truck ideal for most indoor and warehouse applications, capable of handling loads up to 6,500 pounds. Key features include Toyota-designed AC motors for performance and efficiency, ergonomic controls for operator comfort, and safety systems like System of Active Stability (SAS) to prevent tip-overs. The forklift also offers various options, including narrow aisle models, and safety enhancements such as SEnS+ (Smart Environment Sensor Plus) and automatic slope assist.

Performance

AC drive system
UL Approved Type E
Three forms of energy regeneration
Digital LCD multifunction display
Adjustable front headlights
Punched plate entry/exit step

Ergonomics

Strategically configured instrument display
On-demand hydrostatic power steering
Dual operator assist grips
11.8″ diameter two-spoke steering wheel
Cowl-mounted hydraulic controls
Heavy-duty non-slip floor mat
Electric directional shift control

Safety Features

System of Active Stability (SAS)
Operator Presence Sensing System (OPSS)
Bolt-on overhead guard
Key lowering interlock
Foot activated parking break
Manual return to neutral

Ease of Service

AC drive motor (no brushes or commutator)
Easy access hydraulic motor
Tool-less floorboard
Battery compartment hood assist
Planned maintenance indicator
Easy access controllers

					Options


							Planned Maintenance
								Reduce downtime, lower overall repair costs, and improve safety and compliance

							Narrow Aisle Turret Mast
								Rotating turret head enables stacking without needing to turn the forklift

							T-Matics Vehicle Management System
								Real-time monitoring of forklift usage, operator performance, and maintenance needs

							Short Model
								More compact for constricted areas

							Cold Storage Package
								Enclosed cabin and heaters

							EZ Pedal
								Change the direction of travel with your foot

							Mini Lever Controls with Ergoshift
								Single, ergonomic control unit with a forward/reverse directional switch

							Cascade Integral Sideshifter
								Enhanced capacity and operator visibility

							Active Steering Synchronizer
								Ensures the steering wheel is always aligned with the rear steer wheels

							Battery Slide-Out
								Improves safety, increases productivity by allowing the battery to be extracted horizontally

Get updates from Summit

Home Toyota Page 6

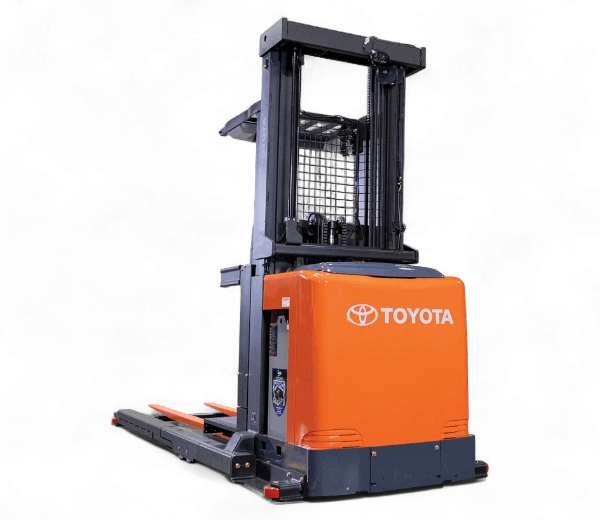

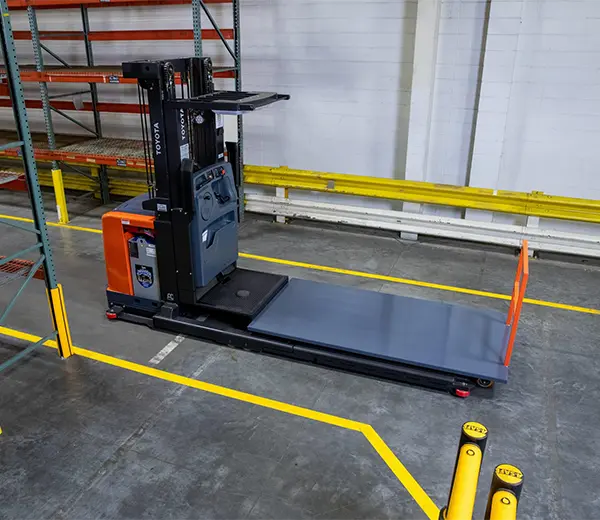

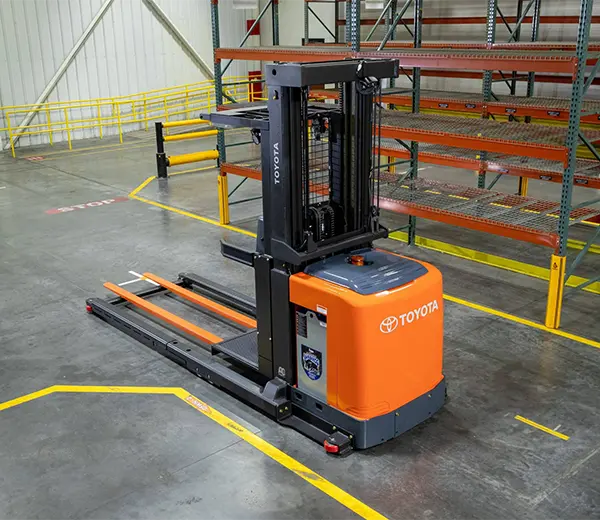

Toyota Furniture Order Picker Forklift

Designed for Handling Pallet-less Furniture in Warehouses

From couches to dining room tables, the Toyota Furniture Order Picker is designed to handle your pallet-less tasks. The Furniture Order Picker accommodates carts or furniture platforms and can lift a wide variety of large or bulky items. In addition to maximizing space and excellent performance, you’re getting a high-performance lift with superior ergonomics, enhanced visibility, and an all-around power player that can take your fleet to another level.

Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.

Request a Quote

Toyota Furniture Order Picker Brochure

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Max Lift Height	Baseleg Length	Voltage
8BPU15-507	1,600 lbs	366"	86.5"	24 V
8BPU15-528	1,600 lbs	366"	98.5"	24 V
8BPUH15-507	1,600 lbs	366"	86.5"	36 V
8BPUH15-528	1,600 lbs	366"	98.5"	36 V

Model Number	Load Capacity
8BPU15-507	1,600 lbs
8BPU15-528	1,600 lbs
8BPUH15-507	1,600 lbs
8BPUH15-528	1,600 lbs

Model Number	Max Lift Height
8BPU15-507	366"
8BPU15-528	366"
8BPUH15-507	366"
8BPUH15-528	366"

Model Number	Baseleg Length
8BPU15-507	86.5"
8BPU15-528	98.5"
8BPUH15-507	86.5"
8BPUH15-528	98.5"

Model Number	Voltage
8BPU15-507	24 V
8BPU15-528	24 V
8BPUH15-507	36 V
8BPUH15-528	36 V

*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

LOAD CAPACITY

1,600 LBS

BASELEG LENGTH

86 – 99"

TIRE TYPE

POLYURETHANE

Request a Quote

Overview

The Toyota Furniture Order Picker is an electric lift designed for efficiently handling large, bulky, pallet-less items like furniture in warehouses, offering features such as standard AC motors for smooth, efficient operation, a wide-view mast for better visibility.

Performance

AC drive motor
Variable lift and lower controls
High stacking capabilities

Ergonomics

Multi-function control handle
Mesh mast guard
Wide-view mast
Low step height
Cushioned floor

Safety Features

Auto-locking clamp
Wire mesh guard
Full body harness and tether
Operator Sensing System (OSS)
Electronic disc brakes

Ease of Service

AC drive and motor
On-board diagnostics
Battery compartment rollers
No tools cover
Glance-and-go display
Electronic disc brakes

					Options


							Planned Maintenance
								Reduce downtime, lower overall repair costs, and improve safety and compliance

							Operator Compartment Fan
								Provides a more comfortable and safer working environment by preventing heat stress, reducing fatigue, and improving air quality

							Extended Operator Platform
								Reduces fatigue, improves posture, provides easier entry and exit

							Keyless On/Off Switch
								Security against theft and prevents unauthorized use

							Twist Grip Control Handle
								Siimilar to the accelerator on a motorcycle, provides a more intuitive and natural motion for speed and direction control

							Cold Storage Package
								Enclosed cabin and heaters

							Corrosion Conditioning
								Protects electric forklift batteries and their surrounding components from the damaging effects of acid residue

							Pallet Clamp
								Increase efficiency, improve safety, and enhance versatility with secure handling

							Custom Forks
								Tailor the equipment to your specific material handling needs

							Power Hook-Up For Onboard Terminal
								Provides a stable and reliable power source directly from the vehicle's main battery

							LED Work Lights
								Improve visibility in low-light conditions

							Blue Spotlight
								For increased awareness and pedestrian warning

							Strobe Light
								Bright, sharp flashes to quickly capture attention

Get updates from Summit

Home Toyota Page 6

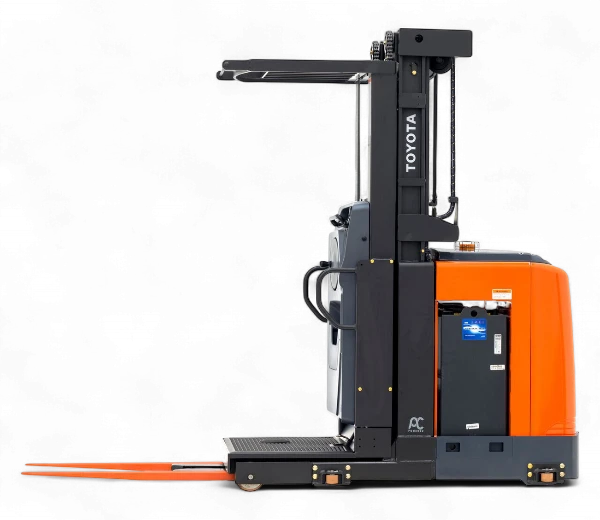

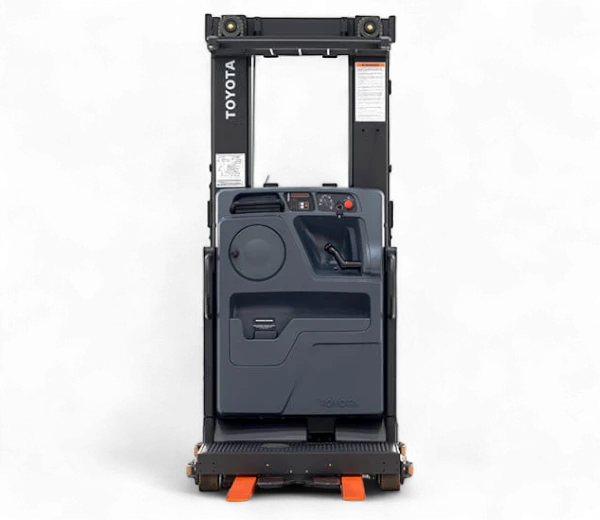

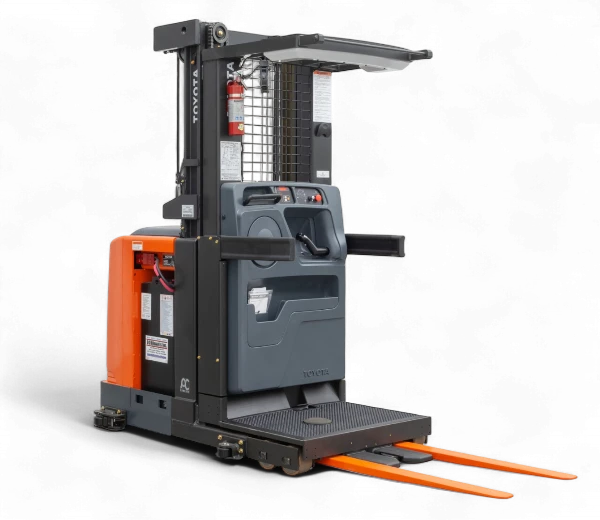

Toyota Order Picker Forklift

Solves the Most Challenging High-Reaching Warehouse Needs

The Toyota Order Picker has lift heights to 390″ and cushioned mast staging, which helps operators comfortably reach your tallest racks for order picking. This forklift easily maneuvers through narrow aisles in warehouses, minimizing rack impact during case picking, thanks to optional wire and double-rail guidance systems.

You’ll drive to optimal efficiency with optional Lift Logic technology that continuously monitors lift height, allowing for optimized travel speed at various lift heights while still maintaining safe operation.

Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.

Request a Quote

Toyota Order Picker Brochure Toyota Order Picker Spec Sheet

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Max. Travel Speed Full Load	Max. Lift Speed Full Load	Voltage
8BPUE15	3,000 lbs	6.5 mph	33 fpm	24 V
8BPU15	3,000 lbs	6.5 mph	57 fpm	24 V
8BPUH15	3,000 lbs	6.5 mph	80 fpm	36 V

Model Number	Load Capacity
8BPUE15	3,000 lbs
8BPU15	3,000 lbs
8BPUH15	3,000 lbs

Model Number	Max. Travel Speed Full Load
8BPUE15	6.5 mph
8BPU15	6.5 mph
8BPUH15	6.5 mph

Model Number	Max. Lift Speed Full Load
8BPUE15	33 fpm
8BPU15	57 fpm
8BPUH15	80 fpm

Model Number	Voltage
8BPUE15	24 V
8BPU15	24 V
8BPUH15	36 V

* Based on 24″ load center. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.

LOAD CAPACITY

3,000 LBS

FULL LOAD TRAVEL SPEED

6.5 MPH

TIRE TYPE

POLYURETHANE

Request a Quote

Overview

The Toyota Order Picker delivers advanced technologies and productivity-boosting features, making it a champion in any warehouse environment. These electric-powered vehicles are designed to improve efficiency in warehouse and retail environments by allowing operators to pick individual items from racks.

Performance

AC drive and lift motors on most models
Fully variable lift/lower controls
Regenerative braking
Hydraulic mast lowering deceleration
Automatic return to center drive tire at startup

Ergonomics

Cushioned mast staging
Bubble cushioned floor mat
Anti-rattle mast
Spring platform suspension system

Safety Features

Full body harness and energy-absorbing tether
Electronic disc brake
Wire mesh mast guard

Ease of Service

4 function hour meter
No tools, high-impact service access covers
On-board diagnostics
Battery compartment rollers
Emergency manual lowering valve

					Options


							Planned Maintenance
								Reduce downtime, lower overall repair costs, and improve safety and compliance

							Flip-Up Side Gates
								Prevents pedestrian-forklift collisions

							Wire Guidance
								A charged wire embedded in the floor to automate the forklift's steering

							Lift Logic
								Minimizes human error

							LED Work Lights
								LED Work Lights

							Operator Compartment Fan
								Provides a more comfortable and safer working environment by preventing heat stress, reducing fatigue, and improving air quality

Get updates from Summit

Home Toyota Page 6

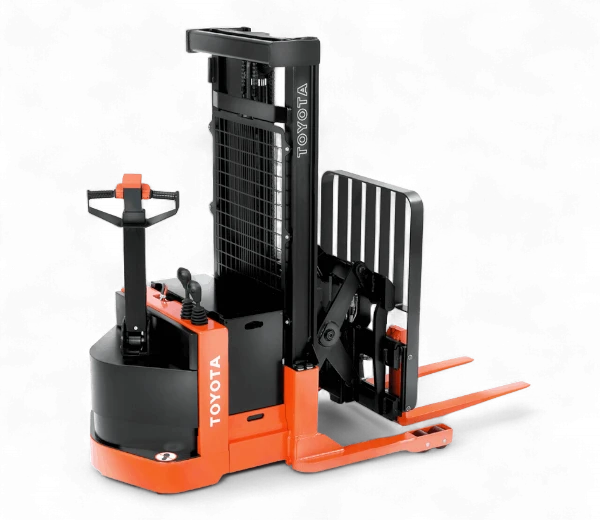

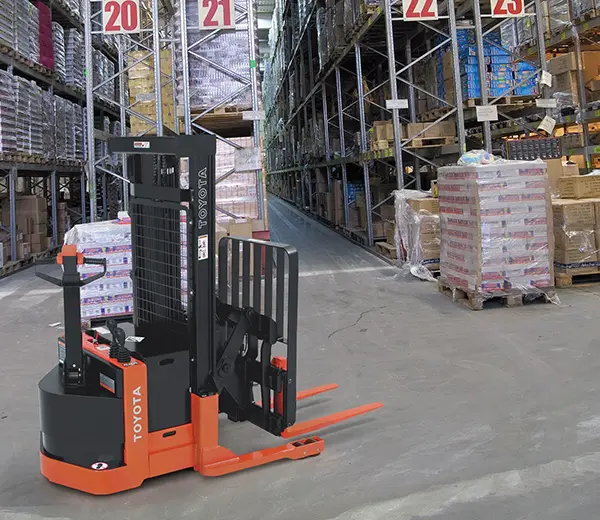

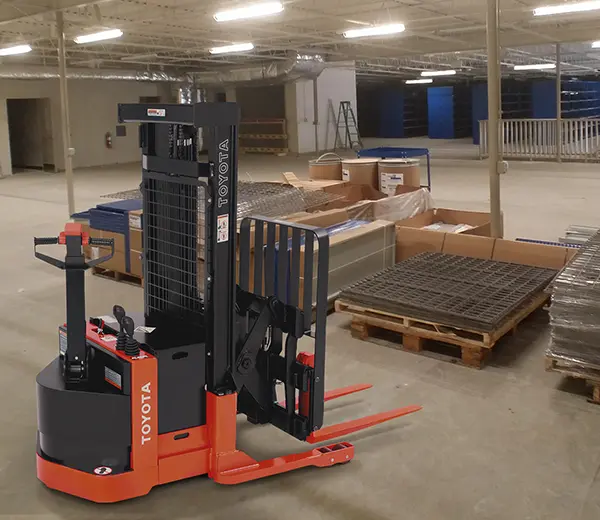

Toyota Walkie Reach Truck Forklift

Economical & Easy to Use

The highly versatile electric Toyota Walkie Reach Truck helps reduce operator fatigue and downtime by enabling quick and efficient product maneuvering throughout the warehouse. Easy to use and more economical than a sit-down forklift, the Toyota Walkie Reach Truck increases uptime and boosts productivity.

Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.

Request a Quote

Toyota Electric Walkie Reach Truck Brochure

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Max. Travel Speed Full Load	Max. Lift Speed Full Load	Max. Gradeability Full Load	Basic Right Angle Stack**
6BWR15	3,000 lbs	2.8 mph	29-60 fpm	6 %	91"

Model Number	Load Capacity
6BWR15	3,000 lbs

Model Number	Max. Travel Speed Full Load
6BWR15	2.8 mph

Model Number	Max. Lift Speed Full Load
6BWR15	29-60 fpm

Model Number	Max. Gradeability Full Load
6BWR15	6 %

Model Number	Basic Right Angle Stack**
6BWR15	91"

* Based on 24″ load center
** Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.

OVERALL WIDTH

40 – 58"

FULL LOAD TRAVEL SPEED

2.8 MPH

VOLTAGE

24 V

Request a Quote

Overview

The Toyota Walkie Reach Truck makes reaching and racking in pedestrian applications easy. Key features include a multi-function control handle for various functions like lifting, lowering, and extending forks, and a side-stance operator position for ergonomic benefits. These versatile reach trucks are often used in warehousing, food storage, and retail environments.

Performance

24 V electrical system
On/off key switch
UL Approved Type ‘E’
MOSFET programmable controller
Dual hydraulic reach cylinders
Carriage tilt
Spring-loaded torsion bar suspension

Ergonomics

Automatic resetting circuit breaker
Reverse polarity protection contactor
Mechanical drum brake
Directional thumb control
Safety glass mast guard
Direction reverse switch in control handle
Power on self test

Safety Features

Electric horn
High-visibility mast
Emergency power disconnect switch
Safety glass mast guard

Ease of Service

Easy-access service cover
Battery compartment

					Options


							Planned Maintenance
								Reduce downtime, lower overall repair costs, and improve safety and compliance

							Pallet Sensoring Guide
								Aligns a pallet with a conveyor line or racking system

							Twist Grip Control Handle
								Siimilar to the accelerator on a motorcycle, provides a more intuitive and natural motion for speed and direction control

							Battery Discharge Indicator (BDI)
								Provides a clear, real-time display of a battery's remaining charge

Get updates from Summit

Home Toyota Page 6

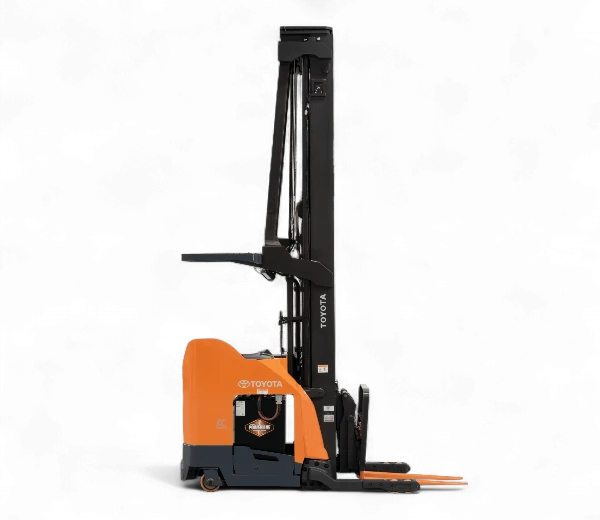

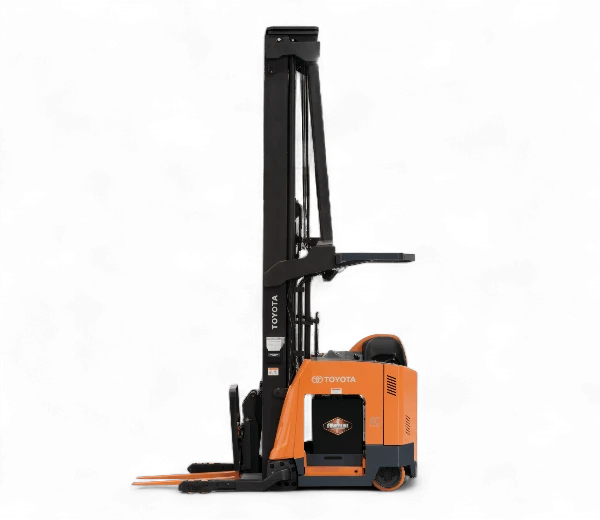

Toyota High-Capacity Reach Truck Forklift

For Tall Tasks and Heavy Orders, You Need a Toyota High-Capacity Reach Truck

Your fast-paced warehouse environment gets a workout day in and day out. When it comes to moving and storing products, the last thing you need is limitations.

Keeping up with evolving throughput and storage density demands while managing fluctuating inventory counts presents challenges for warehouse managers and operators. Toyota’s High-Capacity Reach Truck Series gives you the control you need to manage these fluctuations, enabling you to reach higher, work smarter, and be comfortably productive regardless of the assignment.

Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.

Request a Quote

Toyota High-Capacity Reach Truck Brochure Toyota High-Capacity Reach Truck Spec Sheet

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max. Fork Height	Max. Travel Speed	Reach Stroke
RF1-HC2X32	3,200 lbs	48 – 63"	230"	542"	7.5 mph	42"
RF1-HC1X45	4,500 lbs	48 – 63"	230"	542"	7.5 mph	23"
RF1-HC2Z32	3,200 lbs	48 – 63"	230"	542"	7.5 mph	42"
RF1-HC1Z45	4,500 lbs	48 – 63"	230"	542"	7.5 mph	23"

Model Number	Load Capacity
RF1-HC2X32	3,200 lbs
RF1-HC1X45	4,500 lbs
RF1-HC2Z32	3,200 lbs
RF1-HC1Z45	4,500 lbs

Model Number	Width
RF1-HC2X32	48 – 63"
RF1-HC1X45	48 – 63"
RF1-HC2Z32	48 – 63"
RF1-HC1Z45	48 – 63"

Model Number	Height
RF1-HC2X32	230"
RF1-HC1X45	230"
RF1-HC2Z32	230"
RF1-HC1Z45	230"

Model Number	Max. Fork Height
RF1-HC2X32	542"
RF1-HC1X45	542"
RF1-HC2Z32	542"
RF1-HC1Z45	542"

Model Number	Max. Travel Speed
RF1-HC2X32	7.5 mph
RF1-HC1X45	7.5 mph
RF1-HC2Z32	7.5 mph
RF1-HC1Z45	7.5 mph

Model Number	Reach Stroke
RF1-HC2X32	42"
RF1-HC1X45	23"
RF1-HC2Z32	42"
RF1-HC1Z45	23"

* Based on 24″ load center
** Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

LOAD CAPACITY

3,200 – 4,500 LBS

TRAVEL SPEED FULL LOAD

7.5 MPH

VOLTAGE

36 V

Request a Quote

Overview

Toyota’s High-Capacity Reach Truck is an electric-powered forklift designed for high-density warehouses, offering high lift heights and load capacities to boost productivity. Key features include rigid mast construction for stability, excellent visibility with open-view masts, and versatile operator stance options.

Ideal for high stacking, narrow aisle navigation, and optimizing storage density.

Performance

36 V
UL “E” Construction
AC-powered drive system with torque control
AC hydraulic system
High-speed lift and lowering with regenerative lowering
Electric power steering motor
7” color touchscreen display panel
2-speed reach & retract
Current-controlled proportional valve
Lowering-flow limiter
Lift system relief valve

Ergonomics

180° electronic power steering
Comfort-padded lean points
Multi-function control handle
Auto-position hold
Sidestance model with flip-down seat
Open-view 3-stage mast (FSW)
Hydraulically-cushioned mast staging, and reach/retract system
Electric disc brake
Ventilated tractor compartment
Door-mounted cooling fan
36″ tilting load backrest extension (3°fwd/4.5°bwd)
Anti-static ground strap
View-through carriage

Safety Features

Low step height
High visibility overhead guard
Safety glass mast guard
Flip-down seat
Adjustable height steer tiller
Emergency power disconnect switch
Electric horn
Lift slowdown at max lift

Ease of Service

Battery compartment rollers
Adjustable battery retaining gates
Self diagnostics
Built-in analyzer
Self-adjusting electric disc brake
Key switch
Battery discharge indicator with lift interrupt
SB350 gray connector
Bolt-on, ductile iron base legs
Enclosed battery compartment

					Options


							Planned Maintenance
								Reduce downtime, lower overall repair costs, and improve safety and compliance

							Multi-Function Control Handle
								Allows the operator to control multiple functions like travel, lift, lower, and auxiliary hydraulics with a single hand

							Pin Code Access
								Prevent unauthorized use, improve operator accountability

							Acculaser™
								Project a visual line or dot onto a pallet to ensure accurate and safe fork placement

							Backup Camera
								Eliminates blind spots, reduces pedestrian accidents

							Height & Tilt Indicator
								Enhances safety, increased productivity, and reduced damage to goods, equipment, and infrastructure

							Mast Lift Limit Switch with Bypass
								Prevents the mast from moving past a preset safety point, while allowing operator to override limit for specific tasks

							Cold Storage Package
								Enclosed cabin and heaters

							Heated Handle & Floor
								Keeps extremities warm to reduce fatigue, increase focus, and improve overall safety

							Sideshifter
								Effortlessly move forks at the touch of a lever

							Clamp Attachments
								Securely grip items to prevent damage and facilitate the handling of irregularly shaped loads

							Rotators
								Rotate, dump, or invert loads

Get updates from Summit

Home Toyota Page 6

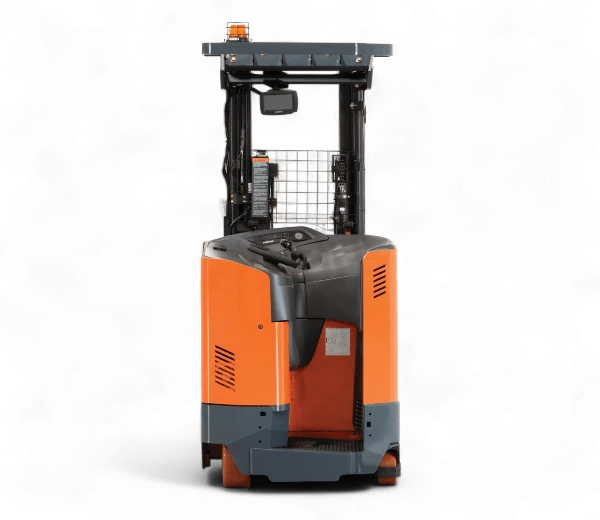

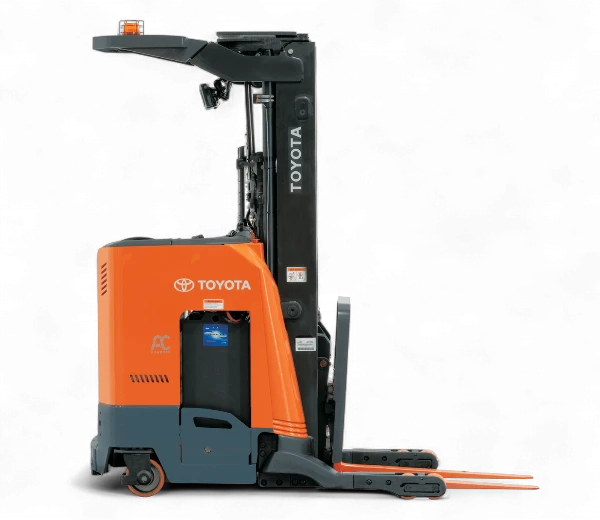

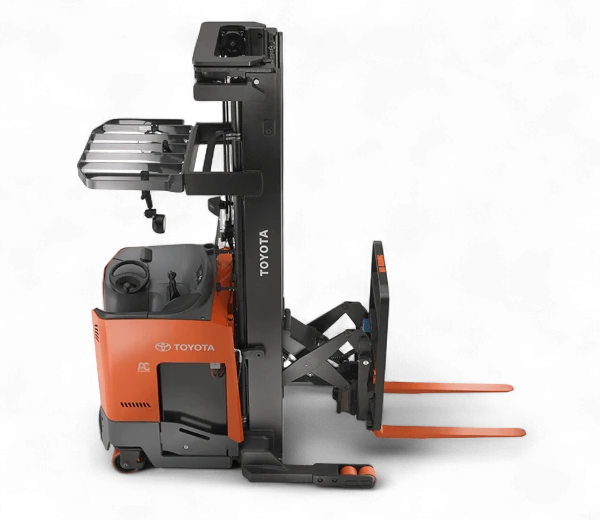

Toyota Reach Truck Forklift

Safety & Performance

With many unique features coupled with the longstanding productivity, ergonomics, and low cost of ownership you expect from an electric Toyota Forklift, the Reach Truck Series opens up new opportunities in warehouses and distribution centers.

This Series is designed for efficient material handling in narrow aisles, featuring AC drive and lift motors, and open-view masts for better operator visibility. Available in various models, including single and double-reach styles.

Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.

Request a Quote

Toyota Reach Truck Brochure Toyota Reach Truck Spec Sheet

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Max. Fork Height	Max Free Lift	Max. Travel Speed Full Load	Reach Type	Reach Stroke	Voltage
RF1‐BE1X35	3,500 lbs	270"	73"	6.5 mph	Single	23"	24 V
RF1‐BH1X35	3,500 lbs	270"	73"	7.5 mph	Single	23"	36 V
RF1-SD1X35	3,500 lbs	301"	82"	8 mph	Single	23"	36 V
RF1‐BE1X40	4,000 lbs	270"	73"	6.5 mph	Single	23"	24 V
RF1‐BH1X40	4,000 lbs	268"	76"	7.5 mph	Single	23"	36 V
RF1‐BH1X45	4,500 lbs	372"	118"	7.5 mph	Single	23"	36 V
RF1-SD1X45	4,500 lbs	372"	111"	8 mph	Single	23"	36 V
RF1-SD1Z45	4,500 lbs	372"	117"	8 mph	Single	23"	36 V
RF1-HP1X45	4,500 lbs	444"	135"	8 mph	Single	23"	36 V
RF1-HP1Z45	4,500 lbs	444"	135"	8 mph	Single	23"	36 V
RF1‐BH2X25	2,500 lbs	252"	76"	7.5 mph	Double	42"	36 V
RF1‐BE2X25	2,500 lbs	264"	80"	6.5 mph	Double	42"	24 V
RF1‐BH2X30	3,000 lbs	372"	122"	7.5 mph	Double	42"	36 V
RF1-SD2X32	3,200 lbs	372"	115"	8 mph	Double	42"	36 V
RF1-SD2Z32	3,200 lbs	372"	121"	8 mph	Double	42"	36 V
RF1-HP2X32	3,200 lbs	444"	139"	8 mph	Double	42"	36 V
RF1-HP2Z32	3,200 lbs	444"	139"	8 mph	Double	42"	36 V

Model Number	Load Capacity
RF1‐BE1X35	3,500 lbs
RF1‐BH1X35	3,500 lbs
RF1-SD1X35	3,500 lbs
RF1‐BE1X40	4,000 lbs
RF1‐BH1X40	4,000 lbs
RF1‐BH1X45	4,500 lbs
RF1-SD1X45	4,500 lbs
RF1-SD1Z45	4,500 lbs
RF1-HP1X45	4,500 lbs
RF1-HP1Z45	4,500 lbs
RF1‐BH2X25	2,500 lbs
RF1‐BE2X25	2,500 lbs
RF1‐BH2X30	3,000 lbs
RF1-SD2X32	3,200 lbs
RF1-SD2Z32	3,200 lbs
RF1-HP2X32	3,200 lbs
RF1-HP2Z32	3,200 lbs

Model Number	Max. Fork Height
RF1‐BE1X35	270"
RF1‐BH1X35	270"
RF1-SD1X35	301"
RF1‐BE1X40	270"
RF1‐BH1X40	268"
RF1‐BH1X45	372"
RF1-SD1X45	372"
RF1-SD1Z45	372"
RF1-HP1X45	444"
RF1-HP1Z45	444"
RF1‐BH2X25	252"
RF1‐BE2X25	264"
RF1‐BH2X30	372"
RF1-SD2X32	372"
RF1-SD2Z32	372"
RF1-HP2X32	444"
RF1-HP2Z32	444"

Model Number	Max Free Lift
RF1‐BE1X35	73"
RF1‐BH1X35	73"
RF1-SD1X35	82"
RF1‐BE1X40	73"
RF1‐BH1X40	76"
RF1‐BH1X45	118"
RF1-SD1X45	111"
RF1-SD1Z45	117"
RF1-HP1X45	135"
RF1-HP1Z45	135"
RF1‐BH2X25	76"
RF1‐BE2X25	80"
RF1‐BH2X30	122"
RF1-SD2X32	115"
RF1-SD2Z32	121"
RF1-HP2X32	139"
RF1-HP2Z32	139"

Model Number	Max. Travel Speed Full Load
RF1‐BE1X35	6.5 mph
RF1‐BH1X35	7.5 mph
RF1-SD1X35	8 mph
RF1‐BE1X40	6.5 mph
RF1‐BH1X40	7.5 mph
RF1‐BH1X45	7.5 mph
RF1-SD1X45	8 mph
RF1-SD1Z45	8 mph
RF1-HP1X45	8 mph
RF1-HP1Z45	8 mph
RF1‐BH2X25	7.5 mph
RF1‐BE2X25	6.5 mph
RF1‐BH2X30	7.5 mph
RF1-SD2X32	8 mph
RF1-SD2Z32	8 mph
RF1-HP2X32	8 mph
RF1-HP2Z32	8 mph

Model Number	Reach Type
RF1‐BE1X35	Single
RF1‐BH1X35	Single
RF1-SD1X35	Single
RF1‐BE1X40	Single
RF1‐BH1X40	Single
RF1‐BH1X45	Single
RF1-SD1X45	Single
RF1-SD1Z45	Single
RF1-HP1X45	Single
RF1-HP1Z45	Single
RF1‐BH2X25	Double
RF1‐BE2X25	Double
RF1‐BH2X30	Double
RF1-SD2X32	Double
RF1-SD2Z32	Double
RF1-HP2X32	Double
RF1-HP2Z32	Double

Model Number	Reach Stroke
RF1‐BE1X35	23"
RF1‐BH1X35	23"
RF1-SD1X35	23"
RF1‐BE1X40	23"
RF1‐BH1X40	23"
RF1‐BH1X45	23"
RF1-SD1X45	23"
RF1-SD1Z45	23"
RF1-HP1X45	23"
RF1-HP1Z45	23"
RF1‐BH2X25	42"
RF1‐BE2X25	42"
RF1‐BH2X30	42"
RF1-SD2X32	42"
RF1-SD2Z32	42"
RF1-HP2X32	42"
RF1-HP2Z32	42"

Model Number	Voltage
RF1‐BE1X35	24 V
RF1‐BH1X35	36 V
RF1-SD1X35	36 V
RF1‐BE1X40	24 V
RF1‐BH1X40	36 V
RF1‐BH1X45	36 V
RF1-SD1X45	36 V
RF1-SD1Z45	36 V
RF1-HP1X45	36 V
RF1-HP1Z45	36 V
RF1‐BH2X25	36 V
RF1‐BE2X25	24 V
RF1‐BH2X30	36 V
RF1-SD2X32	36 V
RF1-SD2Z32	36 V
RF1-HP2X32	36 V
RF1-HP2Z32	36 V

* Based on 24″ load center
** Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.

LOAD CAPACITY

2,500 – 4,500 LBS

FULL LOAD TRAVEL SPEED

6.5 – 8 MPH

MAXIMUM FORK HEIGHT

444"

Request a Quote

Overview

With world-class engineering and dependability, Toyota’s Reach Forklift Series is the perfect solution for your warehouse. These Reach Trucks come in single and double-reach models to help you utilize your warehouse space more efficiently. Choose between 24-volt or 36-volt power, as well as battery compartments ranging from 14.5 to 21.5″ in length.

With longer maintenance intervals and over 500 engineering improvements, a Toyota Reach Truck is the elite warehouse solution.

Performance

24/36 V
UL-E rating
AC-powered drive system with torque control
AC hydraulic system
Interactive digital display panel
180° electronic power steering
Wide-view 3-stage mast (FSV)

Ergonomics

Cushioned kneepad, padded floor, brake pedal
Ergonomically-angled floorboard
Integrated clipboard, amenities tray, cup holder
High-visibility overhead guard
Safety glass mast guard
Comfort-padded lean points

Safety Features

High visibility overhead guard
Electric horn
Emergency power disconnect switch
Anti-static ground strap

Ease of Service

Battery compartment rollers
Adjustable battery retaining gates
Self diagnostics
Built-in analyzer
Self-adjusting electric disc brake
Key switch
Battery discharge indicator with lift interrupt

					Options


							Planned Maintenance
								Reduce downtime, lower overall repair costs, and improve safety and compliance

							Reach Interlock Switch
								Prevents operators from traveling at high speeds with an unstable load

							Acculaser™
								Project a visual line or dot onto a pallet to ensure accurate and safe fork placement

							Height & Tilt Indicator
								Enhances safety, increased productivity, and reduced damage to goods, equipment, and infrastructure

							Mast Lift Limit Switch with Bypass
								Prevents the mast from moving past a preset safety point, while allowing operator to override limit for specific tasks

							Warning Light
								Advanced LED lights  that are more effective than traditional audible alarms, which can be difficult to hear in noisy environments

Get updates from Summit

Home Toyota Page 6

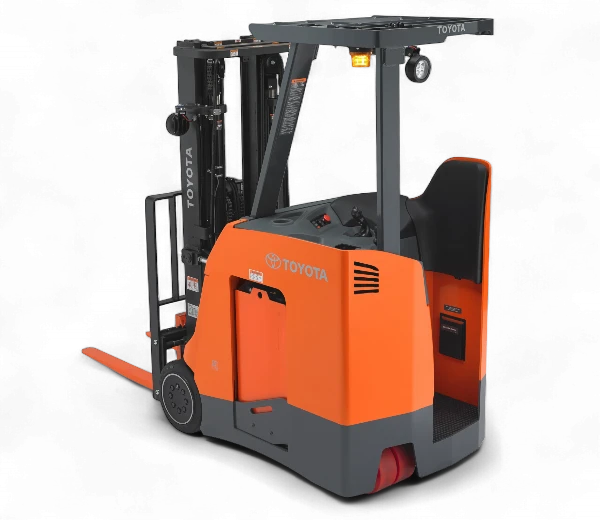

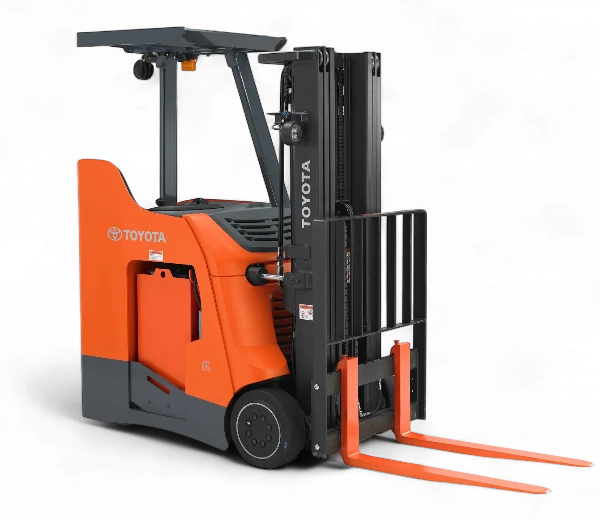

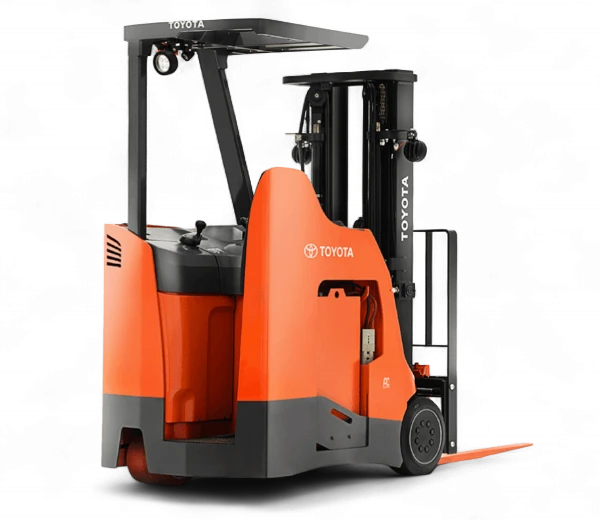

Toyota Stand-Up Electric Rider Forklift

Ready to Work When You Are

The unique dock-to-stock capability of the Toyota Stand Up Rider Forklift makes it the top of its class and one of the most versatile forklifts in Toyota’s product line. With its ability to navigate narrow aisles, the Toyota Stand Up Rider Forklift is an asset to any material handling job.

Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.

Request a Quote

Toyota Stand-Up Rider Spec Sheet Toyota Stand-Up Rider Brochure

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Max. Travel Speed Full Load	Max Lift Height	Max. Gradeability Full Load	Basic Right Angle Stack**	Lift Type
SR1‐BEF30	3,000 lbs	7.5 mph	227"	15%	68.8"	2-Stage
SR1‐BET30	3,000 lbs	7.5 mph	227"	15%	68.8"	3-Stage
SR1‐BEF35	3,500 lbs	7.5 mph	227"	15%	68.8"	2-Stage
SR1‐BET35	3,500 lbs	7.5 mph	227"	15%	68.8"	3-Stage
SR1‐BEF40	4,000 lbs	7.5 mph	227"	15%	68.8"	2-Stage
SR1‐BET40	4,000 lbs	7.5 mph	227"	15%	68.8"	3-Stage
SR1‐HPF30	3,000 lbs	7.5 mph	270"	15%	68.8"	2-Stage
SR1‐HPT30	3,000 lbs	7.5 mph	270"	15%	68.8"	3-Stage
SR1‐HPM30	3,000 lbs	7.5 mph	270"	15%	68.8"	4-Stage
SR1‐HPF35	3,500 lbs	7.5 mph	270"	15%	68.8"	2-Stage
SR1‐HPT35	3,500 lbs	7.5 mph	270"	15%	68.8"	3-Stage
SR1‐HPM35	3,500 lbs	7.5 mph	270"	15%	68.8"	4-Stage
SR1‐HPF40	4,000 lbs	7.5 mph	270"	15%	68.8"	2-Stage
SR1‐HPT40	4,000 lbs	7.5 mph	270"	15%	68.8"	3-Stage
SR1‐HPM40	4,000 lbs	7.5 mph	270"	15%	68.8"	4-Stage
SR1‐HPF50	5,000 lbs	7.5 mph	270"	15%	68.8"	2-Stage
SR1‐HPT50	5,000 lbs	7.5 mph	270"	15%	68.8"	3-Stage
SR1‐HPM50	5,000 lbs	7.5 mph	270"	15%	68.8"	4-Stage

Model Number	Load Capacity
SR1‐BEF30	3,000 lbs
SR1‐BET30	3,000 lbs
SR1‐BEF35	3,500 lbs
SR1‐BET35	3,500 lbs
SR1‐BEF40	4,000 lbs
SR1‐BET40	4,000 lbs
SR1‐HPF30	3,000 lbs
SR1‐HPT30	3,000 lbs
SR1‐HPM30	3,000 lbs
SR1‐HPF35	3,500 lbs
SR1‐HPT35	3,500 lbs
SR1‐HPM35	3,500 lbs
SR1‐HPF40	4,000 lbs
SR1‐HPT40	4,000 lbs
SR1‐HPM40	4,000 lbs
SR1‐HPF50	5,000 lbs
SR1‐HPT50	5,000 lbs
SR1‐HPM50	5,000 lbs

Model Number	Max. Travel Speed Full Load
SR1‐BEF30	7.5 mph
SR1‐BET30	7.5 mph
SR1‐BEF35	7.5 mph
SR1‐BET35	7.5 mph
SR1‐BEF40	7.5 mph
SR1‐BET40	7.5 mph
SR1‐HPF30	7.5 mph
SR1‐HPT30	7.5 mph
SR1‐HPM30	7.5 mph
SR1‐HPF35	7.5 mph
SR1‐HPT35	7.5 mph
SR1‐HPM35	7.5 mph
SR1‐HPF40	7.5 mph
SR1‐HPT40	7.5 mph
SR1‐HPM40	7.5 mph
SR1‐HPF50	7.5 mph
SR1‐HPT50	7.5 mph
SR1‐HPM50	7.5 mph

Model Number	Max Lift Height
SR1‐BEF30	227"
SR1‐BET30	227"
SR1‐BEF35	227"
SR1‐BET35	227"
SR1‐BEF40	227"
SR1‐BET40	227"
SR1‐HPF30	270"
SR1‐HPT30	270"
SR1‐HPM30	270"
SR1‐HPF35	270"
SR1‐HPT35	270"
SR1‐HPM35	270"
SR1‐HPF40	270"
SR1‐HPT40	270"
SR1‐HPM40	270"
SR1‐HPF50	270"
SR1‐HPT50	270"
SR1‐HPM50	270"

Model Number	Max. Gradeability Full Load
SR1‐BEF30	15%
SR1‐BET30	15%
SR1‐BEF35	15%
SR1‐BET35	15%
SR1‐BEF40	15%
SR1‐BET40	15%
SR1‐HPF30	15%
SR1‐HPT30	15%
SR1‐HPM30	15%
SR1‐HPF35	15%
SR1‐HPT35	15%
SR1‐HPM35	15%
SR1‐HPF40	15%
SR1‐HPT40	15%
SR1‐HPM40	15%
SR1‐HPF50	15%
SR1‐HPT50	15%
SR1‐HPM50	15%

Model Number	Basic Right Angle Stack**
SR1‐BEF30	68.8"
SR1‐BET30	68.8"
SR1‐BEF35	68.8"
SR1‐BET35	68.8"
SR1‐BEF40	68.8"
SR1‐BET40	68.8"
SR1‐HPF30	68.8"
SR1‐HPT30	68.8"
SR1‐HPM30	68.8"
SR1‐HPF35	68.8"
SR1‐HPT35	68.8"
SR1‐HPM35	68.8"
SR1‐HPF40	68.8"
SR1‐HPT40	68.8"
SR1‐HPM40	68.8"
SR1‐HPF50	68.8"
SR1‐HPT50	68.8"
SR1‐HPM50	68.8"

Model Number	Lift Type
SR1‐BEF30	2-Stage
SR1‐BET30	3-Stage
SR1‐BEF35	2-Stage
SR1‐BET35	3-Stage
SR1‐BEF40	2-Stage
SR1‐BET40	3-Stage
SR1‐HPF30	2-Stage
SR1‐HPT30	3-Stage
SR1‐HPM30	4-Stage
SR1‐HPF35	2-Stage
SR1‐HPT35	3-Stage
SR1‐HPM35	4-Stage
SR1‐HPF40	2-Stage
SR1‐HPT40	3-Stage
SR1‐HPM40	4-Stage
SR1‐HPF50	2-Stage
SR1‐HPT50	3-Stage
SR1‐HPM50	4-Stage

* Based on 24″ load center
** Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.

LOAD CAPACITY

3,000 – 5,000 LBS

TRAVEL SPEED FULL LOAD

7.5 MPH

VOLTAGE

36 V

Request a Quote

Overview

The Toyota Stand-Up Rider forklift is built with the ultimate performance and comfort in mind, delivering improved ergonomics, reliability and durability while reducing service intervals.

Performance

36 V electrical system
AC transistor control system with MOSFET
AC induction drive and lift motors
Independent lift, steer and auxiliary motors
Hydraulic mast cushioning

Ergonomics

Shock-dampened, isolated operator compartment floor
Spacious operator compartment
Flexible side stance operator compartment
Cushioned backrest & armrest
Low-effort brake pedal
Low step height
Clipboard, amenity tray and cup holder

Safety Features

High visibility mast and overhead guard
Dual electric disk brakes
Cornering speed control
Hydrostatic power steering
Regenerative braking

Ease of Service

One-piece top cover
Self-diagnostics
Built-in analyzer
Programmable maintenance indicator
Temperature indicator
Battery compartment rollers

					Options


							Planned Maintenance
								Reduce downtime, lower overall repair costs, and improve safety and compliance

							T-Matics Vehicle Management System
								Real-time monitoring of forklift usage, operator performance, and maintenance needs

							LED Operator Compartment Light
								Provides better visibility for the operator, improves safety and productivity

							Rear Wheel Steering
								Tighter turns, enhanced precision, better load placement

							Cold Storage Package
								Enclosed cabin and heaters

							2-Way Mast Tilt Centering
								Automatically returns the mast to a true vertical position from both the forward and backward tilted positions

							Fire Extinguisher
								Immediate tool for fighting small fires caused by fuel or electrical issues

Get updates from Summit

Home Toyota Page 6

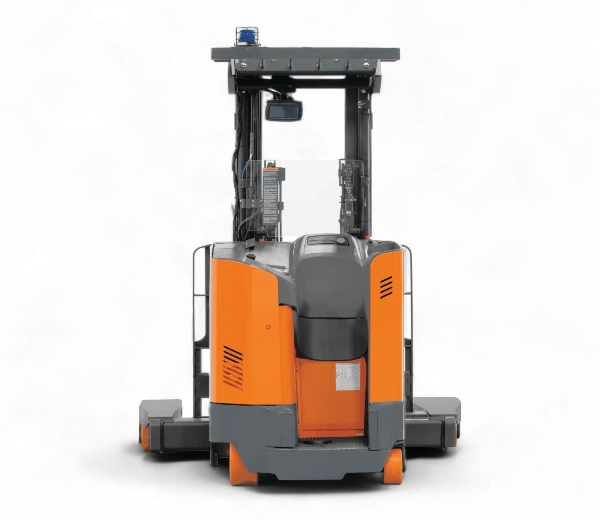

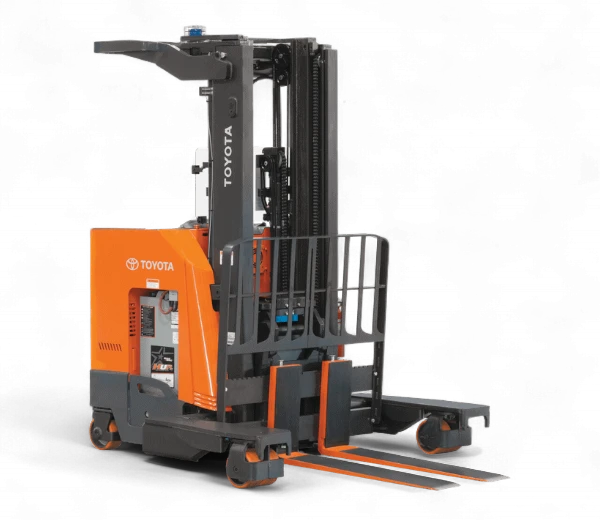

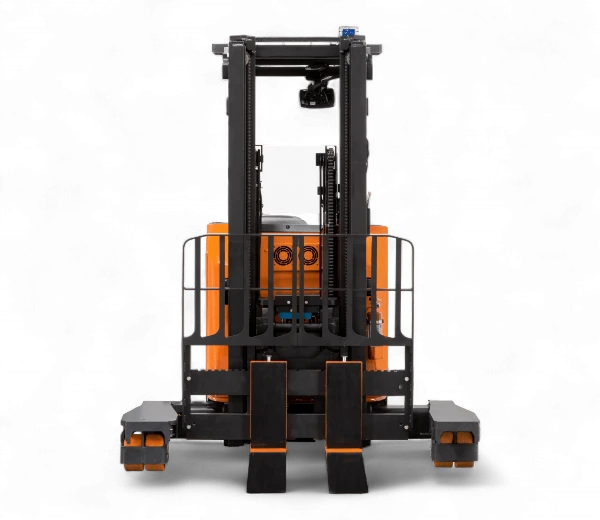

Toyota Multidirectional Reach Truck Forklift

Stack Wide Loads in Narrow Aisles, Save Space & Increase Productivity

Toyota’s Multidirectional Reach Truck is an innovative alternative to traditional material handling, specially designed to handle wide, bulky loads. Articulating load wheels allow the forklift to travel horizontally, enabling compact travel and stacking wide loads in narrow aisles without turning.

The ability to travel both parallel and perpendicular to racking saves you time and space while increasing productivity.

Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.

Request a Quote

Toyota Multidirectional Reach Truck Brochure

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max Fork Height	Max Full Load Travel Speed	Free Lift	Voltage
RF1-MD1X45	4,500 lbs	76"	118"	268"	7 mph	69"	36 V

Model Number	Load Capacity
RF1-MD1X45	4,500 lbs

Model Number	Width
RF1-MD1X45	76"

Model Number	Height
RF1-MD1X45	118"

Model Number	Max Fork Height
RF1-MD1X45	268"

Model Number	Max Full Load Travel Speed
RF1-MD1X45	7 mph

Model Number	Free Lift
RF1-MD1X45	69"

Model Number	Voltage
RF1-MD1X45	36 V

*Based on 24″ load center
**Add load length and clearance
Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

LOAD CAPACITY

4,500 LBS

FULL LOAD TRAVEL SPEED

7 MPH

MAXIMUM FORK HEIGHT

268"

Request a Quote

Overview

The Toyota Multidirectional Reach Truck is an electric, battery-powered forklift designed for efficiently handling wide and bulky loads in narrow-aisle warehouses. Its key feature is the articulating load wheels and multidirectional travel, allowing the truck to move in any direction—forward, backward, sideways, or diagonally—without needing to turn.

Performance

36 V
AC-powered drive system with torque control
AC hydraulic system
Multifunction control handle
Variable speed lift and lowering
2-speed, reach/retract
7” color touchscreen display
Lowering flow limiter
Lift system relief valve
UL Approved E Construction

Ergonomics

180° electronic power steering
Auto-position hold
Open-view 3-stage mast (FSW)
Hydraulically-cushioned mast staging and retract system
Hydraulic fork deceleration at floor level
Polyurethane drive tire
Steerable load wheels
Electric disc brake
36″ tilting load backrest extension (4.5°fwd/3°bwd)
Adjustable speed limit above freelift (0-3.5 mph)

Safety Features

Overhead guard
View-through carriage
Operator presence sensing system
Cushioned knee pad
Safety glass mast guard
Self-adjusting electric disc brake
Emergency power disconnect switch
Lift slowdown at max lift
Anti-static ground strap

Ease of Service

Battery compartment rollers
Adjustable battery retaining gates
Enclosed battery compartment
SB350 gray connector
Battery discharge indicator with lift interrupt
Self diagnostics
Self-adjusting electric disc brake
Emergency power disconnect switch
Electro-mechanical horn
Key switch

					Options


							Planned Maintenance
								Reduce downtime, lower overall repair costs, and improve safety and compliance

							SEnS+ Smart Environment Sensor Plus
								Stereoscopic camera detects pedestrians and objects up to 32’

							Carriage-Mounted Camera System
								 Improves visibility when handling loads at high elevations

							Blue Spotlight
								For increased awareness and pedestrian warning

							T-Matics Vehicle Management System
								Real-time monitoring of forklift usage, operator performance, and maintenance needs

							Cold Storage Package
								Enclosed cabin and heaters

							Clamp Attachments
								Securely grip items to prevent damage and facilitate the handling of irregularly shaped loads

							Paper Roll Attachment
								Securely grips rolls without piercing them, and improves safety by minimizing slips and falls

							Rotators
								Rotate, dump, or invert loads

Get updates from Summit

Home Toyota Page 6

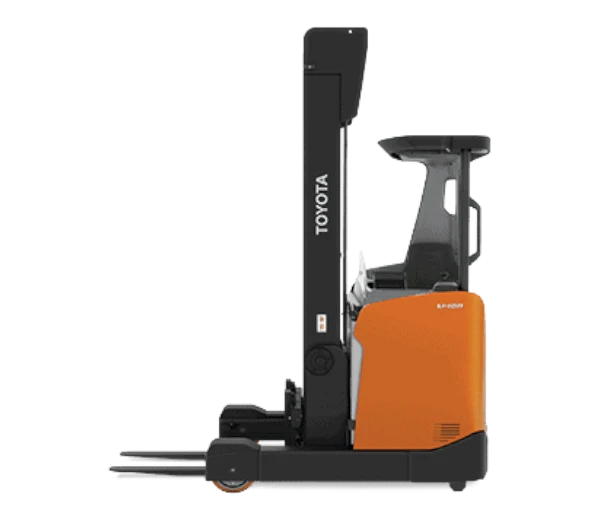

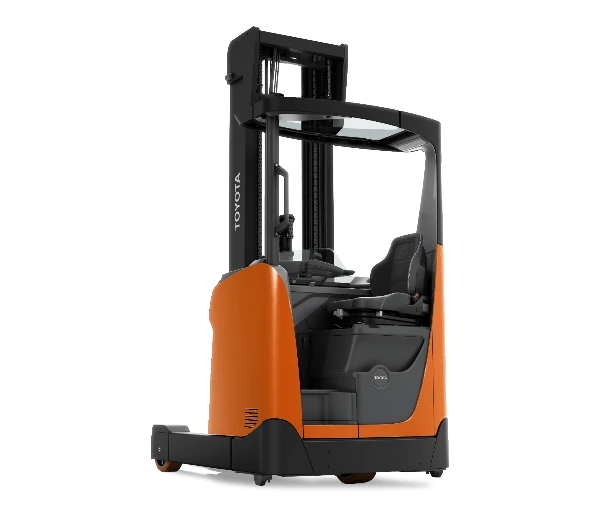

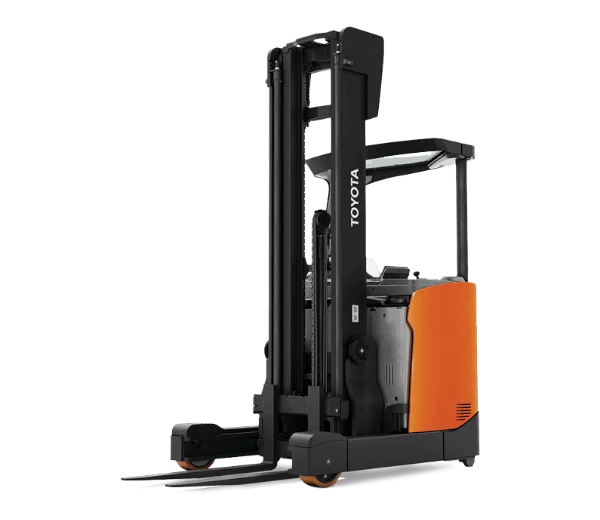

Toyota Indoor Moving Mast Reach Truck Forklift

Clear & Precise Control for Fast & Smooth Handling Shift After Shift

With a maximum lift height of 512″, and Toyota’s unique optional tilting cab system, operators have a clear view of their load, and can reduce the risk of neck and shoulder straining at high-level applications.

Toyota’s Moving Mast Reach Truck allows for faster and more accurate fork positioning. With warehouses continuing to rise due to space constraints, this truck is designed to deliver the perfect fit for your operation’s needs.

Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.

Request a Quote

Toyota Indoor Moving Mast Reach Truck Brochure

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max. Fork Height	Max. Travel Speed	Reach Stroke	Voltage
RRE140H	3,000 lbs	58"	166"	433"	6.8 mph	20"	48 V
RRE160H	3,500 lbs	58"	166"	433"	6.8 mph	23"	48 V
RRE180H	3,900 lbs	66"	196"	512"	6.8 mph	23"	48 V
RRE200H	4,400 lbs	66"	196"	512"	6.8 mph	26"	48 V
RRE250H	5,500 lbs	66"	196"	512"	6.8 mph	24"	48 V

Model Number	Load Capacity
RRE140H	3,000 lbs
RRE160H	3,500 lbs
RRE180H	3,900 lbs
RRE200H	4,400 lbs
RRE250H	5,500 lbs

Model Number	Width
RRE140H	58"
RRE160H	58"
RRE180H	66"
RRE200H	66"
RRE250H	66"

Model Number	Height
RRE140H	166"
RRE160H	166"
RRE180H	196"
RRE200H	196"
RRE250H	196"

Model Number	Max. Fork Height
RRE140H	433"
RRE160H	433"
RRE180H	512"
RRE200H	512"
RRE250H	512"

Model Number	Max. Travel Speed
RRE140H	6.8 mph
RRE160H	6.8 mph
RRE180H	6.8 mph
RRE200H	6.8 mph
RRE250H	6.8 mph

Model Number	Reach Stroke
RRE140H	20"
RRE160H	23"
RRE180H	23"
RRE200H	26"
RRE250H	24"

Model Number	Voltage
RRE140H	48 V
RRE160H	48 V
RRE180H	48 V
RRE200H	48 V
RRE250H	48 V

* Based on 24″ load center
** Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

LOAD CAPACITY

3,000 – 5,500 LBS

FULL LOAD TRAVEL SPEED

6.8 MPH

MAXIMUM FORK HEIGHT

433 – 512"

Request a Quote

Overview

Toyota Moving Mast Reach Trucks are designed for high-level warehouse applications, offering exceptional visibility, precise control, and ergonomic features like tilting cabs and padded compartments to enhance operator comfort and productivity. These Reach Trucks allow for significant aisle reduction by enabling the mast to extend forward, providing a clear view of the load at height level.

Performance

48 V
AC-powered drive system
AC hydraulic system
Optimized reach control
Variable speed lift/lowering
Current-controlled proportional valve
Lowering flow limiter
Lift system relief valve
Optimized cornering control
Interactive digital display panel

Ergonomics

Selectable 360° or 180° electric power steering
Open-view 3-stage mast (FSW)
Regenerative braking
39.4″ load backrest extension
Transitional lift control
Steering direction indicator
View-through carriage

Safety Features

Automatic tilting operator compartment
Seated operator compartment
Manually adjustable height floor
Adjustable armrest with fingertip controls
High visibility overhead guard
Emergency power shut-down
Electric horn

Ease of Service

Battery extraction by mast
Euro-style battery connector
Battery discharge indicator w/lift interrupt
Self diagnostics
Built-in analyzer
Over temperature indicator w/protection
Electric disc brake
Operator PIN code access
Enclosed battery compartment

					Options


							Planned Maintenance
								Reduce downtime, lower overall repair costs, and improve safety and compliance

							Interactive Touchscreen
								Replace manual, paper-based processes with real-time digital access to information, streamlining tasks and reducing errors

							Intercom System for Enclosed Cab
								Significantly improves workplace communication, safety, and efficiency

							Work Lights
								Improve visibility in low-light conditions

							Load Backrest Extension
								Prevents loads from shifting and falling backward toward the operator

							Fork Positioner
								Adjusts fork width from the cab, to save time, prevent damage, and reduce operator fatigue

							Custom Forks
								Tailor the equipment to your specific material handling needs

Get updates from Summit

Home Toyota Page 6

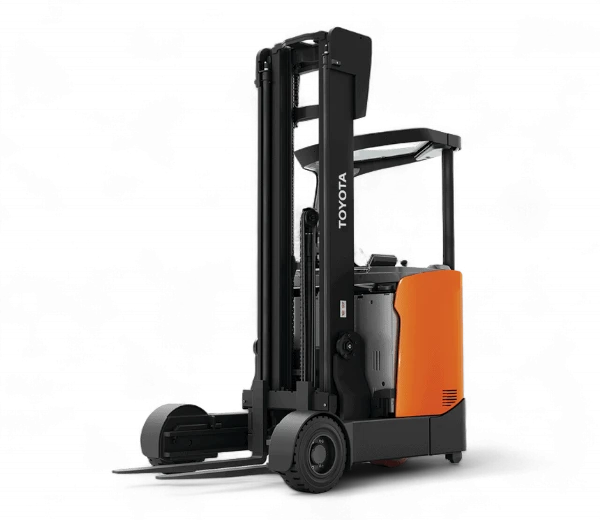

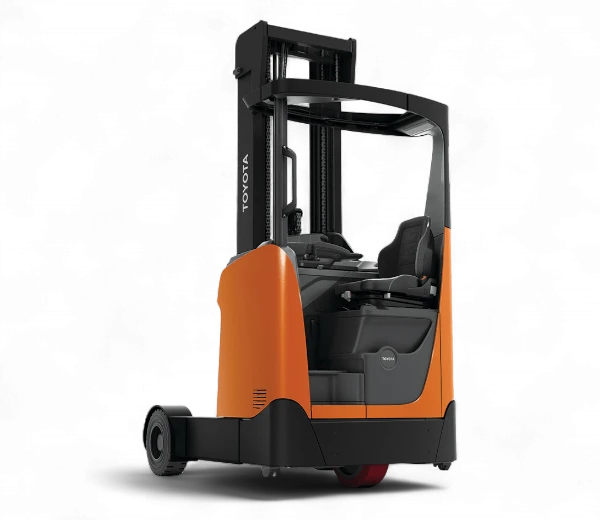

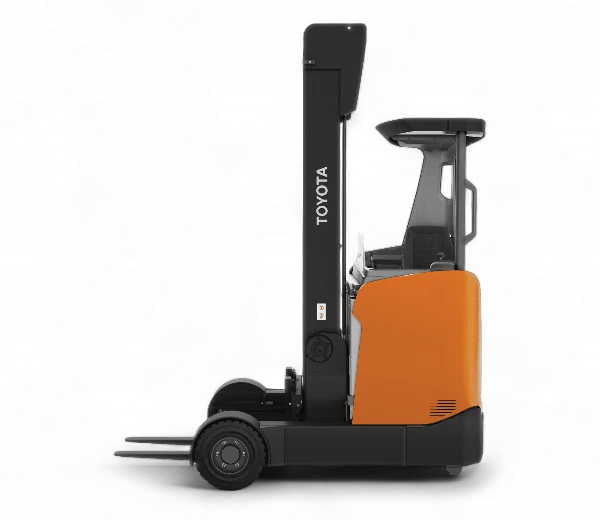

Toyota Indoor/Outdoor Moving Mast Reach Truck Forklift

The Perfect Lift to Fit Your Indoor and Outdoor Operations’ Needs

Toyota’s Indoor/Outdoor Moving Mast Reach Truck is in a class all its own when it comes to productivity, performance, and efficiency. This powerful lift is equipped with innovative ergonomics and technology, offering clear and precise control for faster and smoother handling shift after shift.

Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.

Request a Quote

Toyota Indoor / Outdoor Moving Mast Reach Truck Brochure

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max. Fork Height	Max. Travel Speed	Reach Stroke
RRE160HR	3,500 lbs	56"	123"	295"	6.8 mph	24"

Model Number	Load Capacity
RRE160HR	3,500 lbs

Model Number	Width
RRE160HR	56"

Model Number	Height
RRE160HR	123"

Model Number	Max. Fork Height
RRE160HR	295"

Model Number	Max. Travel Speed
RRE160HR	6.8 mph

Model Number	Reach Stroke
RRE160HR	24"

* Based on 24″ Load center
** Add load length and clearance
Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

LOAD CAPACITY

3,500 LBS

FULL LOAD TRAVEL SPEED

6.8 MPH

VOLTAGE

48 V

Request a Quote

Overview

The Toyota Indoor-Outdoor Moving Mast Reach Truck is a versatile forklift designed for high-stacking warehouses that can also handle outdoor tasks, such as loading and unloading trailers. Key features include special super elastic tires for a comfortable ride on various surfaces, a moving mast for extended reach, and advanced operator aids like an interactive touchscreen display.

Performance

48 V
AC-powered drive system
AC hydraulic system
Optimized reach control
Variable speed lift/lowering
Current-controlled proportional valve
Lowering flow limiter
Lift system relief valve
Optimized cornering control
Interactive digital display panel

Ergonomics

Selectable 360° or 180° electric power steering
Open-view 3-stage mast (FSW)
Regenerative braking
39.4″ load backrest extension
Transitional lift control
Steering direction indicator
View-through carriage
Transitional Lift Control
Steering Direction Indicator

Safety Features

Seated operator compartment
Manually adjustable height floor
Adjustable armrest with fingertip controls
High visibility overhead guard
Adjustable steering wheel

Ease of Service

Battery extraction by mast
Euro-style battery connector
Battery discharge indicator w/lift interrupt
Self diagnostics
Built-in analyzer
Over temperature indicator w/protection
Electric disc brake
Enclosed battery compartment

					Options


							Planned Maintenance
								Reduce downtime, lower overall repair costs, and improve safety and compliance

							Touchscreen Display
								Provide operators with real-time information and control

							Carriage-Mounted Camera System
								Improves visibility when handling loads at high elevations

							Laser Fork Height Indicator
								Project a visual line or dot onto a pallet to ensure accurate and safe fork placement

							Pin Code Access
								Prevent unauthorized use, improve operator accountability

Toyota Core Electric Forklift

Page Menu

Specs

Specifications

Load Capacity

Full Load Travel Speed

VOLTAGE

Overview

Performance

Ergonomics

Safety Features

Ease of Service

Options

Related Products

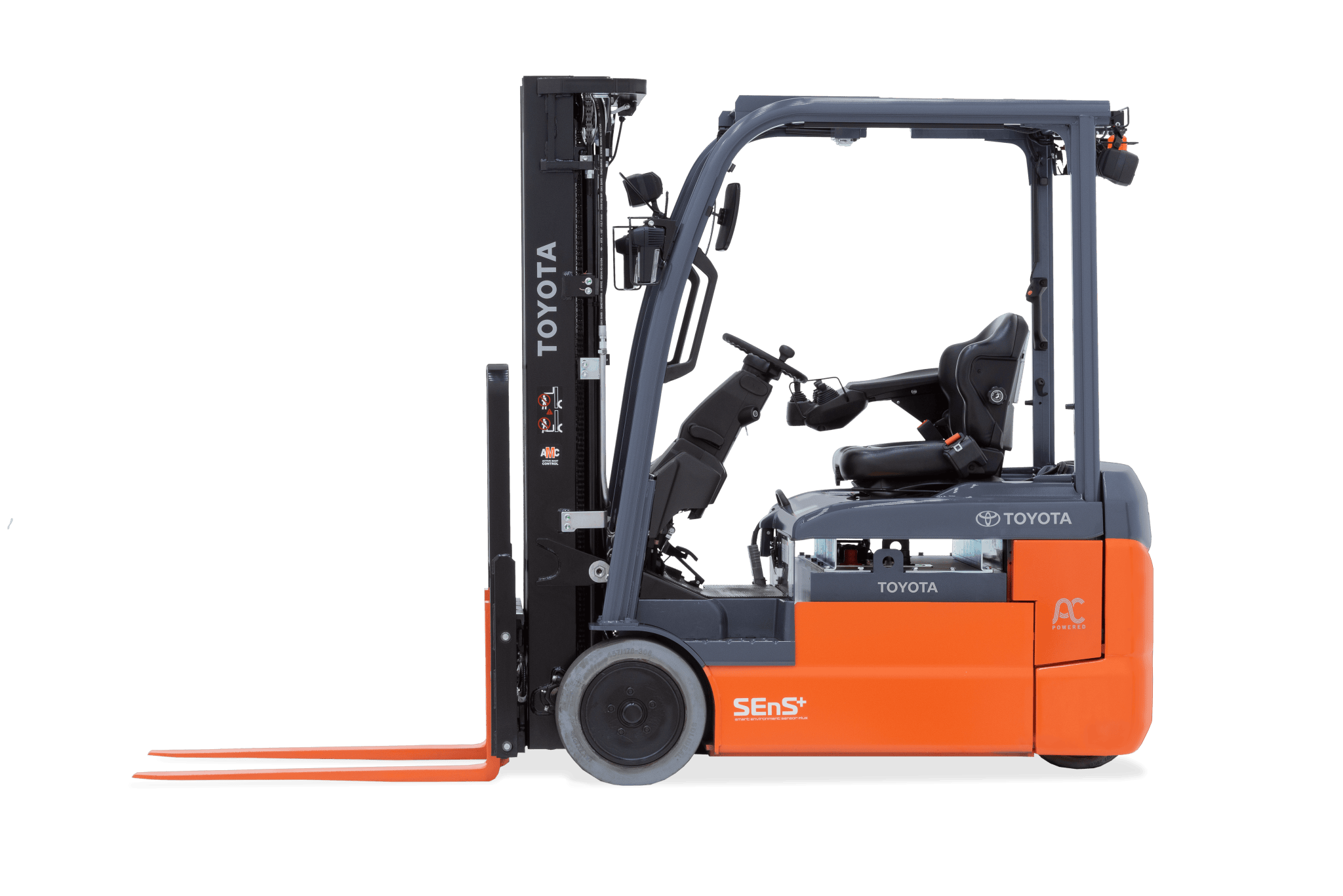

Toyota 3-Wheel Electric Forklift

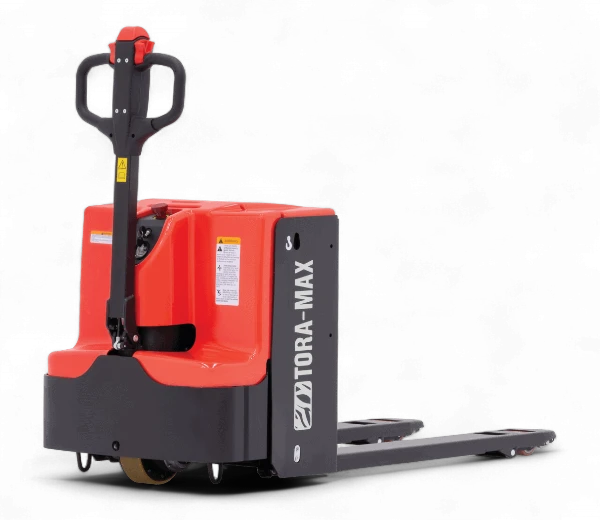

Toyota Tora-Max Electric Walkie Pallet Jack Forklift

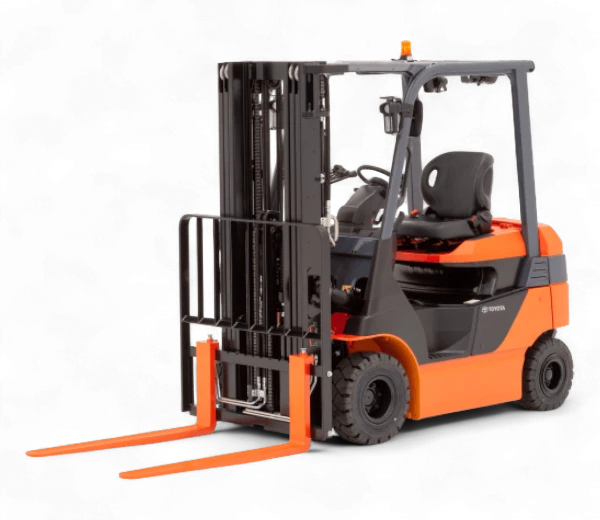

Toyota Outdoor Electric Forklift

Get updates from Summit

Toyota Furniture Order Picker Forklift

Page Menu

Specs

Specifications

LOAD CAPACITY

BASELEG LENGTH

TIRE TYPE

Overview

Performance

Ergonomics

Safety Features

Ease of Service

Options

Related Products

Toyota Order Picker Forklift

Toyota 3-Wheel Electric Forklift

Toyota Stand-Up Electric Rider Forklift

Get updates from Summit

Toyota Order Picker Forklift

Page Menu

Specs

Specifications

LOAD CAPACITY

FULL LOAD TRAVEL SPEED

TIRE TYPE

Overview

Performance

Ergonomics

Safety Features

Ease of Service

Options

Related Products

Toyota 3-Wheel Electric Forklift

Get updates from Summit

Toyota Walkie Reach Truck Forklift

Page Menu

Specs

Specifications

OVERALL WIDTH

FULL LOAD TRAVEL SPEED

VOLTAGE

Overview

Performance

Ergonomics

Safety Features

Ease of Service

Options

Related Products

Toyota Reach Truck Forklift

Get updates from Summit

Toyota High-Capacity Reach Truck Forklift

Page Menu

Specs

Specifications

LOAD CAPACITY

TRAVEL SPEED FULL LOAD

VOLTAGE

Overview

Performance

Ergonomics

Safety Features

Ease of Service
