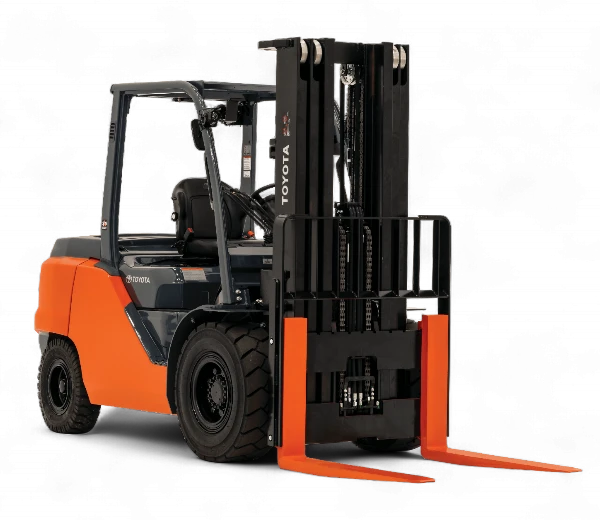

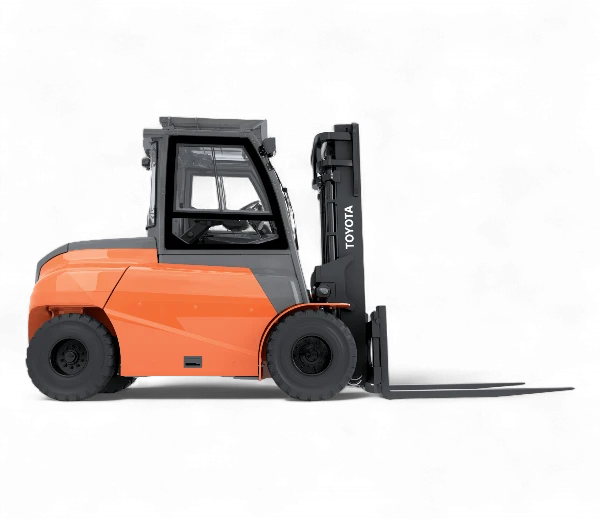

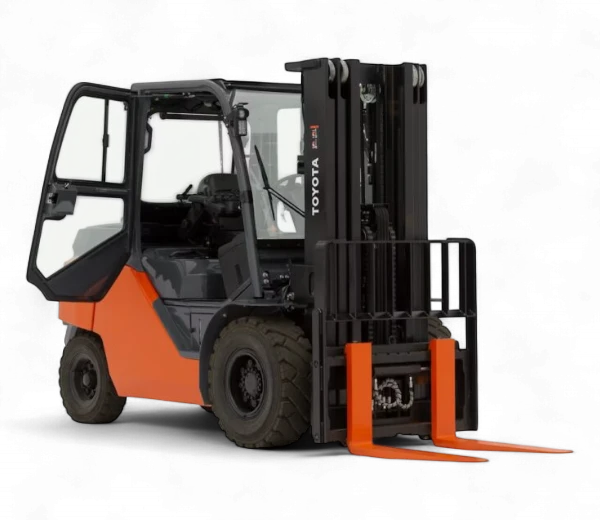

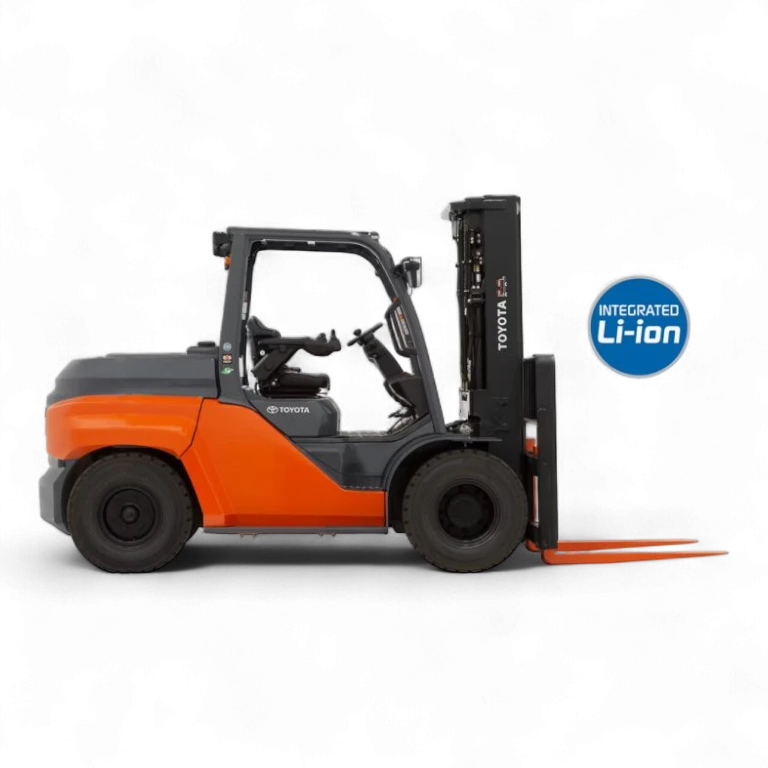

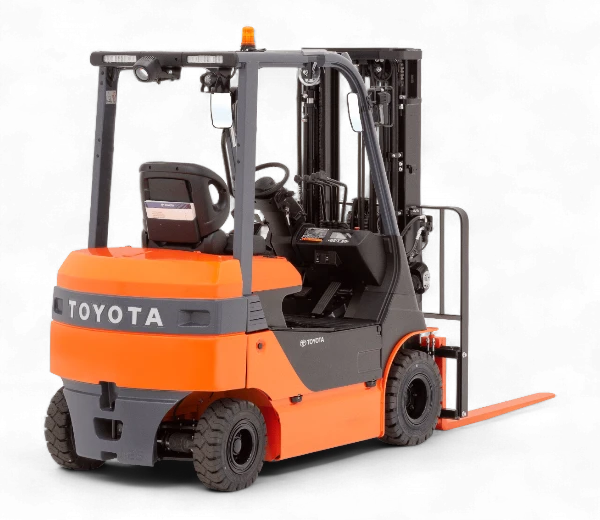

Toyota Outdoor Electric Forklift

Want to maintain an all-electric fleet, but need a rugged, outdoor solution?
Look no further than Toyota’s Outdoor Electric Pneumatic Forklift

Powerful and rugged enough to perform similarly to internal combustion counterparts, but running off a battery, Toyota’s Electric Outdoor Pneumatic Forklift maintains clean air and low maintenance, but supports powerful, outdoor, traditionally IC applications.

Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.

Request a Quote

Toyota Electric Outdoor Pneumatic, 48-80 Volt Spec Sheet Toyota Electric Outdoor Pneumatic, 48-80 Volt Brochure Toyota Electric Outdoor Pneumatic, 80 Volt Spec Sheet

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Max Mast Height**	Max Full Load Travel Speed	Max Full Load Lift Speed	Max Full Loadgradeability	Basic Right Angle Stack*
8FBH15	3,000 lbs	237.5"	9 mph	83 fbm	19%	85.6"
8FBH18	3,500 lbs	237.5"	9 mph	83 fbm	19%	85.6"
8FBH20	4,000 lbs	237.5"	9 mph	71 fbm	20%	94.5"
8FBH25	5,000 lbs	237.5"	10 mph	71 fbm	19%	85.6"
8FB30	6,000 lbs	237.5"	13 mph	75 fbm	17%	86"
8FBJ35	7,000 lbs	237.5"	11.8 mph	73 fbm	20%	94.5"
05-9FBMK20T	4,000 lbs	257"	11.8 mph	90.5 fbm	31%	104.1"
05-9FBMK25T	5,000 lbs	257"	11.8 mph	90.6 fbm	25%	104.1"
05-9FBM25T	5,000 lbs	257"	11.8 mph	90.6 fbm	25%	110"
05-9FBH25T	5,500 lbs	257"	11.8 mph	78.7 fbm	75%	110.6"
05-9FBMK30T	6,000 lbs	257"	11.8 mph	78.7 fbm	23%	105.4"
05-9FBM30T	6,000 lbs	257"	11.8 mph	78.7 fbm	23%	110.8"
05-9FBH30T	6,500 lbs	257"	11.8 mph	78.7 fbm	23%	111.5"
05-9FBM35T	7,000 lbs	257"	11.8 mph	72.8 fbm	20%	111.8"
05-8FBM40T	8,000 lbs	257"	11 mph	68.9 fbm	15%	120.5"
05-8FBM45T	9,000 lbs	257"	11 mph	68.9 fbm	14%	121.1"
05-8FBM50T	11,000 lbs	257"	11 mph	65 fbm	13%	126.5"
9FBM60T	13,000 lbs	257"	11 mph	75 fbm	19%	146"
9FBM70T	15,500 lbs	257"	11 mph	71 fbm	18%	146"
9FBM80T	17,500 lbs	132"	11 mph	63 fbm	16%	146.5"
9FBH80T	17,500 lbs	132"	10 mph	63 fbm	16%	152"

Model Number	Load Capacity
8FBH15	3,000 lbs
8FBH18	3,500 lbs
8FBH20	4,000 lbs
8FBH25	5,000 lbs
8FB30	6,000 lbs
8FBJ35	7,000 lbs
05-9FBMK20T	4,000 lbs
05-9FBMK25T	5,000 lbs
05-9FBM25T	5,000 lbs
05-9FBH25T	5,500 lbs
05-9FBMK30T	6,000 lbs
05-9FBM30T	6,000 lbs
05-9FBH30T	6,500 lbs
05-9FBM35T	7,000 lbs
05-8FBM40T	8,000 lbs
05-8FBM45T	9,000 lbs
05-8FBM50T	11,000 lbs
9FBM60T	13,000 lbs
9FBM70T	15,500 lbs
9FBM80T	17,500 lbs
9FBH80T	17,500 lbs

Model Number	Max Mast Height**
8FBH15	237.5"
8FBH18	237.5"
8FBH20	237.5"
8FBH25	237.5"
8FB30	237.5"
8FBJ35	237.5"
05-9FBMK20T	257"
05-9FBMK25T	257"
05-9FBM25T	257"
05-9FBH25T	257"
05-9FBMK30T	257"
05-9FBM30T	257"
05-9FBH30T	257"
05-9FBM35T	257"
05-8FBM40T	257"
05-8FBM45T	257"
05-8FBM50T	257"
9FBM60T	257"
9FBM70T	257"
9FBM80T	132"
9FBH80T	132"

Model Number	Max Full Load Travel Speed
8FBH15	9 mph
8FBH18	9 mph
8FBH20	9 mph
8FBH25	10 mph
8FB30	13 mph
8FBJ35	11.8 mph
05-9FBMK20T	11.8 mph
05-9FBMK25T	11.8 mph
05-9FBM25T	11.8 mph
05-9FBH25T	11.8 mph
05-9FBMK30T	11.8 mph
05-9FBM30T	11.8 mph
05-9FBH30T	11.8 mph
05-9FBM35T	11.8 mph
05-8FBM40T	11 mph
05-8FBM45T	11 mph
05-8FBM50T	11 mph
9FBM60T	11 mph
9FBM70T	11 mph
9FBM80T	11 mph
9FBH80T	10 mph

Model Number	Max Full Load Lift Speed
8FBH15	83 fbm
8FBH18	83 fbm
8FBH20	71 fbm
8FBH25	71 fbm
8FB30	75 fbm
8FBJ35	73 fbm
05-9FBMK20T	90.5 fbm
05-9FBMK25T	90.6 fbm
05-9FBM25T	90.6 fbm
05-9FBH25T	78.7 fbm
05-9FBMK30T	78.7 fbm
05-9FBM30T	78.7 fbm
05-9FBH30T	78.7 fbm
05-9FBM35T	72.8 fbm
05-8FBM40T	68.9 fbm
05-8FBM45T	68.9 fbm
05-8FBM50T	65 fbm
9FBM60T	75 fbm
9FBM70T	71 fbm
9FBM80T	63 fbm
9FBH80T	63 fbm

Model Number	Max Full Loadgradeability
8FBH15	19%
8FBH18	19%
8FBH20	20%
8FBH25	19%
8FB30	17%
8FBJ35	20%
05-9FBMK20T	31%
05-9FBMK25T	25%
05-9FBM25T	25%
05-9FBH25T	75%
05-9FBMK30T	23%
05-9FBM30T	23%
05-9FBH30T	23%
05-9FBM35T	20%
05-8FBM40T	15%
05-8FBM45T	14%
05-8FBM50T	13%
9FBM60T	19%
9FBM70T	18%
9FBM80T	16%
9FBH80T	16%

Model Number	Basic Right Angle Stack*
8FBH15	85.6"
8FBH18	85.6"
8FBH20	94.5"
8FBH25	85.6"
8FB30	86"
8FBJ35	94.5"
05-9FBMK20T	104.1"
05-9FBMK25T	104.1"
05-9FBM25T	110"
05-9FBH25T	110.6"
05-9FBMK30T	105.4"
05-9FBM30T	110.8"
05-9FBH30T	111.5"
05-9FBM35T	111.8"
05-8FBM40T	120.5"
05-8FBM45T	121.1"
05-8FBM50T	126.5"
9FBM60T	146"
9FBM70T	146"
9FBM80T	146.5"
9FBH80T	152"

*Based on 24″ load center
**Maximum available mast height option. See spec sheet for more height options. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.

VOLTAGE

48 – 80 V

FULL LOAD TRAVEL SPEED

10 – 12.4 mph

OVERALL WIDTH

47 – 56.7"

Request a Quote

Overview

The Toyota Electric Pneumatic is a green, outdoor forklift solution. Instead of supplementing your indoor electric fleet with IC counterparts for your outdoor application, the Electric Pneumatic provides an all-electric option for both indoor and outdoor use.

Performance

UL-E conformity
80 V electrical system
3-way hydraulic control valve
Digital multifunction display
Regenerative braking
AC controller with MOSFET Design
Transistor controlled AC lift & drive Motors

Ergonomics

ORS non-suspension vinyl seat
Retractable seat belt (non-clinching)
Heavy-duty non-slip floor mat
Memory tilt steering column

Safety Features

System of Active Stability (SAS)
Operator Presence Sensing System (OPSS)
Double-action parking brake
Electric horn
Overhead guard

Ease of Service

AC drive motor
Easy access no-tools floorboard
Battery compartment hood assist
Planned maintenance indicator
CAN bus controller wiring

					Options


							Planned Maintenance
								Reduce downtime, lower overall repair costs, and improve safety and compliance

							Cascade Integral Sideshifter
								Enhanced capacity and operator visibility

							T-Matics Vehicle Management System
								Real-time monitoring of forklift usage, operator performance, and maintenance needs

Get updates from Summit

Home Toyota Page 7

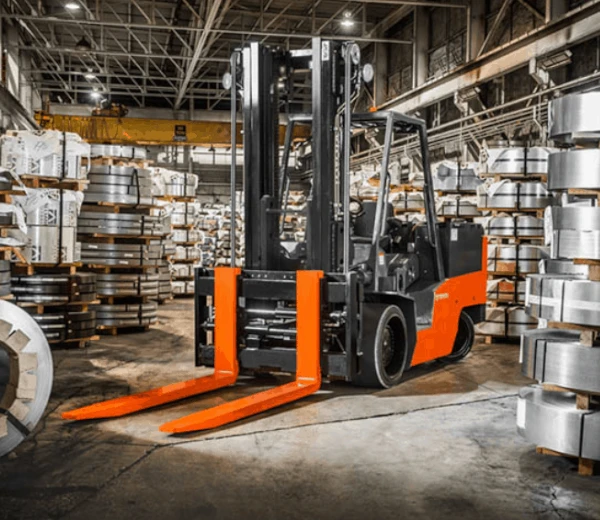

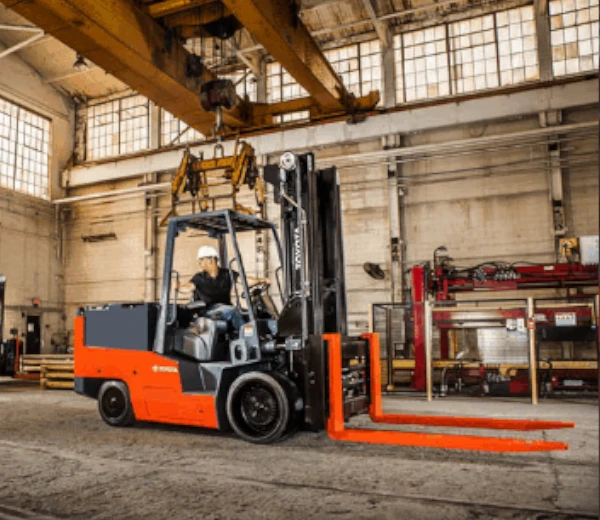

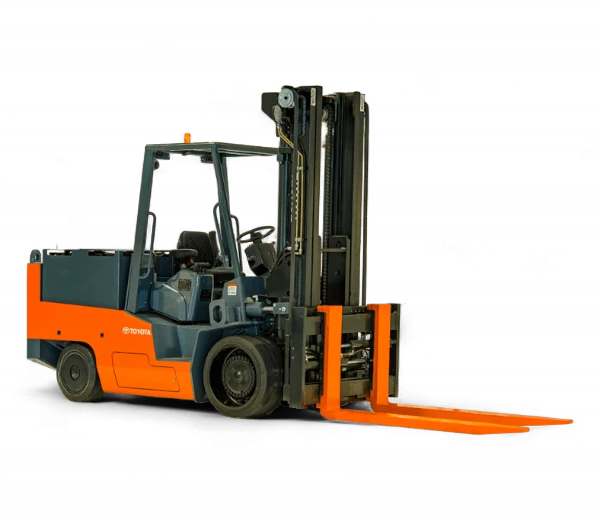

Toyota High Capacity Electric Indoor Forklift

For the Heaviest Indoor Material Handling Needs

The Toyota High Capacity Electric Indoor Forklift provides lower operating costs from reduced fuel and maintenance expenses, environmental advantages with zero emissions and lower noise, and improved operator comfort due to less noise and vibration. These high-capacity models are designed for heavy-duty indoor work, providing the lifting power to move massive loads while maintaining the maneuverability needed for indoor environments.

Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.

Request a Quote

Toyota High Capacity Electric Indoor Spec Sheet Toyota High Capacity Electric Indoor Brochure Toyota High Capacity Electric Indoor Catalog

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Max Full Load Travel Speed	Max Full Load Lift Speed	Max Full Load Gradeability	Basic Right Angle Stack*	Load Center
THDE1500-24	15,000 lbs	5.2 mph	39.5 fpm	15%	134"	24"
THDE1800-24	18,000 lbs	5 mph	39.5 fpm	22.5%	139.2"	24"
THDE2000-24	20,000 lbs	4.7 mph	34.5 fpm	19.9%	140"	24"
THDE2200-24	22,000 lbs	4.6 mph	34.5 fpm	18.7%	140"	24"
THDE3000-24	30,000 lbs	4.1 mph	24 fpm	13.1%	153.8"	24"
THDE3000-30	30,000 lbs	4.1 mph	24 fpm	12.5%	156.35"	30"
THDE3500-24	35,000 lbs	4 mph	24 fpm	12%	156.3"	24"
THDE3500-30	35,000 lbs	3.9 mph	16 fpm	10.8%	173.5"	30"
THDE4000-24	40,000 lbs	3.7 mph	16 fpm	10.6%	173.5"	24"
THDE4000-30	40,000 lbs	3.7 mph	16 fpm	9.9%	173.5"	30"

Model Number	Load Capacity
THDE1500-24	15,000 lbs
THDE1800-24	18,000 lbs
THDE2000-24	20,000 lbs
THDE2200-24	22,000 lbs
THDE3000-24	30,000 lbs
THDE3000-30	30,000 lbs
THDE3500-24	35,000 lbs
THDE3500-30	35,000 lbs
THDE4000-24	40,000 lbs
THDE4000-30	40,000 lbs

Model Number	Max Full Load Travel Speed
THDE1500-24	5.2 mph
THDE1800-24	5 mph
THDE2000-24	4.7 mph
THDE2200-24	4.6 mph
THDE3000-24	4.1 mph
THDE3000-30	4.1 mph
THDE3500-24	4 mph
THDE3500-30	3.9 mph
THDE4000-24	3.7 mph
THDE4000-30	3.7 mph

Model Number	Max Full Load Lift Speed
THDE1500-24	39.5 fpm
THDE1800-24	39.5 fpm
THDE2000-24	34.5 fpm
THDE2200-24	34.5 fpm
THDE3000-24	24 fpm
THDE3000-30	24 fpm
THDE3500-24	24 fpm
THDE3500-30	16 fpm
THDE4000-24	16 fpm
THDE4000-30	16 fpm

Model Number	Max Full Load Gradeability
THDE1500-24	15%
THDE1800-24	22.5%
THDE2000-24	19.9%
THDE2200-24	18.7%
THDE3000-24	13.1%
THDE3000-30	12.5%
THDE3500-24	12%
THDE3500-30	10.8%
THDE4000-24	10.6%
THDE4000-30	9.9%

Model Number	Basic Right Angle Stack*
THDE1500-24	134"
THDE1800-24	139.2"
THDE2000-24	140"
THDE2200-24	140"
THDE3000-24	153.8"
THDE3000-30	156.35"
THDE3500-24	156.3"
THDE3500-30	173.5"
THDE4000-24	173.5"
THDE4000-30	173.5"

Model Number	Load Center
THDE1500-24	24"
THDE1800-24	24"
THDE2000-24	24"
THDE2200-24	24"
THDE3000-24	24"
THDE3000-30	30"
THDE3500-24	24"
THDE3500-30	30"
THDE4000-24	24"
THDE4000-30	30"

*Add load length and clearance
Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.

LOAD CAPACITY

15,000 – 40,000 LBS

LOAD CENTER

24 – 30"

FULL LOAD TRAVEL SPEED

3.7 – 5.2 mph

Request a Quote

Overview

Every forklift in the Toyota heavy-duty line comes equipped with a MD4.7″ touchscreen display. It combines the rugged power of the heavy-duty model lineup with the latest advancements in forklift technology to put ultimate customization, advanced diagnostics, and pertinent forklift information right at your fingertips.

Performance

Load-sensing hydraulic system
Transistor control monitors
Hydraulic multi-gauge
Heavy-duty planetary drive axle
Drum-type brake system

Ergonomics

Finger-tip hydraulic controls
Tilt steering column
2.75 turn lock-to-lock steering wheel
Left-hand shift lever
Low-height, non-skid steps

Safety Features

Safety valves in cylinder bases
Emergency stop
Overhead guard
Cab meets ANSI requirements

Ease of Service

Brakes serviceable without removing entire drive axle
Readily accessible lubrication points
Easily accessible drive motor
Rust-inhibiting polyurethane paint
Easy seal replacement on chrome-plated rod cylinders

					Options


							Planned Maintenance
								Reduce downtime, lower overall repair costs, and improve safety and compliance

							SEnS Smart Environment Sensor™
								Detects pedestrians and objects for enhanced safety

							SEnS+ Smart Environment Sensor Plus
								Stereoscopic camera detects pedestrians and objects up to 32’

							Backup Alarm
								Loudly and automatically alert

							360° Camera
								Bird's eye view to aid navigation in tight spaces

							Load Weight Sensor
								Prevent strains from overloading

							MyInsights® Telematics
								Predictive maintenance through error code alerts

							Strobe Light
								Bright, sharp flashes to quickly capture attention

Get updates from Summit

Home Toyota Page 7

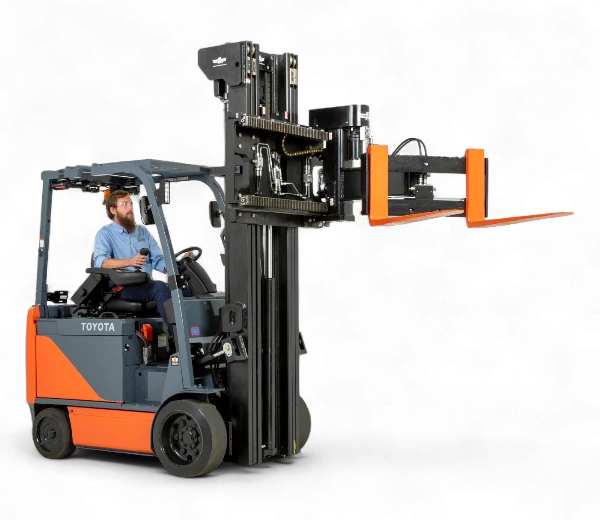

Toyota Electric Turret Special Forklift

Swinging Forkface that Increases Productivity in Confined Warehouse Spaces

Narrow aisle storage is more accessible than ever with Toyota’s Core Electric Turret Forklift. Warehouse optimization can help drive efficiency to match accelerating demand. When racks get closer and aisles get narrower, the Electric Turret Forklift provides a capacity of up to 2500 pounds, a lift height of nearly 20 feet, and the capability to stack goods at a 90° angle.

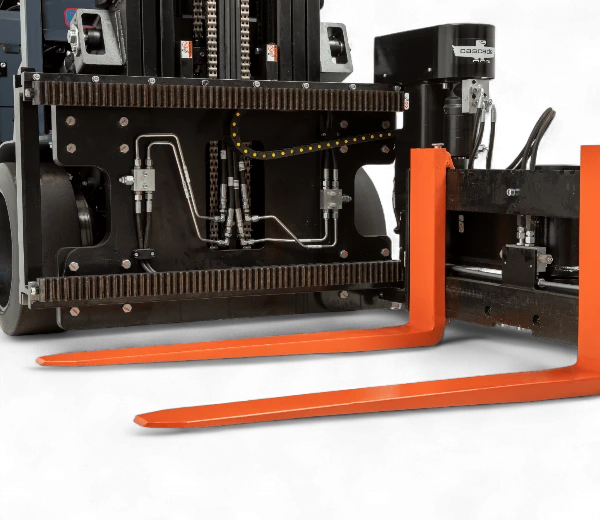

Featuring a Cascade mast and turret head, the swinging forkface allows loads to be handled to the forklift’s left, right, and center. Now you can increase your productivity even in the narrowest aisles.

Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.

Request a Quote

Toyota Core Electric Turret Attachment Brochure

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Mast Sizes	Overall Height	Overall Length	Overall Width	Voltage
8FBC32U	2,500 lbs	188" / 238"	95.6 – 117.2"	130"	51 – 59"	36/38 V

Model Number	Load Capacity
8FBC32U	2,500 lbs

Model Number	Mast Sizes
8FBC32U	188" / 238"

Model Number	Overall Height
8FBC32U	95.6 – 117.2"

Model Number	Overall Length
8FBC32U	130"

Model Number	Overall Width
8FBC32U	51 – 59"

Model Number	Voltage
8FBC32U	36/38 V

Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.

MAXIMUM FORK HEIGHT

188 – 238"

LOAD CAPACITY

2,500 LBS

FREE LIFT

62 – 83"

Request a Quote

Overview

Toyota’s Core Electric Turret Forklift is a material handling solution designed for efficient narrow-aisle storage and operations. Featuring a Cascade mast and turret truck head, the swinging forkface allows loads to be handled to the forklift’s left, right, and center. This innovative design maximizes storage capacity by enabling narrower aisles and increases productivity in confined warehouse spaces.

Performance

Handle loads and place them on racks to the left, right, and center of the forklift
90° versatility combined with superior lifting power
Heights of almost 20 feet

Ergonomics

Strategically configured instrument display
On-demand hydrostatic power steering
Dual operator assist grips
11.8″ diameter two-spoke steering wheel
Cowl-mounted hydraulic controls
Heavy-duty non-slip floor mat
Electric directional shift control

Safety Features

Active control rear stabilizer
Active mast function control
Automatic travel speed control
Emergency cut-off switch
Electromagnetic parking brake

Ease of Service

Brushless AC motors
Fewer moving parts
Regenerative braking

					Options


							Planned Maintenance
								Reduce downtime, lower overall repair costs, and improve safety and compliance

							SEnS+ Smart Environment Sensor Plus
								Stereoscopic camera detects pedestrians and objects up to 32’

Get updates from Summit

Home Toyota Page 7

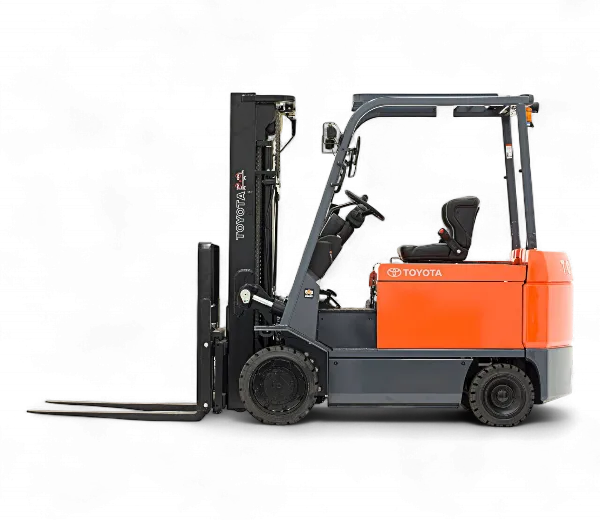

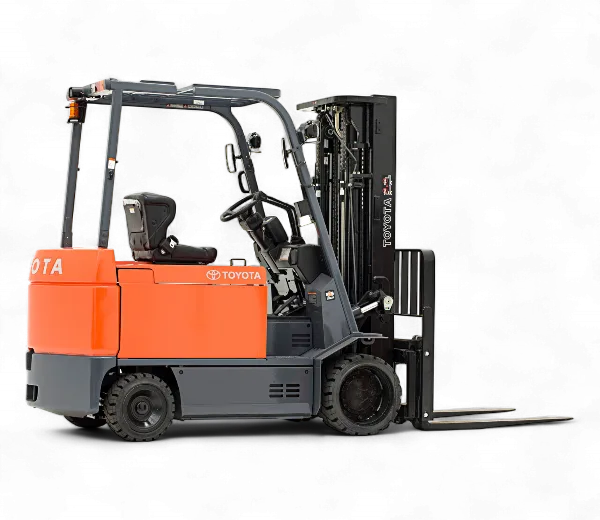

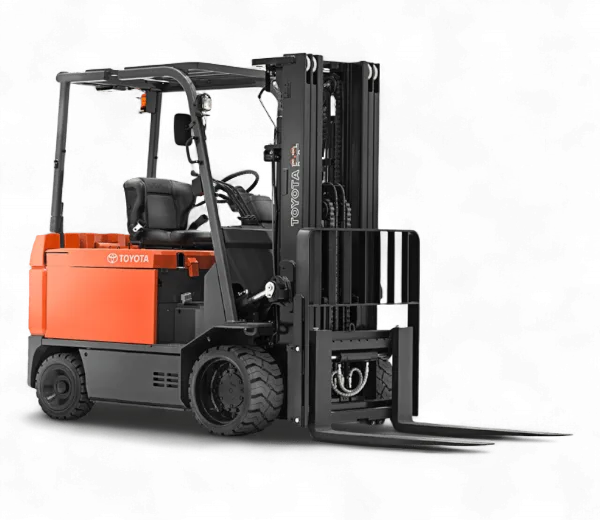

Toyota Large Electric Indoor Forklift

It Speaks Softly & Carries a Big Lift!

Toyota’s Large Electric Forklift gets the job done, quietly and reliably. With 12,000 pounds of lifting power, this zero-emissions ride is perfect for tackling your toughest warehousing challenges, even in the food and beverage industries.

Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.

Request a Quote

Toyota Large Electric Indoor Forklift Brochure Toyota Large Electric Indoor Forklift Spec Sheet

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Max Full Load Travel Speed	Max Full Load Lift Speed	Max Full Load Gradeability	Basic Right Angle Stack**
7FBCU35	8,000 lbs	36 V: 8.4 mph / 48 V: 10.9 mph	36 V: 51.2 fpm / 48 V: 72.9 fpm	36 V: 16% / 48 V: 22%	102.6"
7FBCU45	10,000 lbs	36 V: 7.8 mph / 48 V: 10.9 mph	36 V: 43 fpm / 48 V: 57 fpm	36 V: 13% / 48 V: 18%	106.7"
7FBCU55	12,000 lbs	36 V: 7.5 mph / 48 V: 9.3 mph	36 V: 37 fpm / 48 V: 53 fpm	36 V: 14% / 48 V: 20%	116.9"

Model Number	Load Capacity
7FBCU35	8,000 lbs
7FBCU45	10,000 lbs
7FBCU55	12,000 lbs

Model Number	Max Full Load Travel Speed
7FBCU35	36 V: 8.4 mph / 48 V: 10.9 mph
7FBCU45	36 V: 7.8 mph / 48 V: 10.9 mph
7FBCU55	36 V: 7.5 mph / 48 V: 9.3 mph

Model Number	Max Full Load Lift Speed
7FBCU35	36 V: 51.2 fpm / 48 V: 72.9 fpm
7FBCU45	36 V: 43 fpm / 48 V: 57 fpm
7FBCU55	36 V: 37 fpm / 48 V: 53 fpm

Model Number	Max Full Load Gradeability
7FBCU35	36 V: 16% / 48 V: 22%
7FBCU45	36 V: 13% / 48 V: 18%
7FBCU55	36 V: 14% / 48 V: 20%

Model Number	Basic Right Angle Stack**
7FBCU35	102.6"
7FBCU45	106.7"
7FBCU55	116.9"

*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.

LOAD CAPACITY

2000 – 8000 LBS

FULL LOAD TRAVEL SPEED

7.5 – 10.9 MPH

ELECTRICAL

36 / 48 V

Request a Quote

Overview

The ruggedly designed Toyota Large Electric forklift has been built to withstand your toughest warehouse jobs while keeping the operator comfortable and emissions at bay.

Performance

AC drive system
UL Approved Model Type E
Three forms of energy regeneration
Digital multifunction display
Built-in analyzer
Self-diagnostics
Punched plate entry/exit step

Ergonomics

Strategically configured instrument display
Hydrostatic power steering
Dual operator assist grips
Electric directional shift control
Memory tilt steering column
Two-spoke steering wheel
Cowl-mounted hydraulic controls

Safety Features

System of Active Stability (SAS)
Operator Presence Sensing System (OPSS)
Key lowering interlock
Double-action parking brake
Bolt-on overhead guard
Electric horn

Ease of Service

AC drive motor
Easy access hydraulic motor
Easy access, no tools floorboard
Battery compartment hood assist dampers
Planned maintenance indicator
Easy access controller

					Options


							Planned Maintenance
								Reduce downtime, lower overall repair costs, and improve safety and compliance

							T-Matics Vehicle Management System
								Real-time monitoring of forklift usage, operator performance, and maintenance needs

							Polycarbonate or Acrylic Mirrors
								Shatterproof design that is impact resistant

							Polycarbonate Overhead Cover
								Prevents work stoppages due to bad weather

							Quick Disconnects
								Single or double for fast, easy, and tool-free changes

							Cloth Swivel Seat
								Reduces neck and back strain. Easier entry and exit

Get updates from Summit

Home Toyota Page 7

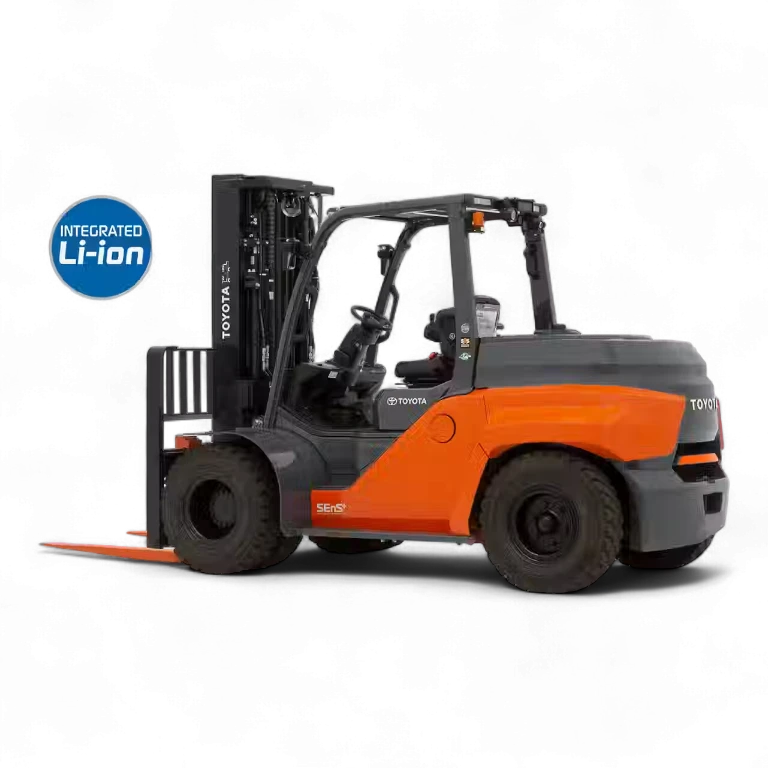

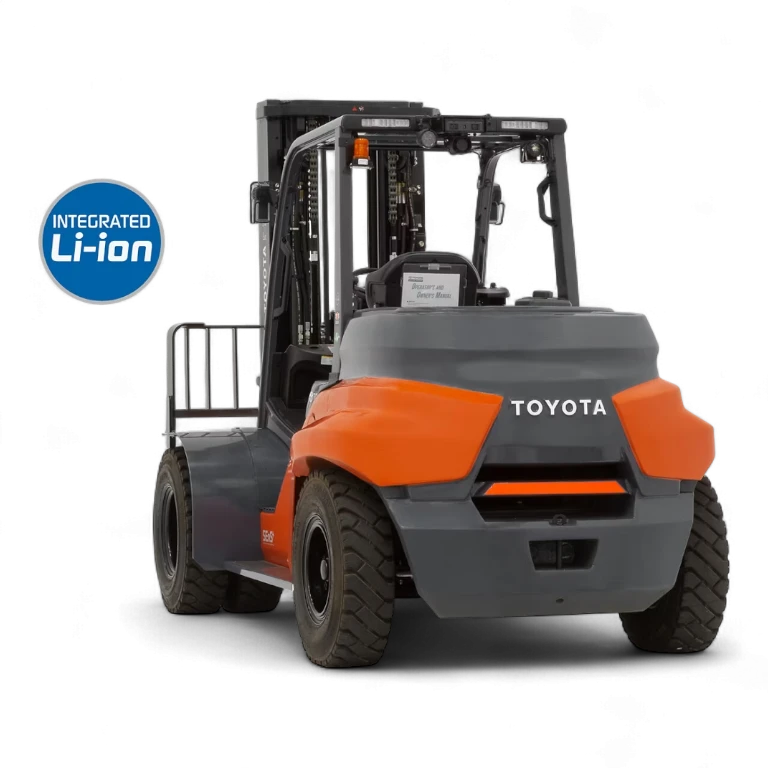

Toyota Integrated Large Electric Pneumatic Forklift

When you need to Boost Productivity, rely on the Integrated Large Electric Pneumatic

Toyota’s Integrated Large Electric Pneumatic Forklift is the reliable and durable solution you need to handle all of your material handling tasks. This forklift packs the power you’d expect from an internal combustion forklift, but it’s all electric.

Equipped with a proprietary, custom-designed lithium-ion battery, this forklift is built with the power your operation needs to take your business to the next level. The Integrated Large Electric Pneumatic was designed to excel in applications such as lumber yards, construction sites, and heavy-duty manufacturing facilities.

Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.

Request a Quote

Toyota Integrated Large Electric Pneumatic Forklift Brochure Toyota Integrated Large Electric Pneumatic Forklift Spec Sheet

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Max Fork Height	Overall Width	Turning Radius Outside	Max Full Load Travel Speed	Max. Lifting Speed	Basic Right Angle Stack
9FBZ60U	13,500 lbs	120.5"	78.7"	128.1"	11.6 mph	12.4 fpm	150.9"
9FBZ70U	15,500 lbs	120.5"	78.7"	129.8"	11.6 mph	12.4 fpm	152.9"
9FBZ70U	17,500 lbs	121"	78.7"	131.3"	11.3 mph	12.4 fpm	154.6"

Model Number	Load Capacity
9FBZ60U	13,500 lbs
9FBZ70U	15,500 lbs
9FBZ70U	17,500 lbs

Model Number	Max Fork Height
9FBZ60U	120.5"
9FBZ70U	120.5"
9FBZ70U	121"

Model Number	Overall Width
9FBZ60U	78.7"
9FBZ70U	78.7"
9FBZ70U	78.7"

Model Number	Turning Radius Outside
9FBZ60U	128.1"
9FBZ70U	129.8"
9FBZ70U	131.3"

Model Number	Max Full Load Travel Speed
9FBZ60U	11.6 mph
9FBZ70U	11.6 mph
9FBZ70U	11.3 mph

Model Number	Max. Lifting Speed
9FBZ60U	12.4 fpm
9FBZ70U	12.4 fpm
9FBZ70U	12.4 fpm

Model Number	Basic Right Angle Stack
9FBZ60U	150.9"
9FBZ70U	152.9"
9FBZ70U	154.6"

LOAD CAPACITY

13,500 – 17,500 lbs

TURNING RADIUS OUTSIDE

128.1 – 131.3"

MAXIMUM TRAVEL SPEED

11.3 – 11.6 mph

Request a Quote

Overview

Toyota’s Integrated Electric Forklifts not only come equipped with power, but they’re also designed with the same mindfulness as our other electric products. Operators will appreciate the reduced vibration and noise levels provided by the floating cab design, which can further reduce back stress and fatigue. Additionally, this forklift comes equipped with a proprietary, custom-designed lithium-ion battery, delivering maximum productivity shift after shift.

You can also feel secure knowing that these lifts are built with patented features, such as the System of Active Stability (SAS), which engages additional safety features during operation. These lifts also come with an optional SEnS+ Smart Environment Sensor Plus, a highly innovative technology that assists operators in identifying pedestrians or objects during a shift.

Performance

Integrated Lithium-Ion battery
90 V electrical system
AC drive system
AC lift system
AC steering
Electronic hydraulic controls
Programmable hydraulics
UL Approved Type E
Energy regeneration: coast control, plug braking, foot braking

Ergonomics

Strategically configured instrument display
On-demand hydrostatic power steering
Dual operator assist grips
11.8″ diameter two-spoke steering wheel
Cowl-mounted hydraulic controls
Heavy-duty non-slip floor mat
Electric directional shift control

Safety Features

System of Active Stability (SAS)
Operator Presence Sensing System (OPSS)
Bolt-on overhead guard
Key lowering interlock
Foot activated parking break
Manual return to neutral

Ease of Service

AC drive motor
Easy access hydraulic motor
Easy access, no tools floorboard
Battery compartment hood assist
Planned maintenance indicator
Easy access controllers

					Options


							Planned Maintenance
								Reduce downtime, lower overall repair costs, and improve safety and compliance

							SENS Smart Environment Sensor
								Detects pedestrians and objects for enhanced safety

							SEnS+ Smart Environment Sensor Plus
								Stereoscopic camera detects pedestrians and objects up to 32’

Get updates from Summit

Home Toyota Page 7

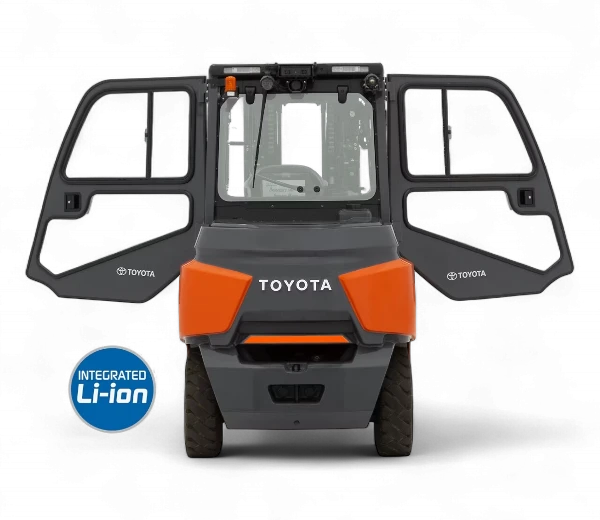

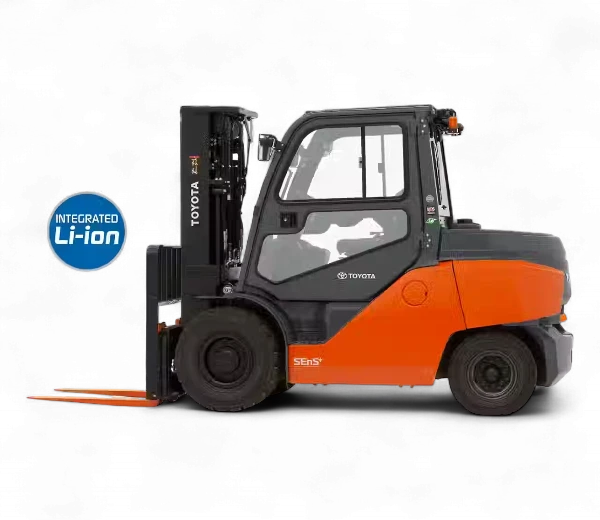

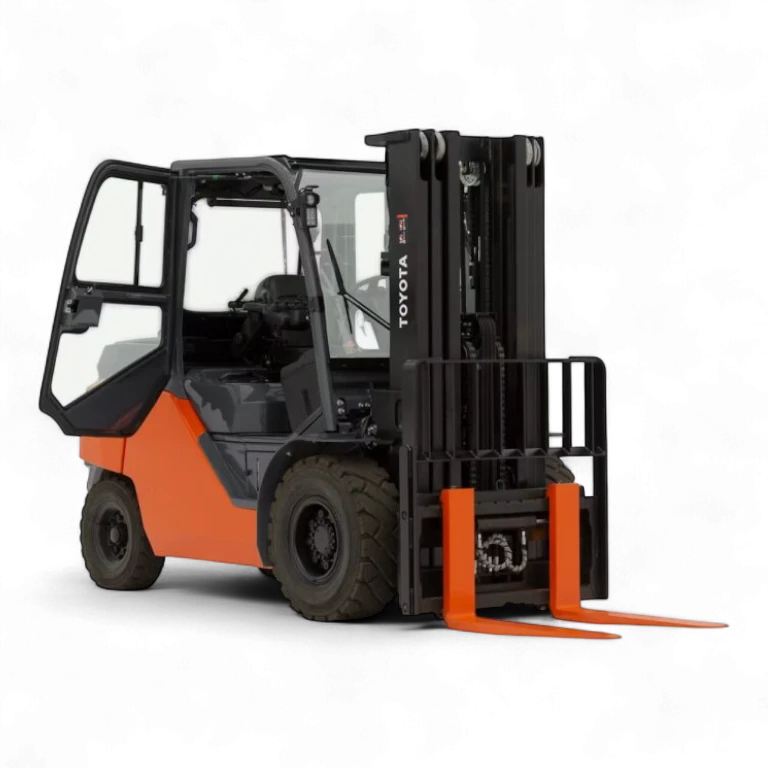

Toyota Integrated Mid Electric Pneumatic Forklift

It’s All Electric

The Toyota Integrated Mid Electric Pneumatic Forklift offers electric power and durability previously only found in internal combustion forklifts, providing a lifting capacity of 8,000-11,000 pounds for challenging mid-capacity applications, both indoor and outdoor.

It features a custom-designed lithium-ion battery system for extended run times, a robust design to withstand various weather conditions, and an integrated electric drive system, all designed for optimal operability, ergonomics, and productivity.

Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.

Request a Quote

Toyota Integrated Mid Electric Pneumatic Forklift Brochure Toyota Integrated Mid Electric Pneumatic Forklift Spec Sheet

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Max Fork Height	Turning Radius Outside	Max Full Load Travel Speed	Max Lifting Speed	Gradeability
9FBZ35U	8,000 lbs	120"	103.5"	14.1 mph	105 fpm	17.2%
9FBZ40U	9,000 lbs	120"	105.5"	13.9 mph	104 fpm	15.6%
9FBZ45U	10,000 lbs	120"	111.8"	13.5 mph	100 fpm	12.9%
9FBZ50U	11,000 lbs	120.5"	112.8"	13.5 mph	100 fpm	11.8%

Model Number	Load Capacity
9FBZ35U	8,000 lbs
9FBZ40U	9,000 lbs
9FBZ45U	10,000 lbs
9FBZ50U	11,000 lbs

Model Number	Max Fork Height
9FBZ35U	120"
9FBZ40U	120"
9FBZ45U	120"
9FBZ50U	120.5"

Model Number	Turning Radius Outside
9FBZ35U	103.5"
9FBZ40U	105.5"
9FBZ45U	111.8"
9FBZ50U	112.8"

Model Number	Max Full Load Travel Speed
9FBZ35U	14.1 mph
9FBZ40U	13.9 mph
9FBZ45U	13.5 mph
9FBZ50U	13.5 mph

Model Number	Max Lifting Speed
9FBZ35U	105 fpm
9FBZ40U	104 fpm
9FBZ45U	100 fpm
9FBZ50U	100 fpm

Model Number	Gradeability
9FBZ35U	17.2%
9FBZ40U	15.6%
9FBZ45U	12.9%
9FBZ50U	11.8%

LIFT CAPACITY

8,000 – 11,000 LBS

OUTSIDE TURNING RADIUS

103.5 – 112.8"

MAXIUMUM TRAVEL SPEED

13.5 – 14.1 MPH

Request a Quote

Overview

Toyota’s Integrated Electric Forklifts not only come equipped with power, but they’re also designed with the same mindfulness as our other electric products. Your operators will appreciate the reduced vibration and noise levels provided by the floating cab design, which can further reduce back stress and fatigue. Additionally, this forklift comes equipped with a proprietary, custom-designed lithium-ion battery, delivering maximum productivity shift after shift.

Performance

Integrated Lithium-Ion battery
90 V electrical system
AC drive system
AC lift system
AC steering
Electronic hydraulic controls

Ergonomics

Dash-mounted instrument display
11.8” diameter two-spoke steering wheel
Load-sensing power steering
Seat-mounted mini-lever hydraulic controls
Premium, full-suspension vinyl seat
Non-cinching seatbelt
Integrated headlight and turn signal lever
One-way automatic fork leveling
Poly-clear canopy

Safety Features

System of Active Stability (SAS)
Operator Presence Sensing System (OPSS)
Bolt-on overhead guard
Key lowering interlock
Electric horn
Automatic parking brake
Orange forks
Speed control
LED headlights
Key off, headlight off system

Ease of Service

Easy access, no tools floorboard
Hood assist damper with lock device
Easy lift hood with wide 75° opening
Easy access to common service items
Self-diagnostics
Built-in analysis

					Options


							Planned Maintenance
								Reduce downtime, lower overall repair costs, and improve safety and compliance

							3-Way Valve
								Operate an additional hydraulic attachment

							4-Way Valve
								Directional control for multi-directional travel; side-to-side, forward and backward

							Cascade Integral Sideshifter
								Enhanced capacity and operator visibility

							Cascade Component Guard
								Protect sensitive hydraulic and mechanical parts from damage, dirt, and debris

							SEnS+ Smart Environment Sensor Plus
								Stereoscopic camera detects pedestrians and objects up to 32’

							System of Active Stability (SAS)
								Sensors and actuators to prevent tip-overs

Get updates from Summit

Home Toyota Page 7

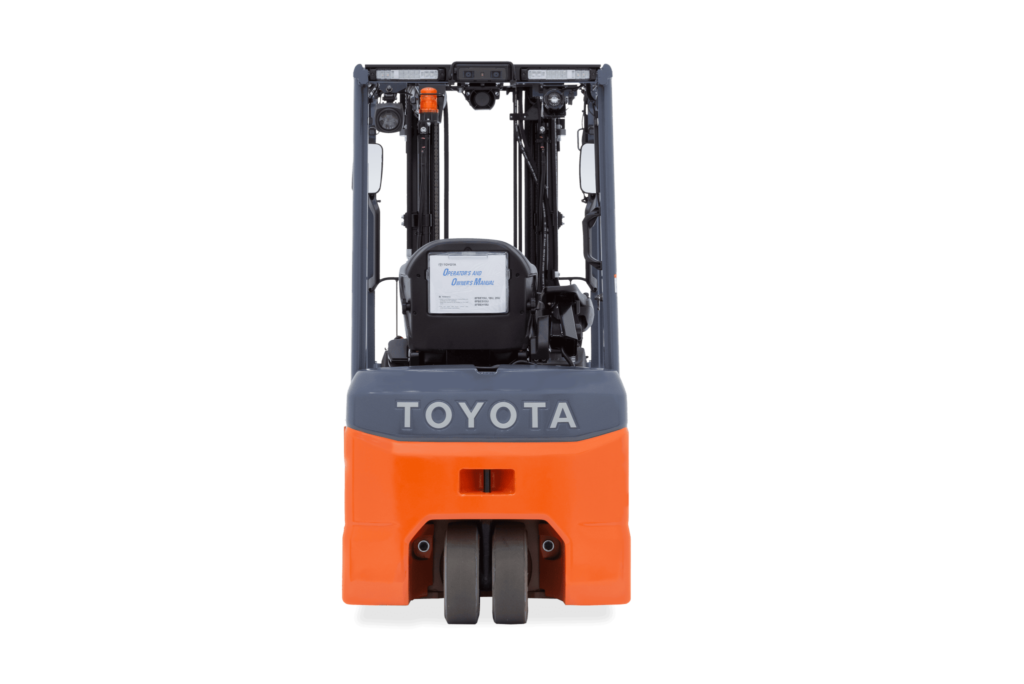

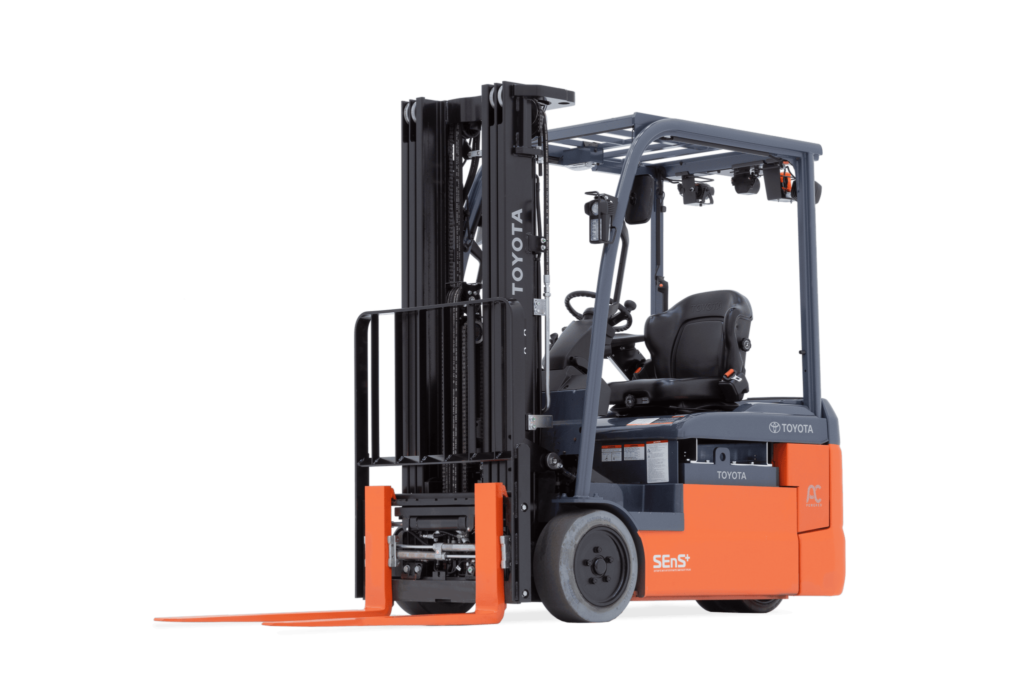

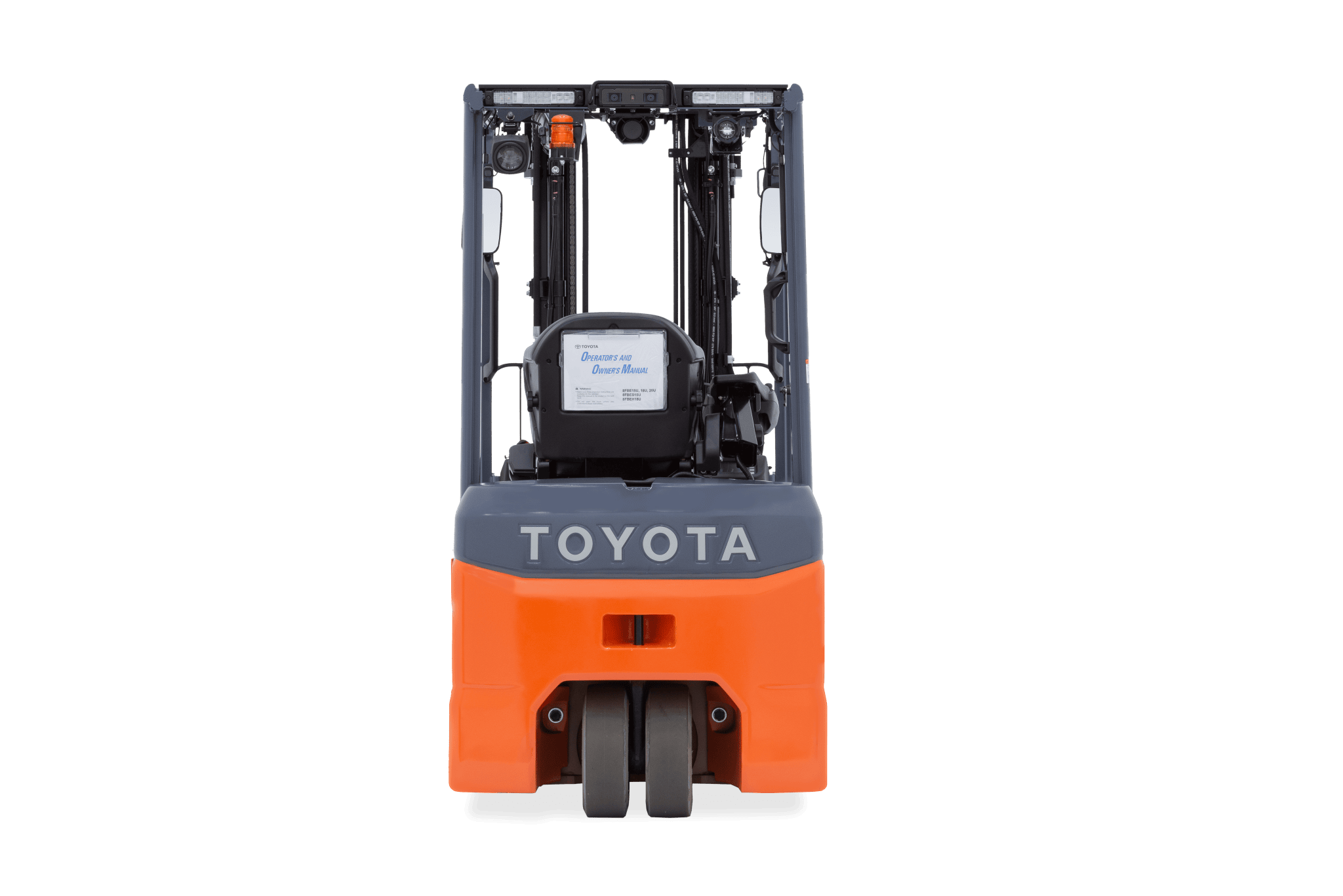

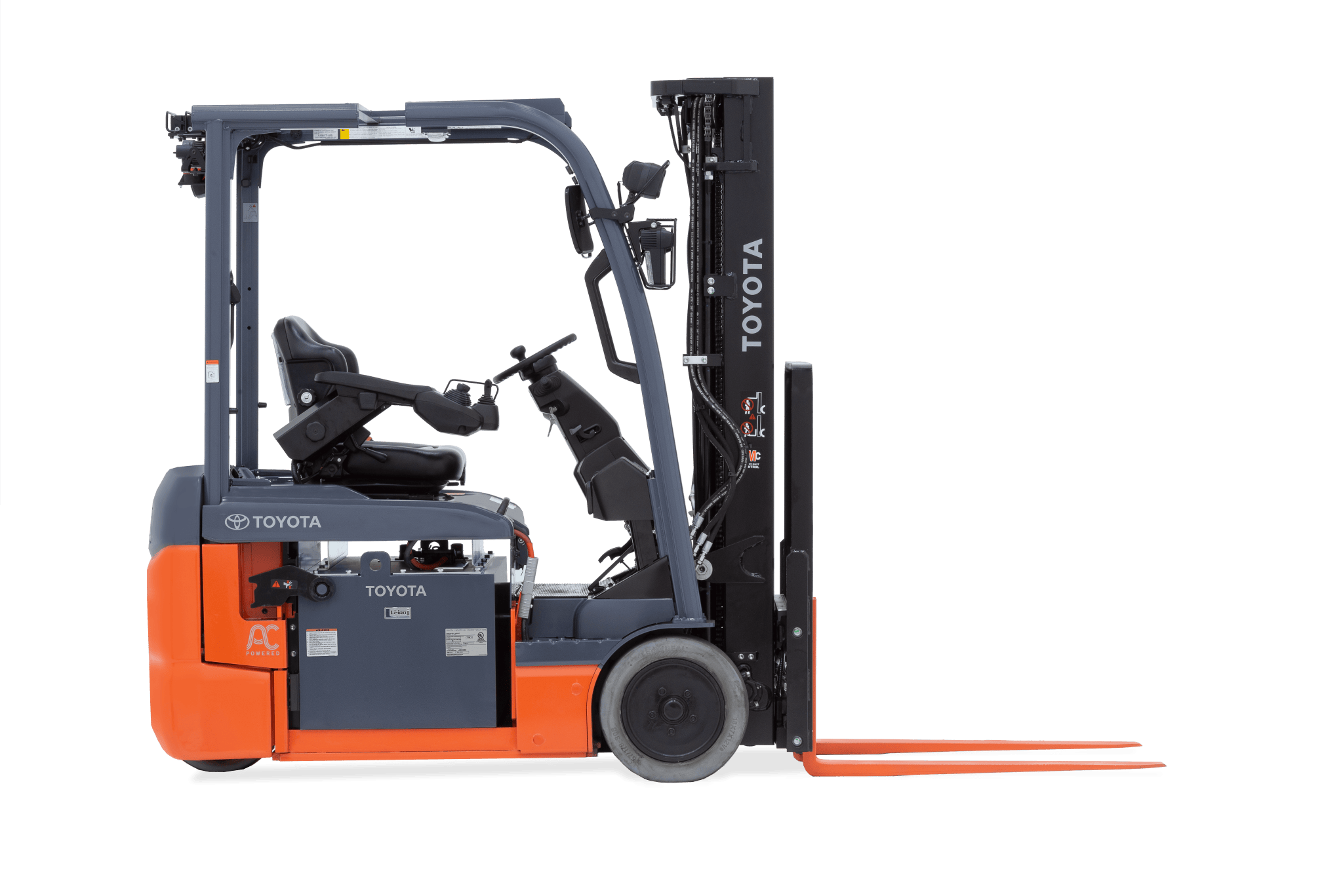

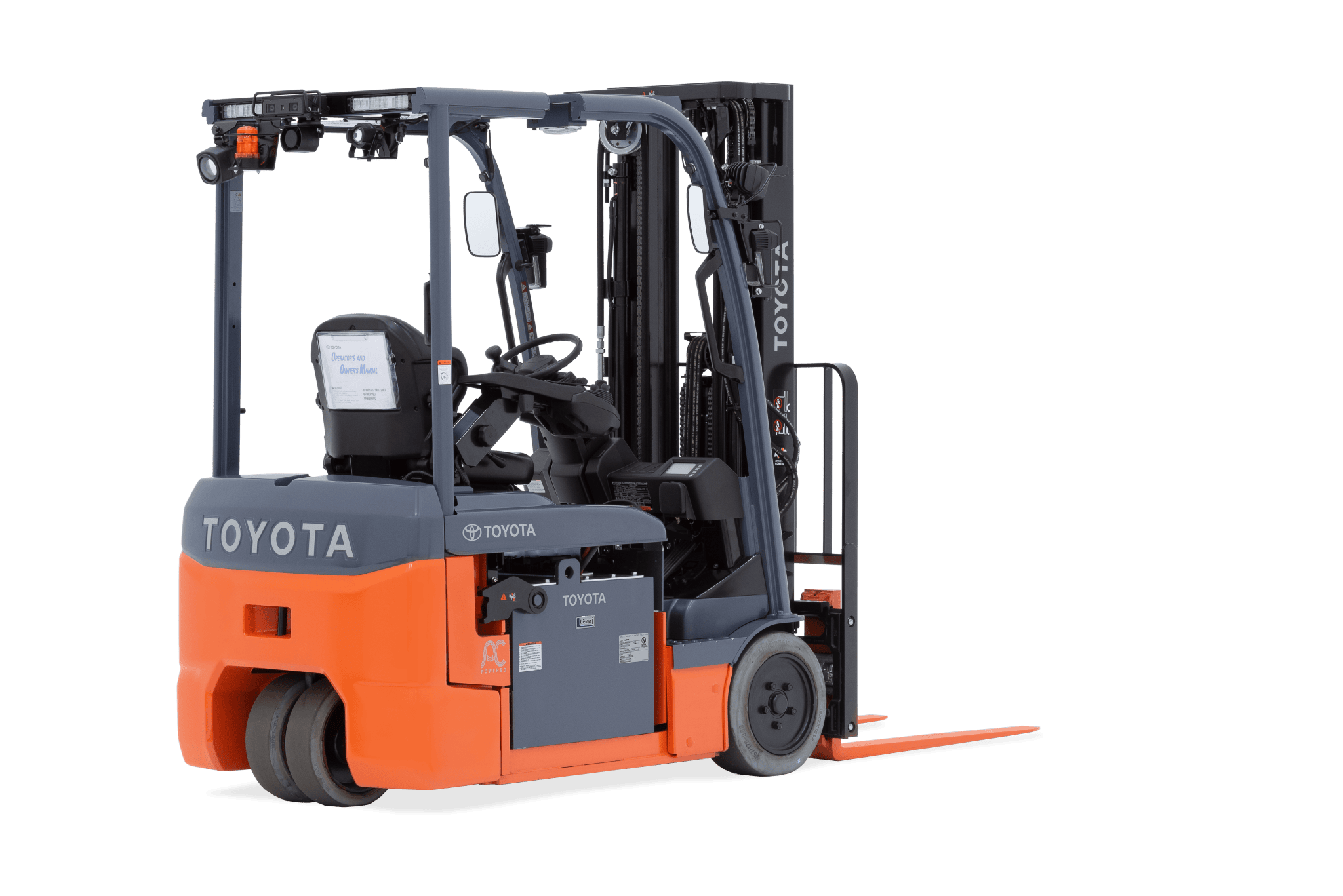

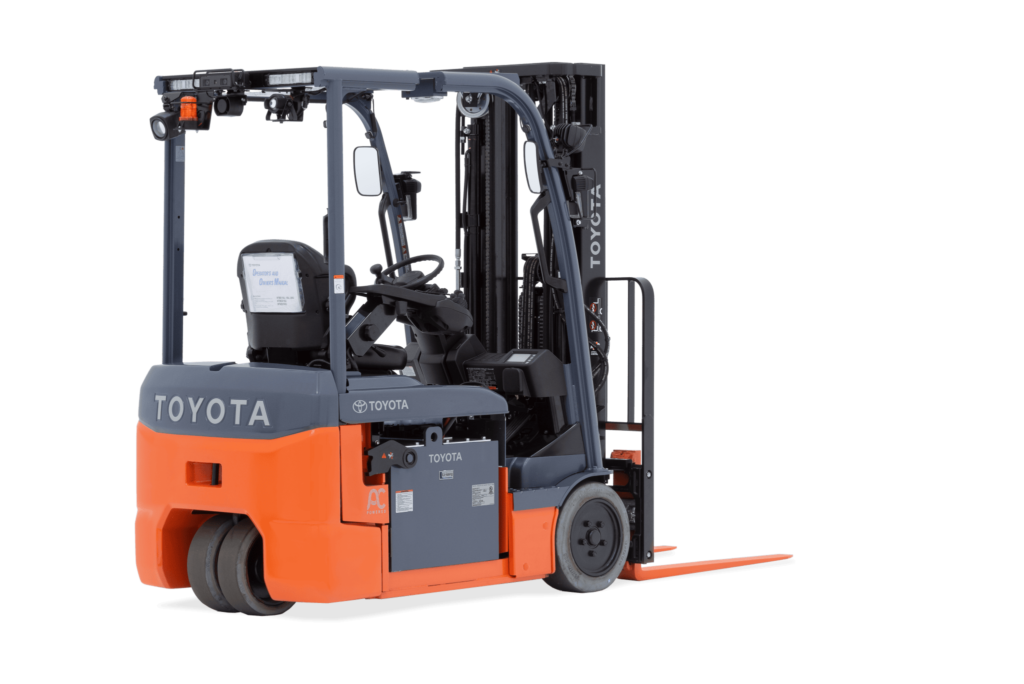

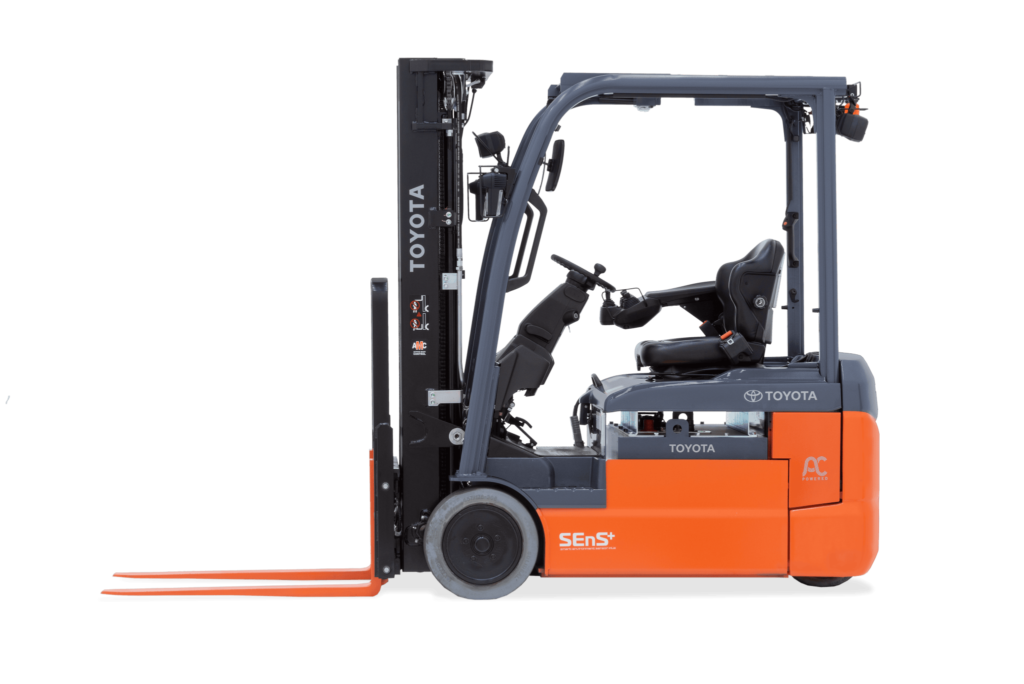

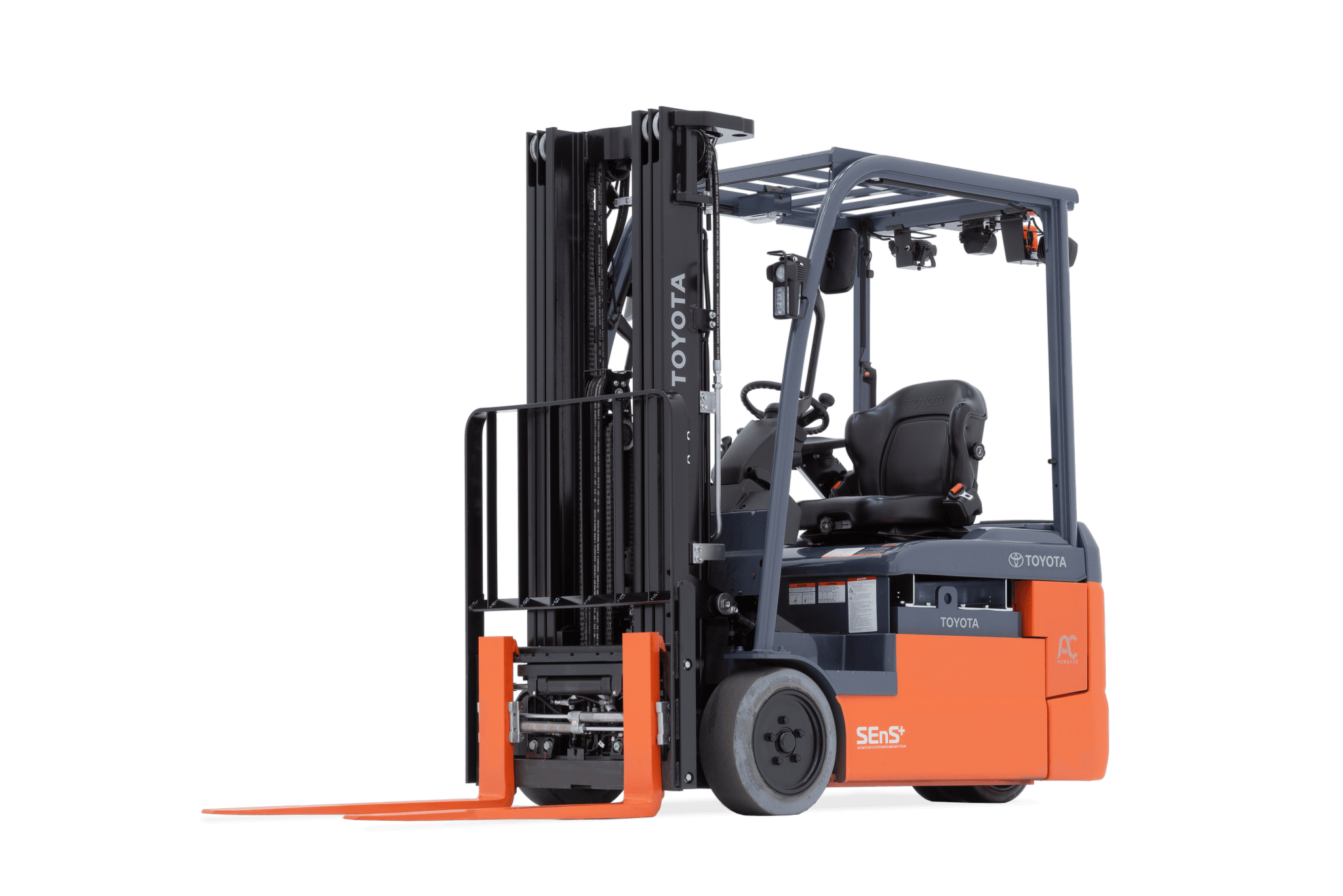

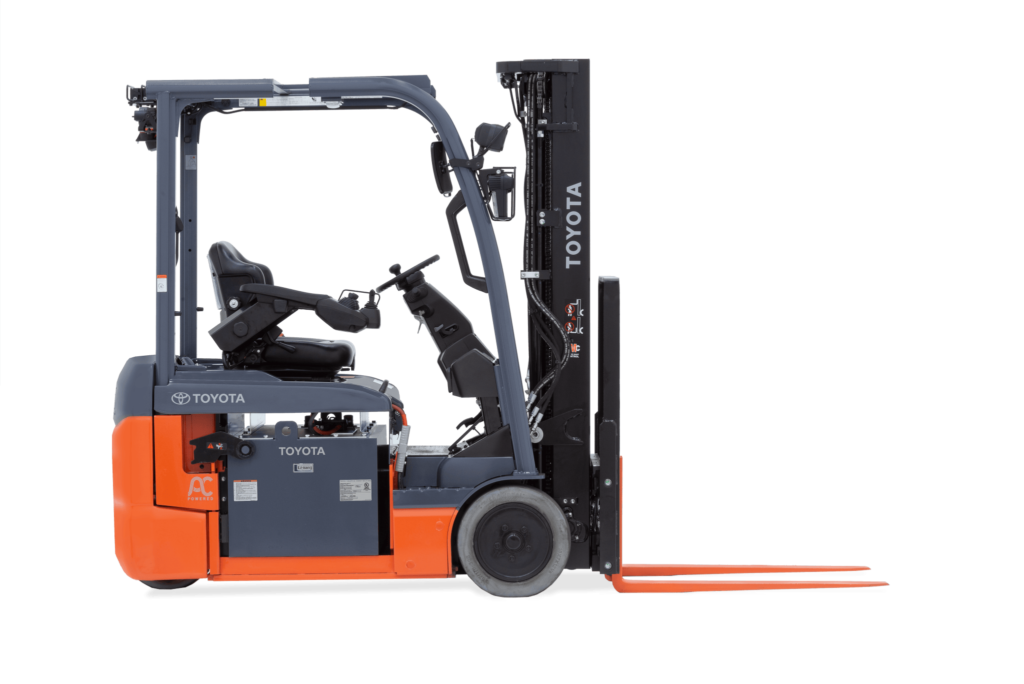

Toyota 3-Wheel Electric Forklift

Award Winning

The Toyota 3-Wheel Electric Forklift is a multi-use forklift that leads the material handling industry in run-time, travel speeds, and lift/lowering speeds. Available in a “short” model, the ergonomically pleasing, easy-to-maintain 3-Wheel Electric Forklift is an asset to any application, including narrow aisles and tight spaces.

Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.

Request a Quote

Toyota 3-Wheel Electric Spec Sheet Toyota 3-Wheel Electric Product Brochure

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Max Full Load Travel Speed	Max Full Load Lift Speed	Max Full Load Gradeability	Basic Right Angle Stack**
8FBE15U	3,000 lbs	36 V: 9.9 mph / 48 V: 10.2 mph	36 V: 77 fpm / 48 V: 94 fpm	27%	72.1"
8FBES15U	3,000 lbs	36 V: 9.9 mph / 48 V: 10.2 mph	36 V: 77 fpm / 48 V: 94 fpm	25%	68.9"
8FBE18U	3,500 lbs	36 V: 9.9 mph / 48 V: 10.2 mph	36 V: 71 fpm / 48 V: 89 fpm	24%	74.2"
8FBEH18U	3,500 lbs	36 V: 9.9 mph / 48 V: 10.2 mph	36 V: 71 fpm / 48 V: 89 fpm	24%	76.6"
8FBE20U	4,000 lbs	36 V: 9.7 mph / 48 V: 9.9 mph	36 V: 67 fpm / 48 V: 83 fpm	22%	77.2"

Model Number	Load Capacity
8FBE15U	3,000 lbs
8FBES15U	3,000 lbs
8FBE18U	3,500 lbs
8FBEH18U	3,500 lbs
8FBE20U	4,000 lbs

Model Number	Max Full Load Travel Speed
8FBE15U	36 V: 9.9 mph / 48 V: 10.2 mph
8FBES15U	36 V: 9.9 mph / 48 V: 10.2 mph
8FBE18U	36 V: 9.9 mph / 48 V: 10.2 mph
8FBEH18U	36 V: 9.9 mph / 48 V: 10.2 mph
8FBE20U	36 V: 9.7 mph / 48 V: 9.9 mph

Model Number	Max Full Load Lift Speed
8FBE15U	36 V: 77 fpm / 48 V: 94 fpm
8FBES15U	36 V: 77 fpm / 48 V: 94 fpm
8FBE18U	36 V: 71 fpm / 48 V: 89 fpm
8FBEH18U	36 V: 71 fpm / 48 V: 89 fpm
8FBE20U	36 V: 67 fpm / 48 V: 83 fpm

Model Number	Max Full Load Gradeability
8FBE15U	27%
8FBES15U	25%
8FBE18U	24%
8FBEH18U	24%
8FBE20U	22%

Model Number	Basic Right Angle Stack**
8FBE15U	72.1"
8FBES15U	68.9"
8FBE18U	74.2"
8FBEH18U	76.6"
8FBE20U	77.2"

LOAD CAPACITY

3,000 – 4,000 LBS

FULL LOAD TRAVEL SPEED

9.7 – 10.2 MPH

VOLTAGE

36 / 48 V

Request a Quote

Overview

Designed for durability, Toyota’s 3-Wheel Electric Forklifts offer easy access to components and are powered by maintenance-free AC motors. Typical applications include general warehousing and storage, manufacturing, food preparation and grocery operations, and applications requiring precise maneuvering in tight spaces.

Performance

36 / 48 V electrical system
AC drive and lift system
Digital multifunction display
UL Approved Type E
Built-in analyzer
Self-diagnostics
Punched plate entry/exit step

Ergonomics

Strategically configured instrument display
On-demand, hydrostatic power steering
Cowl-mounted hydraulic controls
Memory tilt steering column
Heavy-duty non-slip floor mat
Integrated switch for headlight and turn signal
Operator Restraint System (ORS) with full-suspension seat

Safety Features

Operator Presence Sensing System (OPSS)
Active Mast Control (AMC)
Load and height sensing turn speed control
Wet disc brakes
Bolt-on overhead guard
Forward tilt lift speed limitation

Ease of Service

Maintenance-free AC motor
Battery compartment hood assist dampers
Easy access no-tools floorboard
Programmable maintenance timer
Easy access controllers
Thermal protection monitor

					Options


							Planned Maintenance
								Reduce downtime, lower overall repair costs, and improve safety and compliance.

							Lithium-Ion Battery
								Long lifespan with more charge cycles

							Color LCD Multifunction Display
								High resolution for sharp images

							SEnS Smart Environment Sensor
								Detects pedestrians and objects for enhanced safety

							Short Model
								More compact for constricted areas

							Cascade Integral Sideshifter
								Enhanced capacity and operator visibility

							 EZ Pedal
								Change the direction of travel with your foot

							Battery Slide-Out
								Improves safety, increases productivity by allowing batter to be extracted horizontally

							Mini Lever Controls with Ergoshift
								Single, ergonomic control unit with a forward/reverse directional switch

							Battery Roll-Out
								Improves safety, increases productivity by allowing the battery to be extracted horizontally

							Anti-Static Strap
								Safeguards electronic components and prevents shocks

							Rear Assist Grip With Horn Button
								Prevents hand injuries by keeping hands inside the operator compartment

Get updates from Summit

Home Toyota Page 7

Toyota Core Electric Forklift

Performance, Efficiency, Reliability

The Toyota Core Electric Forklift is an ideal compact four-wheel electric lift truck solution for most indoor and warehouse applications. The Core Electric Forklift can move almost any load while operating in spaces as narrow as 11 feet. The AC motor offers new levels of performance, efficiency, and reliability, maximizing your productivity and return on investment.

Forklift Maintenance Plan Available: Extend the equipment’s lifespan, maintain its resale value, and make maintenance budgeting more predictable.

Request a Quote

Toyota Core Electric Brochure Toyota Core Electric Spec Sheet

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Max Full Load Travel Speed	Max Full Load Lift Speed	Max Full Load Gradeability	Basic Right Angle Stack**
8FBC15U	3,000 lbs	36 V: 9.0 mph / 48 V: 10.9 mph	36 V: 61 fpm / 48 V: 85 fpm	36 V: 20% / 48 V: 21%	82.1"
8FBC18U	3,500 lbs	36 V: 8.7 mph / 48 V: 10.6 mph	36 V: 61 fpm / 48 V: 81 fpm	36 V: 18% / 48 V: 20%	82.1"
8FBCU20	4,000 lbs	36 V: 9.9 mph / 48 V: 11.5 mph	36 V: 67 fpm / 48 V: 89 fpm	36 V: 25% / 48 V: 23%	87.2"
8FBCU20-COMP	4,000 lbs	36 V: 9.9 mph / 48 V: 11.5 mph	36 V: 67 fpm / 48 V: 89 fpm	36 V: 25% / 48 V: 23%	85.2"
8FBCU25	5,000 lbs	36 V: 9.9 mph / 48 V: 11.5 mph	36 V: 59 fpm / 48 V: 79 fpm	36 V: 21% / 48 V: 19%	87.6"
8FBCU25-COMP	5,000 lbs	36 V: 9.9 mph / 48 V: 11.5 mph	36 V: 59 fpm / 48 V: 79 fpm	36 V: 21% / 48 V: 19%	85.6"
8FBCHU25	5,000 lbs	36 V: 9.9 mph / 48 V: 11.5 mph	36 V: 59 fpm / 48 V: 79 fpm	36 V: 21% / 48 V: 24%	93.1"
8FBCU28	5,500 lbs	36 V: 9.3 mph / 48 V: 11.5 mph	36 V: 55 fpm / 48 V: 73 fpm	36 V: 17% / 48 V: 20%	90.3"
8FBCU30	6,000 lbs	36 V: 9.0 mph / 48 V: 11.2 mph	36 V: 51 fpm / 48 V: 69 fpm	36 V: 17% / 48 V: 20%	94.9"
8FBCU32	6,500 lbs	36 V: 9.0 mph / 48 V: 11.2 mph	36 V: 47 fpm / 48 V: 65 fpm	36 V: 17% / 48 V: 19%	96.4"

Model Number	Load Capacity
8FBC15U	3,000 lbs
8FBC18U	3,500 lbs
8FBCU20	4,000 lbs
8FBCU20-COMP	4,000 lbs
8FBCU25	5,000 lbs
8FBCU25-COMP	5,000 lbs
8FBCHU25	5,000 lbs
8FBCU28	5,500 lbs
8FBCU30	6,000 lbs
8FBCU32	6,500 lbs

Model Number	Max Full Load Travel Speed
8FBC15U	36 V: 9.0 mph / 48 V: 10.9 mph
8FBC18U	36 V: 8.7 mph / 48 V: 10.6 mph
8FBCU20	36 V: 9.9 mph / 48 V: 11.5 mph
8FBCU20-COMP	36 V: 9.9 mph / 48 V: 11.5 mph
8FBCU25	36 V: 9.9 mph / 48 V: 11.5 mph
8FBCU25-COMP	36 V: 9.9 mph / 48 V: 11.5 mph
8FBCHU25	36 V: 9.9 mph / 48 V: 11.5 mph
8FBCU28	36 V: 9.3 mph / 48 V: 11.5 mph
8FBCU30	36 V: 9.0 mph / 48 V: 11.2 mph
8FBCU32	36 V: 9.0 mph / 48 V: 11.2 mph

Model Number	Max Full Load Lift Speed
8FBC15U	36 V: 61 fpm / 48 V: 85 fpm
8FBC18U	36 V: 61 fpm / 48 V: 81 fpm
8FBCU20	36 V: 67 fpm / 48 V: 89 fpm
8FBCU20-COMP	36 V: 67 fpm / 48 V: 89 fpm
8FBCU25	36 V: 59 fpm / 48 V: 79 fpm
8FBCU25-COMP	36 V: 59 fpm / 48 V: 79 fpm
8FBCHU25	36 V: 59 fpm / 48 V: 79 fpm
8FBCU28	36 V: 55 fpm / 48 V: 73 fpm
8FBCU30	36 V: 51 fpm / 48 V: 69 fpm
8FBCU32	36 V: 47 fpm / 48 V: 65 fpm

Model Number	Max Full Load Gradeability
8FBC15U	36 V: 20% / 48 V: 21%
8FBC18U	36 V: 18% / 48 V: 20%
8FBCU20	36 V: 25% / 48 V: 23%
8FBCU20-COMP	36 V: 25% / 48 V: 23%
8FBCU25	36 V: 21% / 48 V: 19%
8FBCU25-COMP	36 V: 21% / 48 V: 19%
8FBCHU25	36 V: 21% / 48 V: 24%
8FBCU28	36 V: 17% / 48 V: 20%
8FBCU30	36 V: 17% / 48 V: 20%
8FBCU32	36 V: 17% / 48 V: 19%

Model Number	Basic Right Angle Stack**
8FBC15U	82.1"
8FBC18U	82.1"
8FBCU20	87.2"
8FBCU20-COMP	85.2"
8FBCU25	87.6"
8FBCU25-COMP	85.6"
8FBCHU25	93.1"
8FBCU28	90.3"
8FBCU30	94.9"
8FBCU32	96.4"

*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer representative prior to purchase.

Load Capacity

3,000 – 6,500 LBS

Full Load Travel Speed

9.7 – 10.2 MPH

Electrical System

36 / 48 V

Request a Quote

Overview

The Toyota Core Electric Forklift is an efficient, compact, four-wheel electric lift truck ideal for most indoor and warehouse applications, capable of handling loads up to 6,500 pounds. Key features include Toyota-designed AC motors for performance and efficiency, ergonomic controls for operator comfort, and safety systems like System of Active Stability (SAS) to prevent tip-overs. The forklift also offers various options, including narrow aisle models, and safety enhancements such as SEnS+ (Smart Environment Sensor Plus) and automatic slope assist.

Performance

AC drive system
UL Approved Type E
Three forms of energy regeneration
Digital LCD multifunction display
Adjustable front headlights
Punched plate entry/exit step

Ergonomics

Strategically configured instrument display
On-demand hydrostatic power steering
Dual operator assist grips
11.8″ diameter two-spoke steering wheel
Cowl-mounted hydraulic controls
Heavy-duty non-slip floor mat
Electric directional shift control

Safety Features

System of Active Stability (SAS)
Operator Presence Sensing System (OPSS)
Bolt-on overhead guard
Key lowering interlock
Foot activated parking break
Manual return to neutral

Ease of Service

AC drive motor
Easy access hydraulic motor
Easy access no-tools floorboard
Battery compartment hood assist
Planned maintenance indicator
Easy access controllers

					Options


							Planned Maintenance
								Reduce downtime, lower overall repair costs, and improve safety and compliance.

							Narrow Aisle Turret Mast
								Rotating turret head enables stacking without needing to turn the forklift

							T-Matics Vehicle Management System
								Real-time monitoring of forklift usage, operator performance, and maintenance needs

							Short Model
								More compact for constricted areas

							Cold Storage Package
								Enclosed cabin and heaters

							EZ Pedal
								Change the direction of travel with your foot

							Mini Lever Controls with Ergoshift
								Single, ergonomic control unit with a forward/reverse directional switch

							Cascade Integral Sideshifter
								Enhanced capacity and operator visibility

							Active Steering Synchronizer
								Ensures the steering wheel is always aligned with the rear steer wheels

							Battery Slide-Out
								Improves safety, increases productivity by allowing the battery to be extracted horizontally

Toyota Outdoor Electric Forklift

Page Menu

Specs

Specifications

VOLTAGE

FULL LOAD TRAVEL SPEED

OVERALL WIDTH

Overview

Performance

Ergonomics

Safety Features

Ease of Service

Options

Related Products

Toyota Indoor/Outdoor Moving Mast Reach Truck Forklift

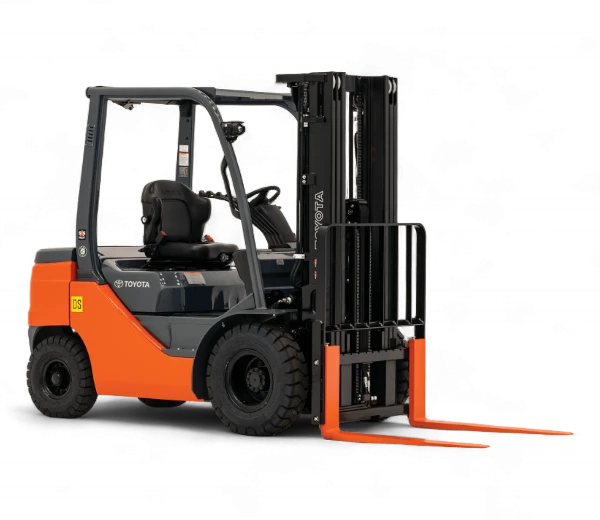

Toyota Core IC Outdoor Forklift

Toyota Mid IC Outdoor Forklift

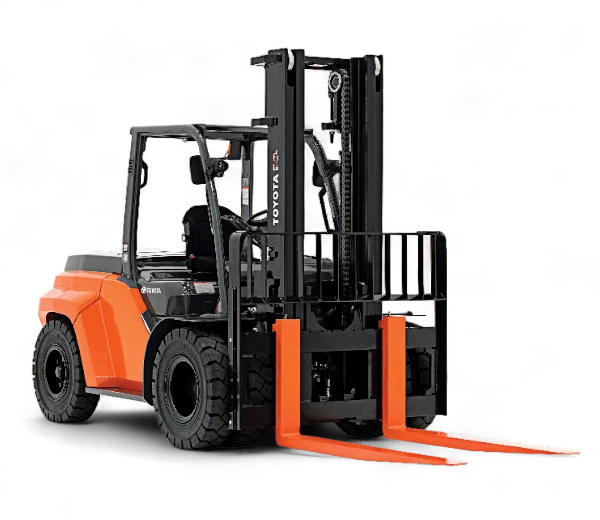

Toyota Large IC Outdoor Forklift

Get updates from Summit

Toyota High Capacity Electric Indoor Forklift

Page Menu

Specs

Specifications

LOAD CAPACITY

LOAD CENTER

FULL LOAD TRAVEL SPEED

Overview

Performance

Ergonomics

Safety Features

Ease of Service

Options

Related Products

Toyota Core Electric Forklift

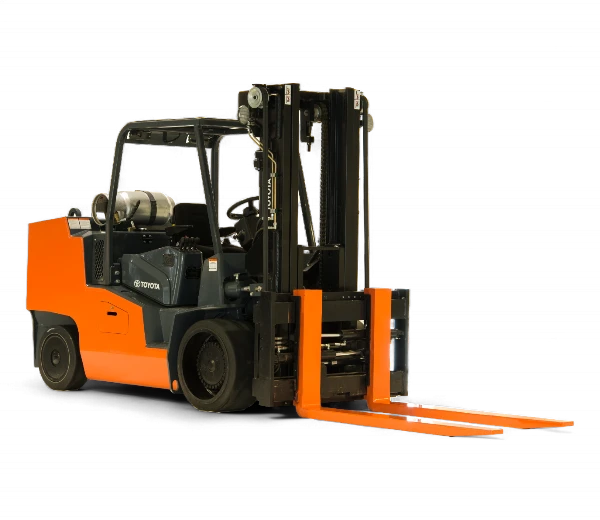

Toyota High-Capacity IC Indoor Forklift

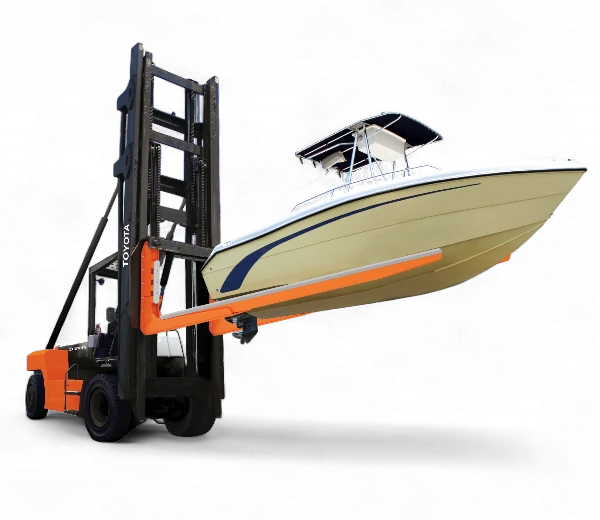

Toyota High Capacity Marina Forklift

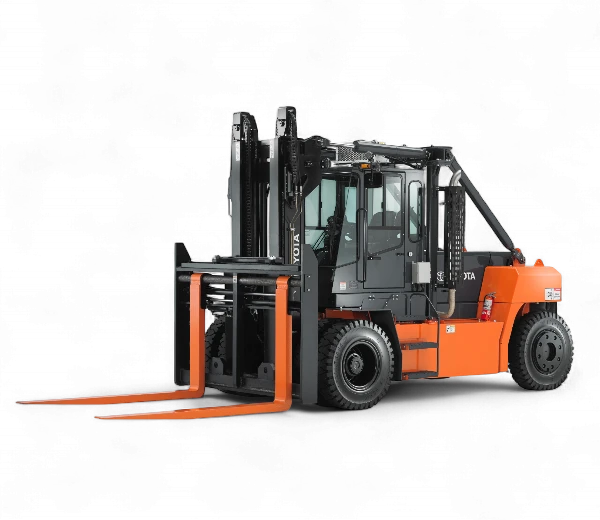

Toyota High Capacity IC Outdoor Forklift

Get updates from Summit

Toyota Electric Turret Special Forklift

Page Menu

Specs

Specifications

MAXIMUM FORK HEIGHT

LOAD CAPACITY

FREE LIFT

Overview

Performance

Ergonomics

Safety Features

Ease of Service

Options

Related Products

Toyota Core Electric Forklift

Toyota 3-Wheel Electric Forklift

Toyota Multidirectional Reach Truck Forklift

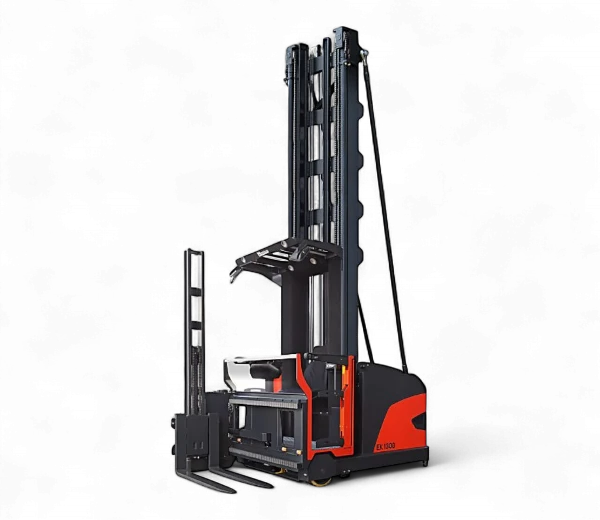

Steinbock EK Man-Up Picker Turret Truck Forklift

Get updates from Summit

Toyota Large Electric Indoor Forklift

Page Menu

Specs

Specifications

LOAD CAPACITY

FULL LOAD TRAVEL SPEED

ELECTRICAL

Overview

Performance

Ergonomics

Safety Features

Ease of Service

Options

Related Products

Toyota Indoor/Outdoor Moving Mast Reach Truck Forklift

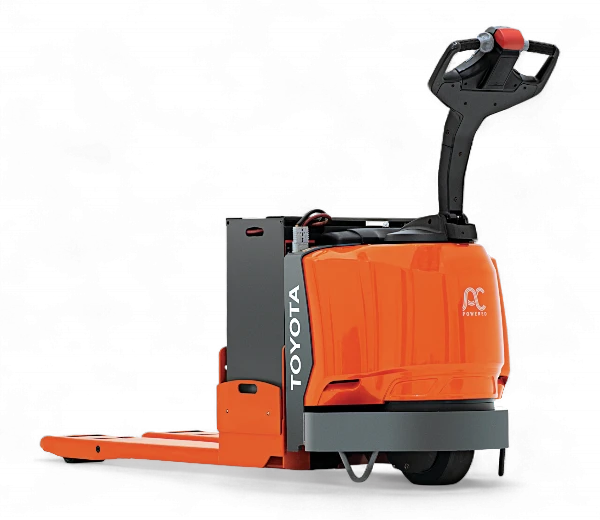

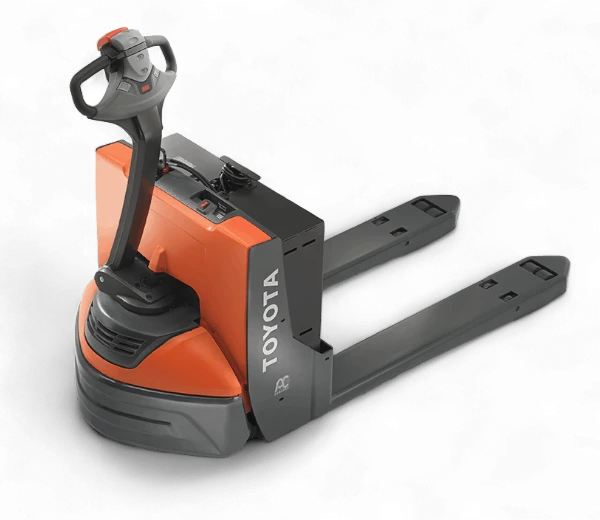

Toyota Large Electric Walkie Pallet Jack Forklift

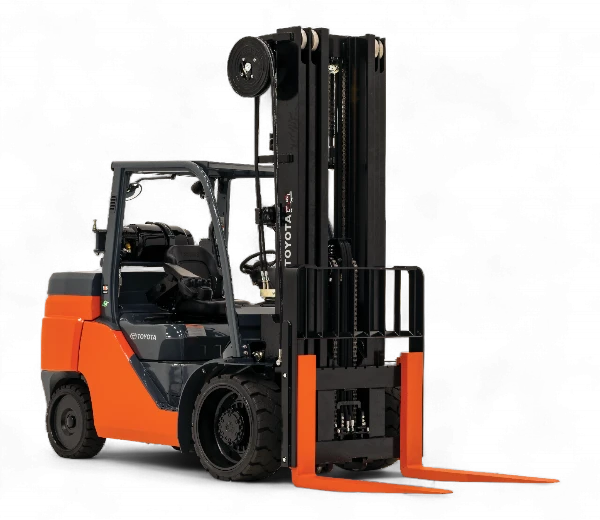

Toyota Large IC Indoor Forklift

Toyota Side-Entry End Rider Forklift

Get updates from Summit

Toyota Integrated Large Electric Pneumatic Forklift

Page Menu

Specs

Specifications
