Drexel Specialized High-Capacity Very Narrow Aisle Swingmast Forklift
Narrow Aisle, Heavy Lifting Solution

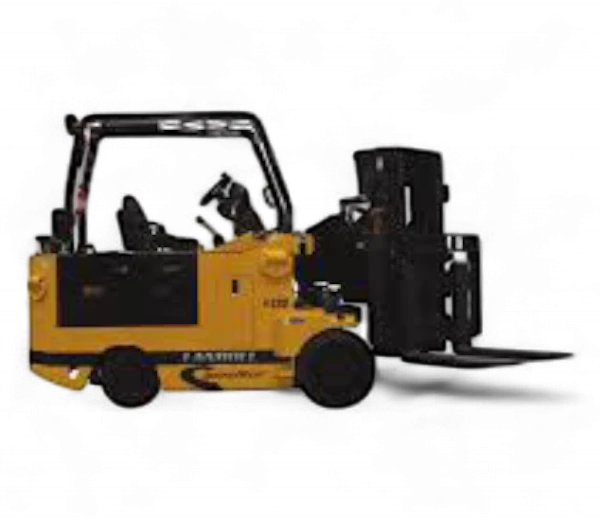

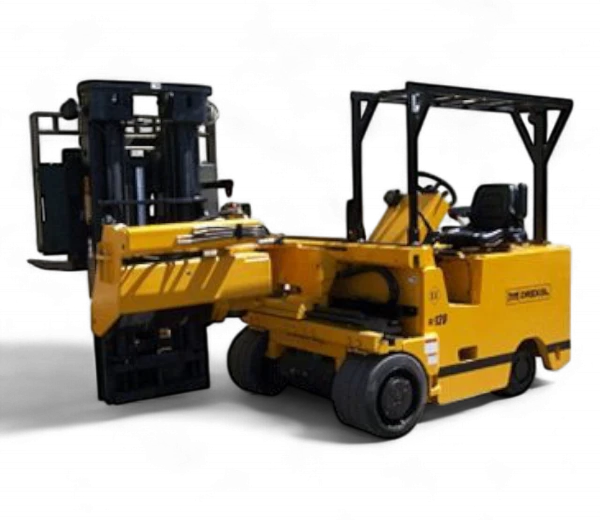

The Drexel SL120 is a 4-wheel, electric SwingMast forklift designed for high-capacity, very narrow aisle operations. It has a 90° rotating mast for side loading, and can work in aisles as narrow as 72″. Key features include hydrostatic power steering, dual rear steering wheels, and a high-visibility mast for improved safety and operator comfort.
Specs
| Model Number | Load Capacity | Lift Height | Fork Carriage Width | Overall Length | Overall Width | Voltage |
|---|---|---|---|---|---|---|
| SL120 | 12,000 lbs | 20' | 54" | 119" | 69" | 72 V |
| Model Number | Load Capacity |
|---|---|
| SL120 | 12,000 lbs |
| Model Number | Lift Height |
|---|---|
| SL120 | 20' |
| Model Number | Fork Carriage Width |
|---|---|
| SL120 | 54" |
| Model Number | Overall Length |
|---|---|
| SL120 | 119" |
| Model Number | Overall Width |
|---|---|
| SL120 | 69" |
| Model Number | Voltage |
|---|---|
| SL120 | 72 V |
Footnote content needed
Specifications
LOAD CAPACITY
12,000 LBS
TRAVEL SPEED
5 – 6 MPH
FRONT CARRIAGE WIDTH
54"
Overview
The SL120 operates effectively on both paved surfaces, indoors and outdoors, and can perform the combined functions of a high-capacity front-loading and side-loading forklift, including bulk storage, cantilever racks, and navigating steep ramps.
Performance
- Independently driven front drive wheels
- Dual rear steering wheels
- Front wheel, self-adjusting wet disc brakes
- Dual joysticks control
- Large battery compartment
Ergonomics
- High efficiency controllers
- 72 V electrical system
- Adjustable suspension seat
Safety Features
- High-visibility mast
- Hydrostatic power steering
- Safety seat switch
- Retractable seat belt
Ease of Service
- Battery discharge indicator
- Series traction and hydraulic motors
Options
LED Work Lights
Improve visibility in low-light conditions
Backup Alarm
Loudly and automatically alert
Fire Extinguisher
Immediate tool for fighting small fires caused by fuel or electrical issues
Load Weight Sensor
Prevent dangerous overloads, improve handling, and reduce equipment wear
Fork Positioner
Adjusts fork width from the cab, to save time, prevent damage, and reduce operator fatigue
Custom Forks
Tailor the equipment to your specific material handling needs
Auxiliary Hydraulics
Provides the necessary power to operate a variety of attachments
“X” Groove Polyurethane Tires
Higher load capacity, longer lifespan, and resistance to cuts, tears, and chemicals
