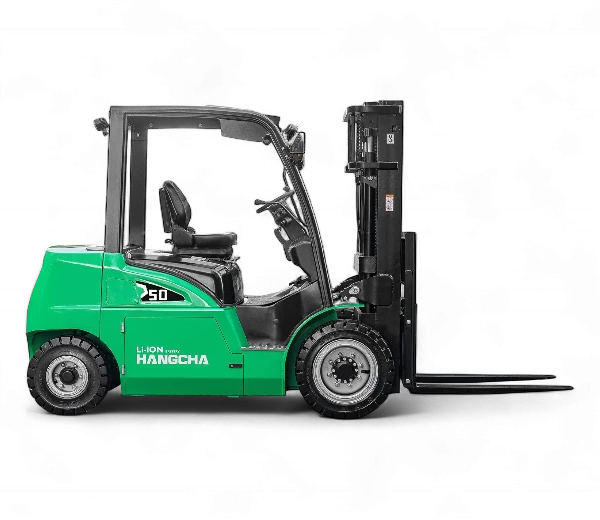

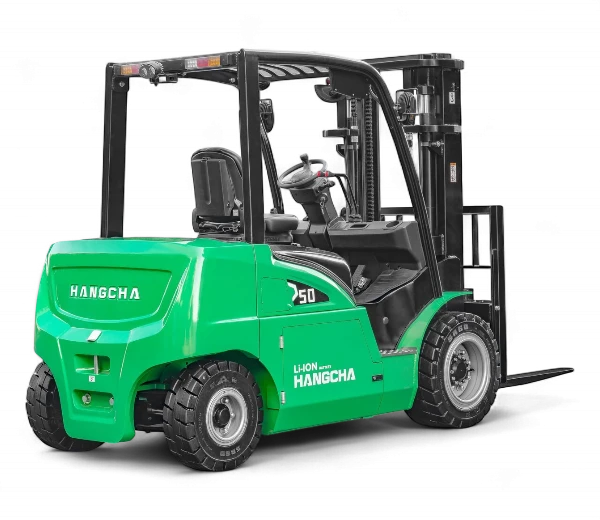

Hangcha XC Series Mid Electric Outdoor Lithium-Ion Forklift
Lithium-ion Forklifts for up to 11,000 Pounds
Designed around the battery, the Hangcha XC Series Mid Electric Outdoor Lithium-Ion Forklift offers a stable, high-power, reliable, and maintenance-free alternative to the traditional core IC forklifts.
The XC Series can operate through multiple shifts, charging during breaks, without requiring hours-long recharging stops. Combined with regenerative braking during deceleration, the powertrain is designed for efficiency. A MOSFET-integrated control system ensures smooth, accurate driving and lifting control. It also provides excellent speed regulation, and anti-sliding on ramps.
Specs
| Model Number | Load Capacity | Width | Height | Max Fork Height | Max Full Load Lift Speed | Max Full Load Gradeability | Voltage |
|---|---|---|---|---|---|---|---|
| FB40Li | 8,000 lbs | 54" | 87" | 164" | 69 fpm | 15% | 80 V |
| FB45Li | 9,000 lbs | 54" | 87" | 164" | 69 fpm | 15% | 80 V |
| FB50Li | 10,000 lbs | 57" | 87" | 164" | 69 fpm | 15% | 80 V |
| FBL50Li | 11,000 lbs | 57" | 87" | 164" | 69 fpm | 15% | 80 V |
| Model Number | Load Capacity |
|---|---|
| FB40Li | 8,000 lbs |
| FB45Li | 9,000 lbs |
| FB50Li | 10,000 lbs |
| FBL50Li | 11,000 lbs |
| Model Number | Width |
|---|---|
| FB40Li | 54" |
| FB45Li | 54" |
| FB50Li | 57" |
| FBL50Li | 57" |
| Model Number | Height |
|---|---|
| FB40Li | 87" |
| FB45Li | 87" |
| FB50Li | 87" |
| FBL50Li | 87" |
| Model Number | Max Fork Height |
|---|---|
| FB40Li | 164" |
| FB45Li | 164" |
| FB50Li | 164" |
| FBL50Li | 164" |
| Model Number | Max Full Load Lift Speed |
|---|---|
| FB40Li | 69 fpm |
| FB45Li | 69 fpm |
| FB50Li | 69 fpm |
| FBL50Li | 69 fpm |
| Model Number | Max Full Load Gradeability |
|---|---|
| FB40Li | 15% |
| FB45Li | 15% |
| FB50Li | 15% |
| FBL50Li | 15% |
| Model Number | Voltage |
|---|---|
| FB40Li | 80 V |
| FB45Li | 80 V |
| FB50Li | 80 V |
| FBL50Li | 80 V |
*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Hangcha dealers retain the most current product specifications. All specifications should be verified by an authorized Hangcha dealer prior to purchase.
Overview
The Hangcha XC Series MID Electric Outdoor forklift, powered by a large lithium-ion battery, offers extended operation and efficiency through opportunity charging, featuring an 80-volt system and high-torque motors for faster speeds and more lifting power than traditional lifts. This series includes a comfortable, spacious operator cab with an overhead LCD, advanced safety features like fork descending buffering and emergency cut-off switches, and a durable design suitable for outdoor use and demanding applications.
Performance
- Opportunity charging
- Regenerative braking during deceleration
- Ultra-high power AC pump
- Built-in speed sensors
Ergonomics
- 50% more operating space than a traditional electric forklift
- Operator overhead 4″ LCD panel
- Tilt-adjustable small-diameter steering wheel
- Adjustable driver seat
- Large brake pedal
Safety Features
- Emergency cut-off switch
- Fork descending buffering function
- PIN code system for safety and security
Ease of Service
- Floating suspension system
- High-power AC traction motor
Options
