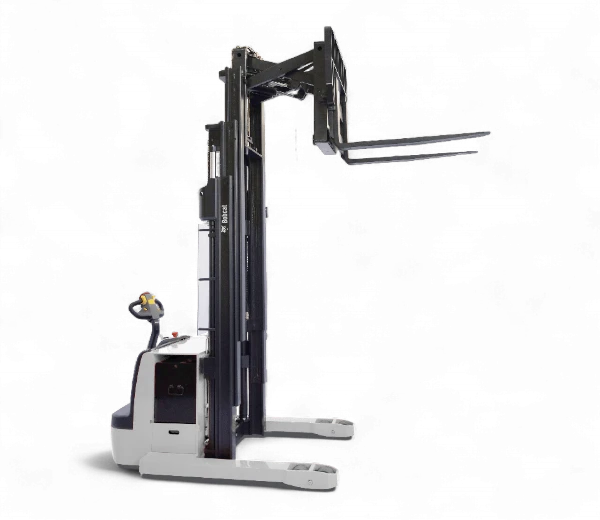

Bobcat 7 Series Walkie Reach Stacker

Lift, Stack & Move Goods in Tight Warehouse Spaces

The Bobcat 7 Series BWP 17 Walkie Reach Stacker is designed to handle a wide range of jobs efficiently. Whether it’s working in narrow aisles or moving freight on the dock, this walkie truck can be used to supplement full-size forklifts in many ways.

Its key features include a 3,300-pound capacity, a pantograph reach mechanism for a tighter turning radius, and an ergonomic multi-function control handle.

Request a Quote

Bobcat 7 Series Walkie Reach Stacker Spec Sheet

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max Fork Heght	Reach Stroke	Travel Speed	Voltage
BWP17S-7	3,300 lbs	54"	212"	130"	20"	3.23 mph	24 V

Model Number	Load Capacity
BWP17S-7	3,300 lbs

Model Number	Width
BWP17S-7	54"

Model Number	Height
BWP17S-7	212"

Model Number	Max Fork Heght
BWP17S-7	130"

Model Number	Reach Stroke
BWP17S-7	20"

Model Number	Travel Speed
BWP17S-7	3.23 mph

Model Number	Voltage
BWP17S-7	24 V

*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Bobcat dealers retain the most current product specifications. All specifications should be verified by an authorized Bobcat dealer prior to purchase.

LOAD CAPACITY

3,300 LBS

TURNING RADIUS

65"

TRAVEL SPEED

3.23 MPH

Request a Quote

Overview

The Bobcat 7 Series Walkie Reach Stacker Forklift allows for greater lift heights while retaining a low collapsed height. With a maintenance-free brushless drive motor, this Walkie also features a low-speed/brake override switch for operation in confined areas and a battery roll-in/roll-out system for easier battery changes.

This Walkie Reach Stacker provides a significantly tighter turning radius than typical counterbalanced lift trucks.

Performance

24 V AC drive system
CAN bus technology
Pantograph reach mechanism
Tilting fork carriage
Creep speed operation with the handle in the upright position to maneuver in tight space

Ergonomics

Ergonomic handle
82”/156” triple mast
Standard storage tray
Tight turning radius

Safety Features

Low speed, creep speed operation
Brake override switch
Adjustable spring-loaded caster
Stabilizes truck with loads at height
Plexiglas mast guard
Large base legs

Ease of Service

Hour meter / BDI
Roll-out battery tray
Deep cycle batteries
Built-in charger

					Options


							Integral Sideshifter
								Effortlessly move forks at the touch of a lever

							Custom Forks
								Tailor the equipment to your specific material handling needs

Get updates from Summit

Home Bobcat Page 18

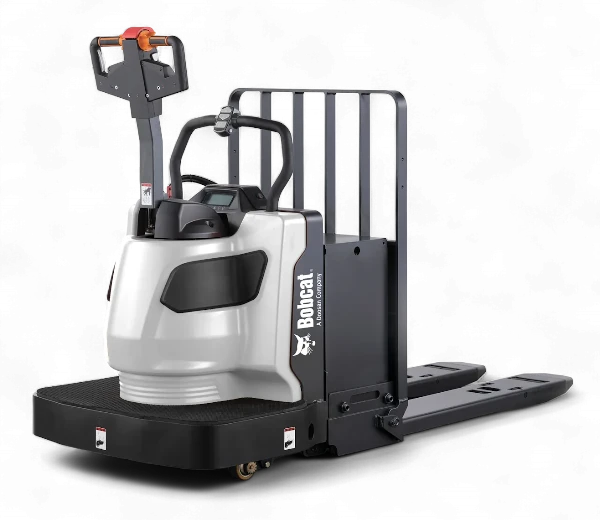

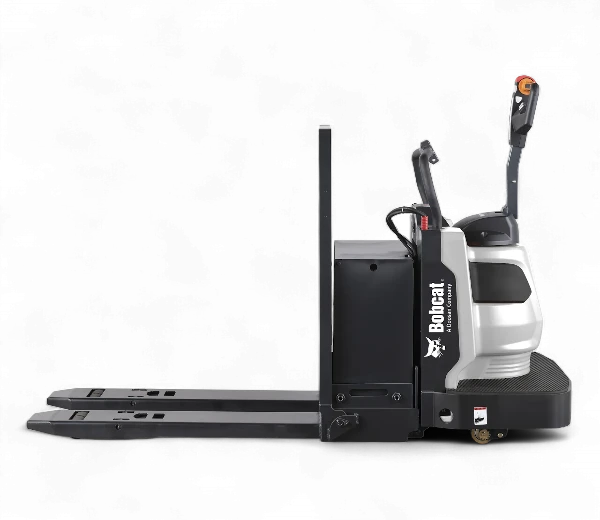

Bobcat 9 Series End-Controlled Rider Pallet Jack

A Side-Stance Position Allows for Quick Direction Changes

The Bobcat 9 Series End-Controlled Rider Pallet Jack is an electric pallet jack designed for durability and maneuverability in demanding environments. This Pallet Jack Series features a robust frame, AC drive system, and ergonomic features for operator comfort and productivity.

Request a Quote

Bobcat 9 Series Rider Pallet Jack Brochure Bobcat 9 Series Rider Pallet Jack Spec Sheet

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Travel Speed	Voltage
B30ER-9	6,000 lbs	37"	60"	6.7 mph	24 V
B40ER-9	8,000 lbs	37"	60"	6.7 mph	24 V

Model Number	Load Capacity
B30ER-9	6,000 lbs
B40ER-9	8,000 lbs

Model Number	Width
B30ER-9	37"
B40ER-9	37"

Model Number	Height
B30ER-9	60"
B40ER-9	60"

Model Number	Travel Speed
B30ER-9	6.7 mph
B40ER-9	6.7 mph

Model Number	Voltage
B30ER-9	24 V
B40ER-9	24 V

LOAD CAPACITY

6,000 – 8,000 LBS

TURNING RADIUS

70 – 105"

VOLTAGE

24 V

Request a Quote

Overview

The Bobcat 9 Series End-Controlled Rider Pallet Jack offers benefits like increased operator comfort through its spacious platform and ergonomic controls, improved productivity with features like simultaneous function control, and enhanced durability with a reinforced frame and undercarriage. With a handrail with auxiliary controls for single-handed operation, minimizing hand and finger fatigue.

Performance

High travel speed
Intuitive instrument panel
Adjustable stabilizing casters with urethane cushion
Single/dual load wheel
Poly drive tire

Ergonomics

Wide operator platform
Dual-sided knee pads
Heavy-duty floor mat with urethane damper
Padded grab bar
Ergonomically-designed tiller

Safety Features

Guardian Stability System (GSS)
Switchable travel alarm
Grab bar with control switch
Electrically-assisted service brake
Electromagnetic parking brake
Turtle mode for walking speed

Ease of Service

Curtis controller
AC drive/DC lift system
Easily removable main cover
Battery side roll-out assist
Undercarriage plate protection of critical structures
Heavy-duty solid pull rods & load wheel linkage

					Options


							Amber Strobe Light
								Increases forklift visibility, especially in high-traffic, dusty, or noisy environments

							Custom Forks
								Tailor the equipment to your specific material handling needs

Get updates from Summit

Home Bobcat Page 18

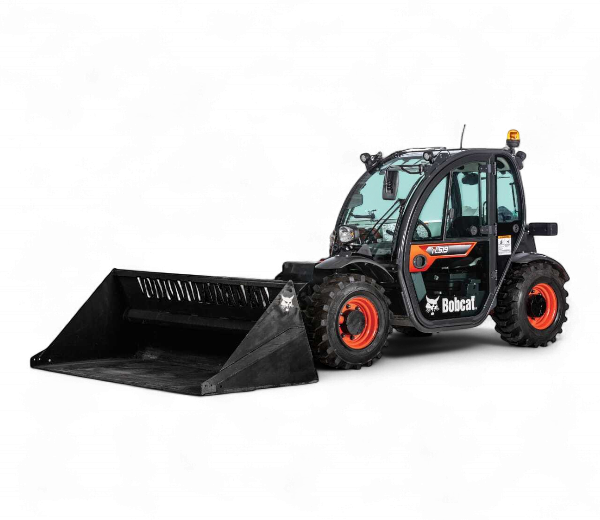

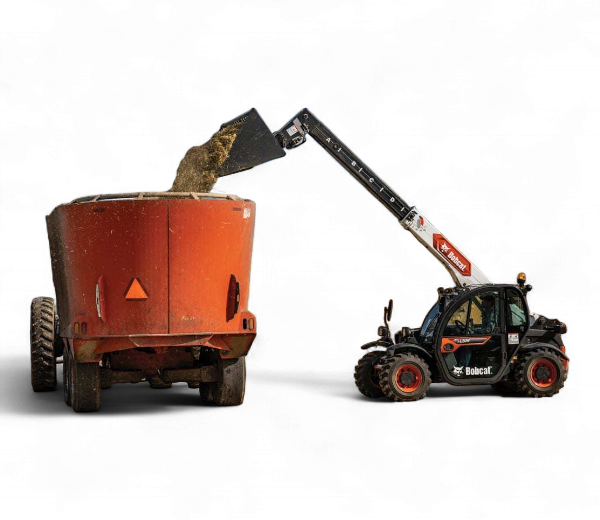

Bobcat TL519 Telehandler

Bobcat’s TL519 Telehandler is compact yet delivers outsized productivity, with a maximum rated capacity of 5,500 pounds and a lift height of 19.6 feet.

Turbo-charged, non-DPF engine
2-staged, low-profile boom
Agressive pushing power
Four steering modes
High-visibility design

Request a Quote

Bobcat TL519 Telehander Spec Sheet

Specs

Model Number	Horsepower	Travel Speed	Lift Capacity	Lift Height	Drive	Fuel Tanh
TL519	74 hp	17 mph	5,500 lbs	232"	4WD	17.2 gal

Model Number	Horsepower
TL519	74 hp

Model Number	Travel Speed
TL519	17 mph

Model Number	Lift Capacity
TL519	5,500 lbs

Model Number	Lift Height
TL519	232"

Model Number	Drive
TL519	4WD

Model Number	Fuel Tanh
TL519	17.2 gal

HORSEPOWER

74 HP

AUXILIARY Hydraulic FLOW

21.1 GPM

MAX TRAVEL SPEED

17 MPH

Request a Quote

Overview

The Bobcat TL519 is a compact telehandler designed for tight spaces, featuring a 74-hp turbocharged engine, a 5,500-pound maximum lift capacity, and a nearly 20-foot lift height. It offers five distinct operation modes (ECO, Smooth drive, Dynamic drive, Flex drive, and Advanced attachment), multiple steering options (front-wheel, all-wheel, and crab), and a standard Power Bob-Tach mounting system for easy attachment changes.

Performance

High Load Capacity and Lift Height
74 hp Tier 4 Bobcat Engine
Hydrostatic Transmission
Four Steering Modes
Five Operation Modes
Two Travel Speeds
Optimum Tractive Effort
Automatic Tilt (Attachment) Positioning
2Stage, Low-Profile Boom
Automatic Ride Control
Auxiliary Hydraulics
Auxiliary Flow Management
Continuous Hydraulic Flow With Dual Detent
Large-Diameter Tires
Boom Float
Standard Counterweight
Integrated Lift Eye

Durability

Box-Welded Frame With Protective Chassis
Automatic Battery Disconnect
Side-by-Side Cooling Design
Cyclonic Air Prefilter
Robust Boom Design
Sealed Engine Compartment
Automatic Reverse Cooling Fan
Protected Cylinders
Fine Mesh Intake Screen
Poly Fuel Tank
Machine Protection
Impact-Resistant Engine Access Panel
Reinforced Heavy-Duty Boom Pivot and Enclosed Frame Welds
Common Parts
Window Guards

Ease of Service

Simple Cooling System Cleanout
Double-Element Air Filter
Adjustable Boom Guides
Easy Engine Access
Oil Filter Access
Easy Battery Access

					Attachments


							Auger
								High-torque power for drilling

							Bale Fork
								Enhances load stabilization for both round and square bales

							Bucket
								For efficient material handling

							Grapple Bucket
								Securely handles bulky, uneven, or loose materials like logs, debris, and scrap metal

							Pallet Fork
								Quickly and easily lift, carry, stack, and place palletized goods

							Snow Blade
								Angled left or right; for efficient snow moving

							Snow Pusher
								Contains and pushes large volumes of snow straight ahead;  protection for sensitive surfaces

Get updates from Summit

Home Bobcat Page 18

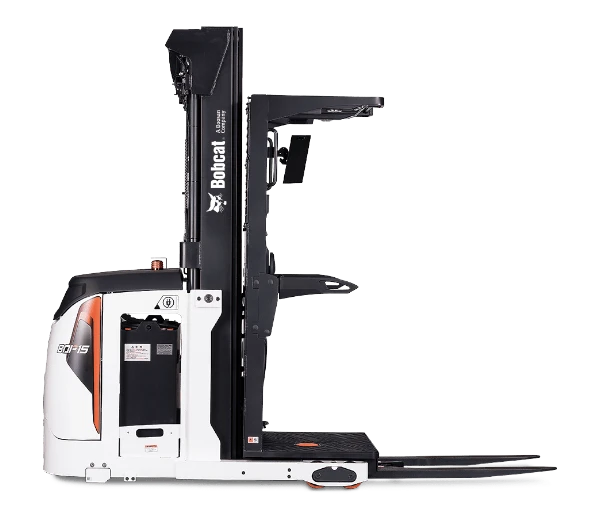

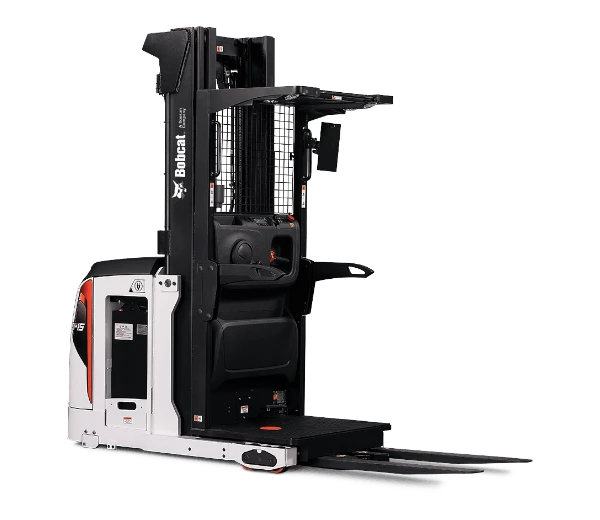

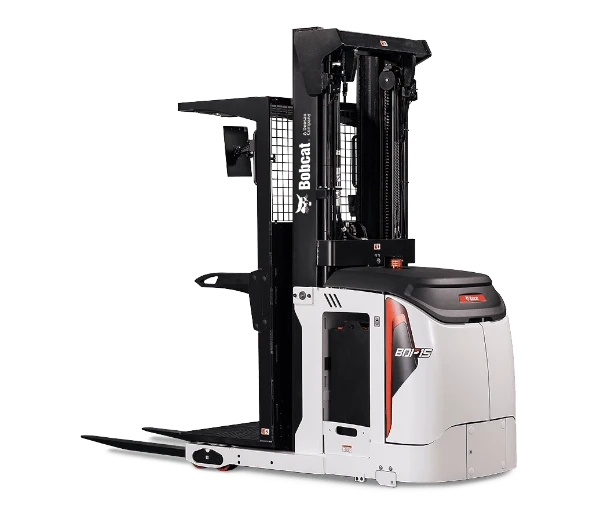

Bobcat 9 Series High Level Order Picker

Small Chassis is Perfect for Narrow Aisles

The Bobcat 9 Series High Level Order Picker combines outstanding performance, durability, and convenience with the highest level of safety features, making your warehouse logistics operation safer and more efficient.

It offers enhanced performance with fast lifting and travel speeds, durability through features like IP43-rated motors and operator comfort with wide steps and an adjustable steering column.

Request a Quote

Bobcat 9 Series High Level Order Picker Brochure

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max Fork Height	Lift Speed	Driver Compartment Length
BOP15S-9	3,000 lbs	54"	95"	387"	45 fpm	28"

Model Number	Load Capacity
BOP15S-9	3,000 lbs

Model Number	Width
BOP15S-9	54"

Model Number	Height
BOP15S-9	95"

Model Number	Max Fork Height
BOP15S-9	387"

Model Number	Lift Speed
BOP15S-9	45 fpm

Model Number	Driver Compartment Length
BOP15S-9	28"

LOAD CAPACITY

3,000 LBS

TURNING RADIUS

68"

VOLTAGE

24 V

Request a Quote

Overview

The Bobcat 9 Series Order Picker is an electric, high-level warehouse machine designed for safety, comfort, and productivity. Key features include a stable, unyielding mast with anti-lateral movement, side rollers, and mast pads for precision. Its small chassis size makes it suitable for navigating narrow aisles in a warehouse. With a pre-select height selector with up to 8 settings.

Performance

Auto directional alignment at start-up
AC lift/lower control
Height and descent proximity sensor
High-stability mast
Chain tension controls
AC Curtis controller
Prestolite motor
ZF drive unit
Heavy-duty Stellana drive tire and load wheels

Ergonomics

Ergonomically-designed control handle
LED lighting
High-performance operator fans
Electric power steering
Wide-view mast
Top-tier travel and lift speeds
Oversized cushioned operator platform
USB port and power supply
Dual accessory bars (for scanners, clipboards, cup holders, etc.)

Safety Features

Electromagnetic parking brake
Safety side gate with electronic lockout
Battery side gate with hood cover safety interlock
Guardian Stability System (GSS)
Emergency stop button
Back-up alarm

Ease of Service

Tool-free service doors
Easy-view diagnostics
Latch-mounted hood
Lift chain tension sensor
Easy access to drive tire, steering and hydraulic lines
Dual battery connector
Extended maintenance intervals

					Options


							Custom Forks
								Tailor the equipment to your specific material handling needs

							Battery Roll-Out
								Fast battery swap

							Wire Guidance
								A charged wire embedded in the floor to automate the forklift's steering

							Polyurethane Tires
								Higher load capacity, longer lifespan, and resistance to cuts, tears, and chemicals

							Operator Fan
								Provides comfort for the operator,

							Adjustable Armrest or Backrest
								Improve operator comfort, reduce fatigue and injury

							Cushioned Floor Mat
								Enhances safety through slip resistance, reduces operator fatigue and strain from standing for long periods

							LED Work Lights
								Improve visibility in low-light conditions

							Cold Storage Package
								Enclosed cabin and heaters

Get updates from Summit

Home Bobcat Page 18

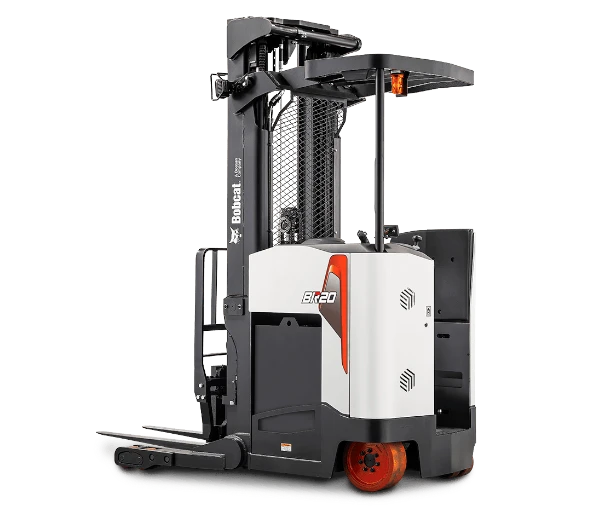

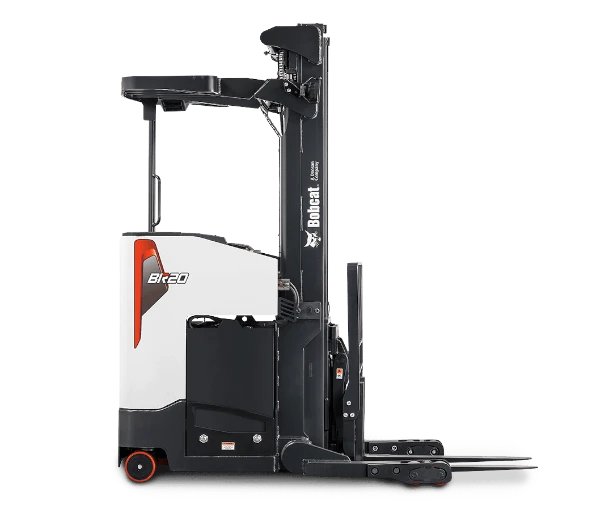

Bobcat 7 Series PLUS Reach Truck Forklift

Narrow Aisle Specialist helps Maximize Storage Space

Bobcat’s 7 Series PLUS Reach Trucks are electric, narrow-aisle forklifts designed for high-performance and durability in busy warehouses. They combine outstanding performance, durability, and convenience with the highest level of safety features, making your warehouse logistics more productive and efficient.

Request a Quote

Bobcat 7 Series Plus Reach Truck Forklift Series Brochure

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max Fork Height	Reach Stroke	Gradeability
BR18SP-7 PLUS	3,500 lbs	56"	127"	289"	23"	10 %
BR20SP-7 PLUS	4,000 lbs	56"	140"	318"	23"	10 %

Model Number	Load Capacity
BR18SP-7 PLUS	3,500 lbs
BR20SP-7 PLUS	4,000 lbs

Model Number	Width
BR18SP-7 PLUS	56"
BR20SP-7 PLUS	56"

Model Number	Height
BR18SP-7 PLUS	127"
BR20SP-7 PLUS	140"

Model Number	Max Fork Height
BR18SP-7 PLUS	289"
BR20SP-7 PLUS	318"

Model Number	Reach Stroke
BR18SP-7 PLUS	23"
BR20SP-7 PLUS	23"

Model Number	Gradeability
BR18SP-7 PLUS	10 %
BR20SP-7 PLUS	10 %

* Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Bobcat dealers retain the most current product specifications. All specifications should be verified by an authorized Bobcat dealer prior to purchase.

LOAD CAPACITY

3,500 – 4,000 LBS

TURNING RADIUS

68 – 74"

VOLTAGE

36 V

Request a Quote

Overview

The Bobcat 7 Series PLUS Reach Truck is a powerful, electric-powered narrow-aisle forklift designed for high-productivity material handling in busy warehouses. It features durable construction, precise maneuverability, advanced safety systems like the Guardian Stability System (GSS), and easy maintenance access for reliable and efficient warehouse operations.

Performance

AC motor
Height indicator with multiple height presets
Frame w/bolt-on load wheel boxes
Heavy-duty wheel bearings
Advanced digital display
Smooth transition mast raising/lowering
Precise lifting control

Ergonomics

Multi-function joystick control w/ergonomic buttons
Rugged foot pedal switches
Side-stance orientation for full visibility
Low step height
Angled masts for improved operator visibility
Built-in storage areas
Digital display
Knee pad, back pad, and thigh pad
Adjustable armrest

Safety Features

Auto-centering drive tire
Cushioned mast reach cylinders
Guardian Stability System (GSS)
Operator Sensing System (OSS)

Ease of Service

AC motors
Curtis on-board diagnostics
Rear door to access main components
Swing-out service door
Removable cover panels
On-board thermal protection
Controller & motor cutback systems

					Options


							Front Camera
								Provides a clear view of blind spots, especially when carrying large loads that obstruct the driver's line of sight

							Amber Strobe Light
								Increases forklift visibility, especially in high-traffic, dusty, or noisy environments

							Panoramic Mirrors
								Increases the operator's range of vision

							Strobe Light
								Bright, sharp flashes to quickly capture attention

							Rear Assist Grip With Horn Button
								Prevents hand injuries by keeping hands inside the operator compartment

							Height Indicator
								Enhances safety, increased productivity, and reduced damage to goods, equipment, and infrastructure

							Integral Sideshifter
								Effortlessly move forks at the touch of a lever

							Convenience Tray
								Reduces clutter and the risk of accidents caused by misplaced objects

							Lamp & Fan
								Provides better visibility and comfort for the operator, improves safety, productivity

Get updates from Summit

Home Bobcat Page 18

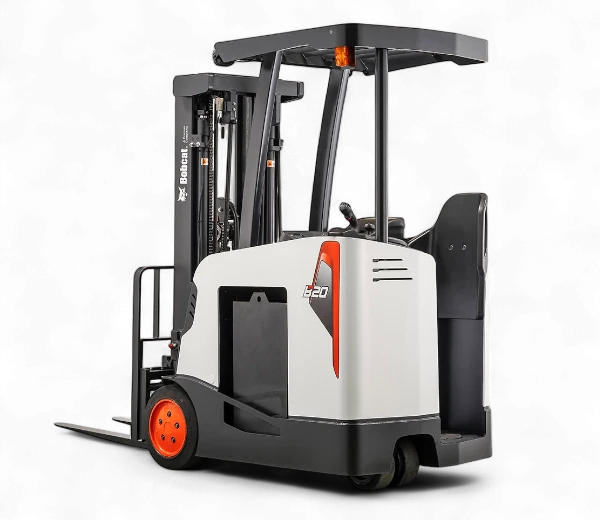

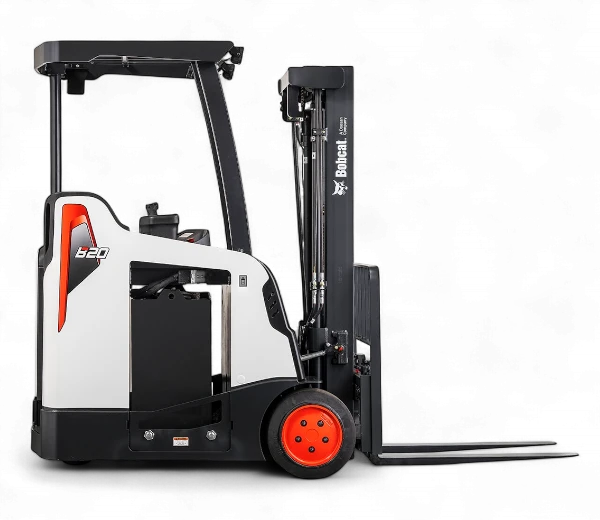

Bobcat 9 Series Stand-Up Rider Forklift

Get More Done in Less Space

Bobcat’s 4-Wheel Cushion Electric Stand-up Rider Lift Truck continues to follow its tradition of delivering efficient, reliable products, while offering the best value for material handling operators of narrow aisles.

Request a Quote

Bobcat 9 Series Stand Up Rider Brochure

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max Fork Height	Lift Speed	Gradeability
B15SU-9	3,000 lbs	42"	84"	190"	65 fpm	15%
B18SU-9	3,500 lbs	42"	84"	190"	65 fpm	15%
B20SU-9	4,000 lbs	42"	84"	190"	65 fpm	15%

Model Number	Load Capacity
B15SU-9	3,000 lbs
B18SU-9	3,500 lbs
B20SU-9	4,000 lbs

Model Number	Width
B15SU-9	42"
B18SU-9	42"
B20SU-9	42"

Model Number	Height
B15SU-9	84"
B18SU-9	84"
B20SU-9	84"

Model Number	Max Fork Height
B15SU-9	190"
B18SU-9	190"
B20SU-9	190"

Model Number	Lift Speed
B15SU-9	65 fpm
B18SU-9	65 fpm
B20SU-9	65 fpm

Model Number	Gradeability
B15SU-9	15%
B18SU-9	15%
B20SU-9	15%

* Based on 24″ load center
** Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Bobcat dealers retain the most current product specifications. All specifications should be verified by an authorized Bobcat dealer prior to purchase.

LOAD CAPACITY

3,000 – 4,000 LBS

TURNING RADIUS

55 – 58"

VOLTAGE

36 V

Request a Quote

Overview

The Bobcat 9 Series Stand-Up Rider Forklift is an electric forklift designed for narrow-aisle operations, offering enhanced operator comfort with a floating cab and an adjustable suspension seat. This Series prioritizes maneuverability in tight spaces, operator visibility through an optimized overhead guard, and easy entry/exit with a low step height.

Performance

Large 18” drive tire
Auto tilt leveling
Excellent visibility
Smooth acceleration and travel
Tilt speed control

Ergonomics

Soft grip knob on steering wheel
Arm rest lifting button
3-point entry system
Knee pad
Low step height
Extended backrest with grab handle
Easy-read display
Clipboard, cup holder, storage tray
5 V USB port
12 V power jack
Adjustable armrest

Safety Features

Guardian Stability System (GSS)
Operator Sensing System (OSS)
Auto parking brake
Unlimited ramp hold travel
Battery side gate interlock
Mast lowering interlock and tilt lock
LED lights
Hydraulic weight scale
Key switch
Emergency stop switch
Multi-functional control handle

Ease of Service

IP43-rated drive and hydraulic motors
High visibility overhead guard
Twin drive axle
IP65-rated Curtis controller
Programmable performance
Tool-less covers
Easy access electronics

					Options


							Low Overhead Guard Height
								Operate in areas with limited vertical clearance

							Bottler's Tilt
								Easily access loads in side-loaded trailers with a steeper forward tilt

							Narrow Carriage
								Allows operation in smaller spaces

							Cold Storage Package
								Enclosed cabin and heaters

							Quick Disconnects
								Single or double for fast, easy, and tool-free changes

							Cushion Tires
								For indoor use on smooth, hard surfaces

							Upper Drive Motor Protector
								Prevents damage to the drive motor by monitoring its operating conditions

							Keyless Start
								Security against theft and prevents unauthorized use

							LED Lamp & Fan
								Provides better visibility and comfort for the operator, improves safety, productivity

							Rear Wheel Steering
								Tighter turns, enhanced precision, better load placement

Get updates from Summit

Home Bobcat Page 18

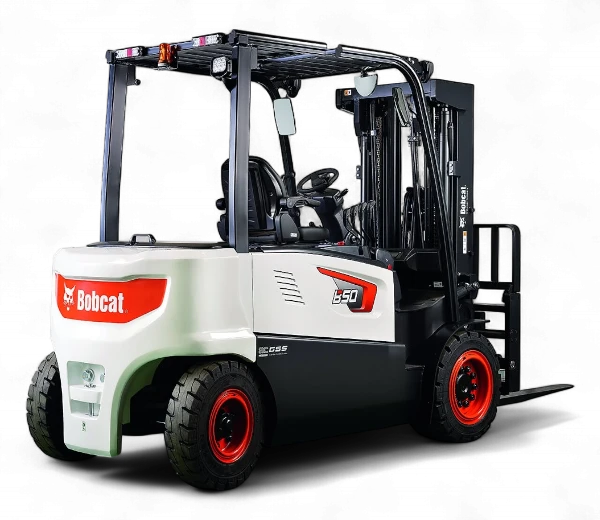

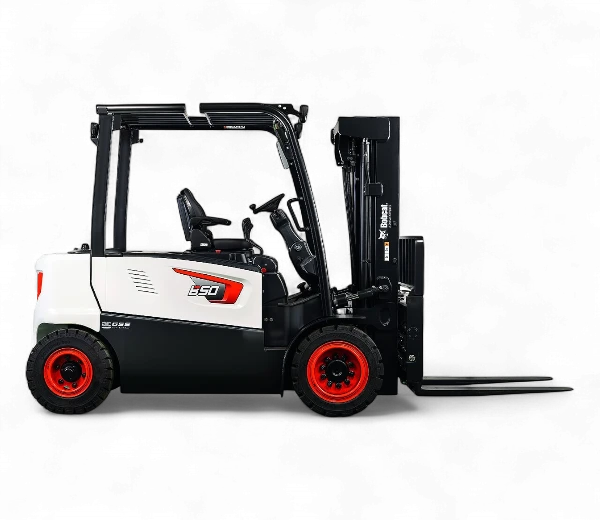

Bobcat 7 Series Electric Outdoor Forklift

The Flexibility you Need to Get the Job Done

Bobcat’s 7 Series 4-wheel Electric Outdoor counterbalance forklift trucks continue its tradition of delivering heavy-duty performance at a lower cost of ownership.

Request a Quote

Bobcat 7 Series Electric Outdoor Forklift Catalog

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max Fork Height	Max Full Load Lift Speed	Max Full Load Lift Gradeability	Voltage
B16X-7	3,200 lbs	43"	85"	171"	79 fpm	26%	48 V
B18X-7	3,600 lbs	44"	85"	171"	79 fpm	25%	48 V
B20X-7	4,000 lbs	44"	85"	171"	79 fpm	24%	48 V
B22X-7	4,500 lbs	49"	86"	177"	99 fpm	27%	80 V
B25X-7	5,000 lbs	49"	86"	177"	95 fpm	25%	80 V
B30X-7	6,000 lbs	49"	87"	177"	83 fpm	22%	80 V
B35X-7	7,000 lbs	49"	87"	167"	75 fpm	20%	80 V
B40X-7	8,000 lbs	58"	92"	165"	69 fpm	17%	80 V
B45X-7	9,000 lbs	58"	93"	165"	65 fpm	16%	80 V
B50X-7	10,000 lbs	58"	93"	166 "	61 fpm	15%	80 V

Model Number	Load Capacity
B16X-7	3,200 lbs
B18X-7	3,600 lbs
B20X-7	4,000 lbs
B22X-7	4,500 lbs
B25X-7	5,000 lbs
B30X-7	6,000 lbs
B35X-7	7,000 lbs
B40X-7	8,000 lbs
B45X-7	9,000 lbs
B50X-7	10,000 lbs

Model Number	Width
B16X-7	43"
B18X-7	44"
B20X-7	44"
B22X-7	49"
B25X-7	49"
B30X-7	49"
B35X-7	49"
B40X-7	58"
B45X-7	58"
B50X-7	58"

Model Number	Height
B16X-7	85"
B18X-7	85"
B20X-7	85"
B22X-7	86"
B25X-7	86"
B30X-7	87"
B35X-7	87"
B40X-7	92"
B45X-7	93"
B50X-7	93"

Model Number	Max Fork Height
B16X-7	171"
B18X-7	171"
B20X-7	171"
B22X-7	177"
B25X-7	177"
B30X-7	177"
B35X-7	167"
B40X-7	165"
B45X-7	165"
B50X-7	166 "

Model Number	Max Full Load Lift Speed
B16X-7	79 fpm
B18X-7	79 fpm
B20X-7	79 fpm
B22X-7	99 fpm
B25X-7	95 fpm
B30X-7	83 fpm
B35X-7	75 fpm
B40X-7	69 fpm
B45X-7	65 fpm
B50X-7	61 fpm

Model Number	Max Full Load Lift Gradeability
B16X-7	26%
B18X-7	25%
B20X-7	24%
B22X-7	27%
B25X-7	25%
B30X-7	22%
B35X-7	20%
B40X-7	17%
B45X-7	16%
B50X-7	15%

Model Number	Voltage
B16X-7	48 V
B18X-7	48 V
B20X-7	48 V
B22X-7	80 V
B25X-7	80 V
B30X-7	80 V
B35X-7	80 V
B40X-7	80 V
B45X-7	80 V
B50X-7	80 V

LOAD CAPACITY

3,200 – 10,000 LBS

TURNING RADIUS

73 – 104"

VOLTAGE

48 – 80 V

Request a Quote

Overview

Bobcat’s 7 Series Electric Outdoor forklifts are designed for heavy-duty performance with a focus on low operating costs and high productivity. High torque AC power is suitable for heavy lifting, and it has zero emissions and quiet operation. With pneumatic tires handling uneven terrain and waterproof components protecting internal systems.

Performance

Smooth and responsive acceleration
High visibility mast
Rounded counterweight
Hydraulic cushioned valve-in secondary cylinder
Auto tilt leveling
Direction switch on the steering column

Ergonomics

Easy grip entry bar
Large angled floor plate
Rounded battery cover
Easy-to-read instrument panel
Adjustable tilt steering columns
Hydraulic control lever with direction switch
Large cup holder
USB port & 12V power outlet
Clipboard holder

Safety Features

Guardian Stability System (GSS)
Operator Sensing System (OSS)
Anti rollback
Low battery warning alarm
Mast lowering interlock & tilt lock
Emergency stop switch
Adjustable speed control
Back-up alarm
Large mirrors
Amber strobe
Electromagnetic parking brake
LED Lights
Front and rear flood LED lights

Ease of Service

Full AC system
IP65-rated Curtis controller
Easy to access controller
Wide open battery hood cover
Tool-less side cover with air ventilation
Oil-cooled disc brakes

					Options


							Custom Forks
								Tailor the equipment to your specific material handling needs

							Coil Ram Attachments
								Efficiently handle heavy, coiled materials like steel, concrete pipe, and carpet

							Extensions
								Handle oversized, long, and irregularly shaped loads

							Clamp Attachments
								Securely grip items to prevent damage and facilitate the handling of irregularly shaped loads

							Vision Plus Pedestrian Detection
								Uses cameras and AI to enhance operator awareness and prevent collisions

							LED Work Lights
								Improve visibility in low-light conditions

							Fire Extinguisher
								Immediate tool for fighting small fires caused by fuel or electrical issues

Get updates from Summit

Home Bobcat Page 18

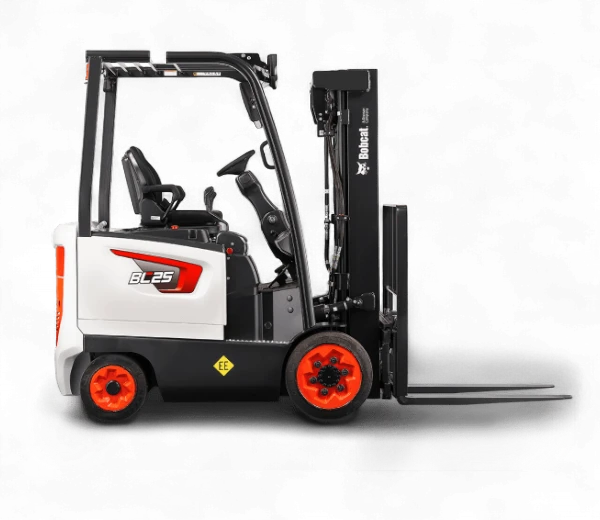

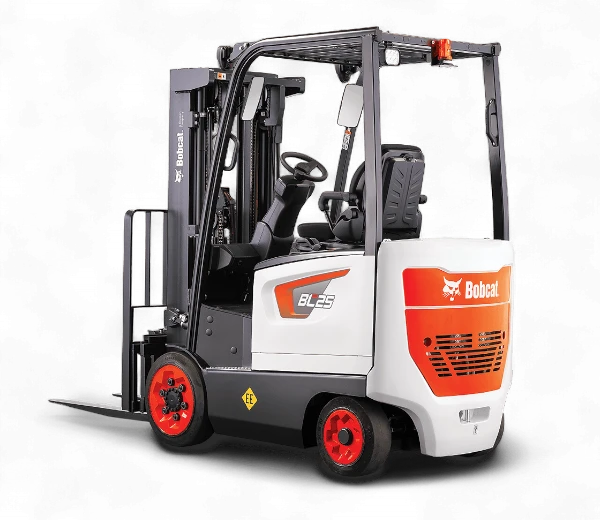

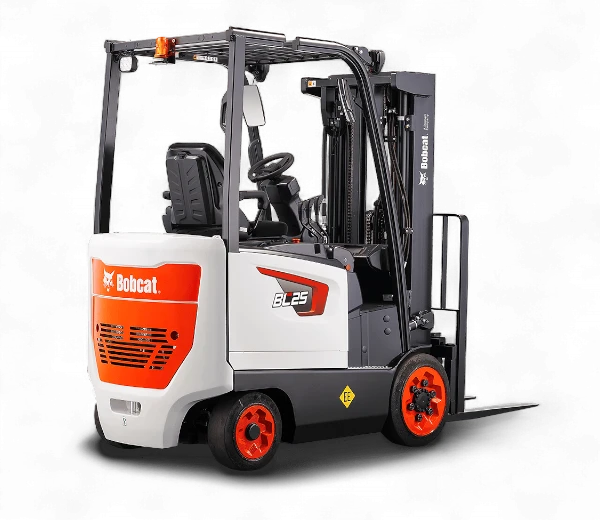

Bobcat 7 Series Electric Indoor Forklift

The 4-wheel cushion electric trucks continue Bobcat’s tradition of delivering efficient, reliable products while offering the best value for material handling needs.

The Bobcat 7 Series provides smooth operation in various work applications. With the precision AC motor controller and the optimized design, these forklifts deliver efficient operation even in the tightest spaces.

Request a Quote

Bobcat 7 Series Electric Indoor Forklift Catalog

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max Fork Height	Lift Speed	Gradeability
BC20S-7	4,000 lbs	44"	87"	176"	36 V: 67 fpm / 48 V: 91 fpm	36 V: 22% / 48 V: 24%
BC25S-7	5,000 lbs	44"	87"	176"	36 V: 57 fpm / 48 V: 79 fpm	36 V: 21% / 48 V: 24%
BC25S-7	5,000 lbs	44"	87"	176"	36 V: 57 fpm / 48 V: 79 fpm	36 V: 21% / 48 V: 24%
BC25SE-7	5,000 lbs	44"	87"	176"	36 V: 57 fpm / 48 V: 79 fpm	36 V: 21% / 48 V: 24%
BC30S-7	6,000 lbs	44"	87"	176"	36 V: 53 fpm / 48 V: 69 fpm	36 V: 21% / 48 V: 24%
BC32S-7	6,500 lbs	44"	87"	176"	36 V: 53 fpm / 48 V: 69 fpm	36 V: 21% / 48 V: 24%

Model Number	Load Capacity
BC20S-7	4,000 lbs
BC25S-7	5,000 lbs
BC25S-7	5,000 lbs
BC25SE-7	5,000 lbs
BC30S-7	6,000 lbs
BC32S-7	6,500 lbs

Model Number	Width
BC20S-7	44"
BC25S-7	44"
BC25S-7	44"
BC25SE-7	44"
BC30S-7	44"
BC32S-7	44"

Model Number	Height
BC20S-7	87"
BC25S-7	87"
BC25S-7	87"
BC25SE-7	87"
BC30S-7	87"
BC32S-7	87"

Model Number	Max Fork Height
BC20S-7	176"
BC25S-7	176"
BC25S-7	176"
BC25SE-7	176"
BC30S-7	176"
BC32S-7	176"

Model Number	Lift Speed
BC20S-7	36 V: 67 fpm / 48 V: 91 fpm
BC25S-7	36 V: 57 fpm / 48 V: 79 fpm
BC25S-7	36 V: 57 fpm / 48 V: 79 fpm
BC25SE-7	36 V: 57 fpm / 48 V: 79 fpm
BC30S-7	36 V: 53 fpm / 48 V: 69 fpm
BC32S-7	36 V: 53 fpm / 48 V: 69 fpm

Model Number	Gradeability
BC20S-7	36 V: 22% / 48 V: 24%
BC25S-7	36 V: 21% / 48 V: 24%
BC25S-7	36 V: 21% / 48 V: 24%
BC25SE-7	36 V: 21% / 48 V: 24%
BC30S-7	36 V: 21% / 48 V: 24%
BC32S-7	36 V: 21% / 48 V: 24%

*Based on 24″ load center
**Add load length and clearance
Product specifications may not reflect the most current product details. Authorized Bobcat dealers retain the most current product specifications. All specifications should be verified by an authorized Bobcat dealer prior to purchase.

LOAD CAPACITY

4000 – 6500 LBS

TURNING RADIUS

74 – 80"

VOLTAGE

36 – 48 V

Request a Quote

Overview

The 7 Series Electric Indoor Forklifts are designed for productivity, safety, and operator comfort in indoor environments, featuring smooth AC controllers, oil-cooled disc brakes, and excellent visibility. Key elements include ergonomic operator compartments with padded seating and intuitive controls, digital displays providing operational information, and safety features like rear alarms and electromagnetic parking brakes.

These forklifts are reliable and efficient, offering a low total cost of ownership.

Performance

Excellent visibility
Electromagnetic automatic parking brake

Ergonomics

Ergonomically placed hydraulic controls
Cushioned rubber mat
Rounded battery cover
Easy-to-read instrument panel
Adjustable tilt steering columns
Hydraulic control lever with direction switch
Large cup holder
USB port & 12V power outlet
Clipboard holder

Safety Features

Operator Sensing System (OSS)
Guardian Stability System (GSS)
Must be in neutral to start
Mast lowering interlock
Unlimited ramp hold
Emergency stop switch
Low battery warning alarm
Orange ELR seat belt
Brake oil & seat belt warning indicator
Turtle mode
Cornering speed control
Static strap

Ease of Service

Easy to access controller and motors
Wide opening battery cover
Side cover with air ventilation
Durable heat-resistant cables

					Options


							FFT Mast
								'Full Free Triple'  provides maximum forward visibility for the operator

							Battery Roll-Out
								Fast battery swap

							Cooler/Freezer Packages
								Designed for extreme temperatures use

							Overhead Guard
								For enhanced safety, operator visibility, and weather protection

							Auto Tilt Leveling
								Returns the mast or attachment to a vertical or level position with the push of a button

							Non-Marking Tires
								Prevents unsightly black marks and dust on floors

							Blue Spotlight
								For increased awareness and pedestrian warning

							Fire Extinguisher
								Immediate tool for fighting small fires caused by fuel or electrical issues

							Fingertip Control
								Manage the forklift's hydraulics with simple, low-effort finger movements

							Grammer MSG65 Premium Seat
								Mechanical suspension seat to improve operator comfort and reduce fatigue caused by vibrations

							Panoramic Mirrors
								Increases the operator's range of vision

							Modular Cab
								Climate-controlled workspace, reduces noise and vibration

Get updates from Summit

Home Bobcat Page 18

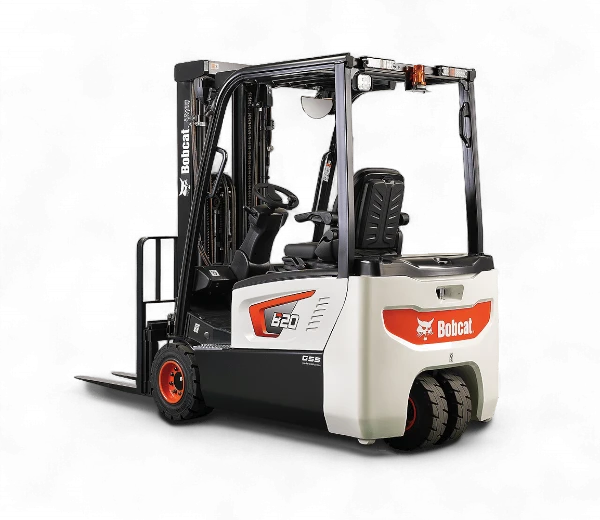

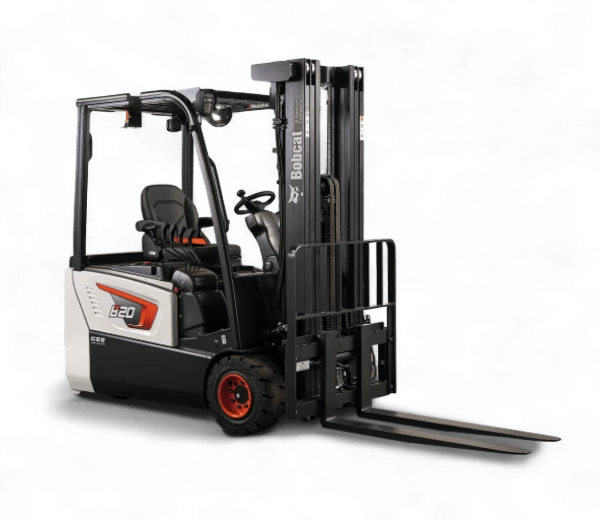

Bobcat 7 Series 3-Wheel Electric Forklift

Value & Performance for Indoor and Outdoor Handling

Bobcat’s 7 Series 3-Wheel Electric counterbalance forklift trucks continue Bobcat’s tradition of delivering simple, powerful performance at the best possible value for material handling needs.

Request a Quote

Bobcat 7 Series Electric Forklift Catalog

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max Fork Height	Max Full Load Lift Speed	Max Full Load Gradeability
B15T-7	3,000 lbs	43"	36 V: 79" / 48 V: 85"	36 V: 160" / 48 V: 171"	36 V: 61 fpm / 48 V: 79 fpm	36 V: 24% / 48 V: 26%
B18T-7	3,500 lbs	43"	36 V: 79" / 48 V: 85"	36 V: 160" / 48 V: 171"	36 V: 61 fpm / 48 V: 79 fpm	36 V: 24% / 48 V: 26%
B20T-7	4,000 lbs	43"	36 V: 79" / 48 V: 85"	36 V: 160" / 48 V: 171"	36 V: 61 fpm / 48 V: 79 fpm	36 V: 24% / 48 V: 26%

Model Number	Load Capacity
B15T-7	3,000 lbs
B18T-7	3,500 lbs
B20T-7	4,000 lbs

Model Number	Width
B15T-7	43"
B18T-7	43"
B20T-7	43"

Model Number	Height
B15T-7	36 V: 79" / 48 V: 85"
B18T-7	36 V: 79" / 48 V: 85"
B20T-7	36 V: 79" / 48 V: 85"

Model Number	Max Fork Height
B15T-7	36 V: 160" / 48 V: 171"
B18T-7	36 V: 160" / 48 V: 171"
B20T-7	36 V: 160" / 48 V: 171"

Model Number	Max Full Load Lift Speed
B15T-7	36 V: 61 fpm / 48 V: 79 fpm
B18T-7	36 V: 61 fpm / 48 V: 79 fpm
B20T-7	36 V: 61 fpm / 48 V: 79 fpm

Model Number	Max Full Load Gradeability
B15T-7	36 V: 24% / 48 V: 26%
B18T-7	36 V: 24% / 48 V: 26%
B20T-7	36 V: 24% / 48 V: 26%

LOAD CAPACITY

3000 – 4000 LBS

TURNING RADIUS

60 – 74"

VOLTAGE

36 – 48 V

Request a Quote

Overview

The Bobcat 7 Series 3-Wheel Electric forklift is designed for powerful, simple performance in tight spaces, offering enhanced comfort and features like an electric foot brake, improved operator-focused ergonomics, and blue safety spotlights to boost productivity and lower ownership costs. With a tight turning radius, this nimble forklift excels at maneuvering through aisles and stacking heavy loads.

Performance

Full AC system chassis
E-motor foot brake
Rounded counterweight
IP65-rated Curtis controller
IP43-rated PAL enclosed motors
Electromagnetic automatic parking brake

Ergonomics

Easy grip entry bar
Large angled floor plate
Rounded battery cover
Easy-to-read instrument panel
Adjustable tilt steering columns
Hydraulic control lever with direction switch
Large cup holder
USB port & 12 V power outlet
Clipboard holder

Safety Features

Large step plate with anti-slip pattern
Operator Sensing System (OSS)
Neutral safety switch
Unlimited ramp hold
Battery discharge indicator
Seat belt indicator
Mast lowering interlock & tilt lock
Rear grab handle
Emergency stop switch
Guardian stability system
Front and rear flood LED lights

Ease of Service

Easy to access controller and motors
Wide opening battery cover
Side cover with air ventilation
Durable heat-resistant cables

					Options


							Auto Tilt Leveling
								Returns the mast or attachment to a vertical or level position with the push of a button

							Cushion Tires
								For indoor use on smooth, hard surfaces

							Battery Slide-Out
								Improves safety, increases productivity by allowing the battery to be extracted horizontally

							Cold Storage Package
								Enclosed cabin and heaters

							Fingertip Control
								Manage the forklift's hydraulics with simple, low-effort finger movements

							Grammer MSG65 Premium Seat
								Mechanical suspension seat to improve operator comfort and reduce fatigue caused by vibrations

							Panoramic Mirrors
								Increases the operator's range of vision

							Special Height Overhead Guards
								Operate safely in environments with low overhead clearances

							Modular Cab
								Climate-controlled workspace, reduces noise and vibration

Get updates from Summit

Home Bobcat Page 18

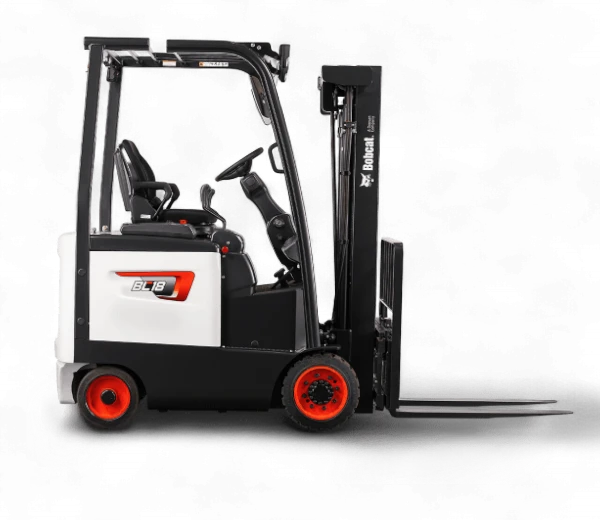

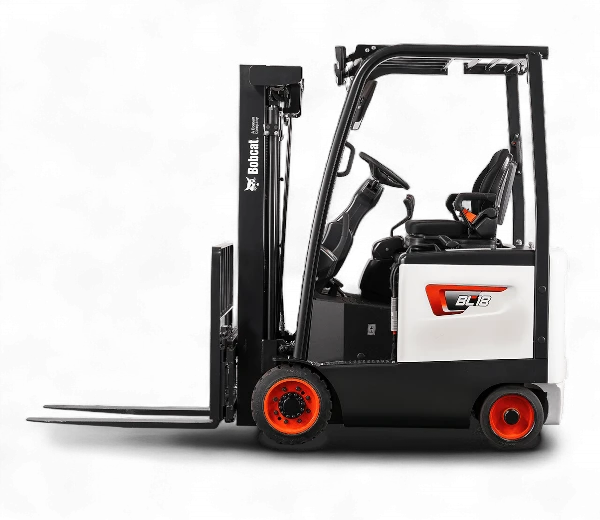

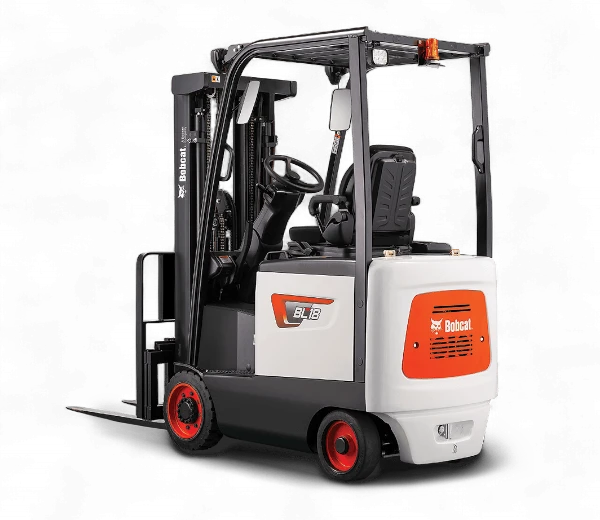

Bobcat Pro-5 Series Electric Forklift

Lower Operating Costs & Improved Performance

Bobcat focused on performance, productivity, and energy efficiency in developing the Pro-5 Series. By providing complete AC control of both drive and hydraulic systems, these forklifts offer advantages in productivity packages.

Request a Quote

Bobcat Cushion Tire Electric Forklifts Catalog

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max Fork Height	Ma Xfull Load Lift Speed	Gradeability	Voltage
BC15S-5	3,000 lbs	37"	84"	171"	73 fpm	14%	36/48 V
BC18S-5	3,500 lbs	37"	84"	171"	69 fpm	13%	36/48 V
BC20SC-5	4,000 lbs	39"	84"	171"	63 fpm	12%	36/48 V

Model Number	Load Capacity
BC15S-5	3,000 lbs
BC18S-5	3,500 lbs
BC20SC-5	4,000 lbs

Model Number	Width
BC15S-5	37"
BC18S-5	37"
BC20SC-5	39"

Model Number	Height
BC15S-5	84"
BC18S-5	84"
BC20SC-5	84"

Model Number	Max Fork Height
BC15S-5	171"
BC18S-5	171"
BC20SC-5	171"

Model Number	Ma Xfull Load Lift Speed
BC15S-5	73 fpm
BC18S-5	69 fpm
BC20SC-5	63 fpm

Model Number	Gradeability
BC15S-5	14%
BC18S-5	13%
BC20SC-5	12%

Model Number	Voltage
BC15S-5	36/48 V
BC18S-5	36/48 V
BC20SC-5	36/48 V

LOAD CAPACITY

3,000 – 4,000 lbs

TURNING RADIUS

69 – 71"

VOLTAGE

36V – 48 V

Request a Quote

Overview

Bobcat Pro-5 Series Forklifts are designed for high performance, efficiency, and operator comfort with features like AC technology, energy-efficient designs, intuitive controls, and enhanced visibility. The Pro-5 Series is suitable for a wide range of applications, including those involving ramps, grades, and rough terrain.

Performance

Faster travel and lift speeds
Energy consumption efficiency
Closed-loop speed control system
Easily programmable performance selection
Reduced operating costs

Ergonomics

Operator-friendly features of intelligent instrument and control panel
Spacious operator compartment
High visibility overhead guard and front end

Safety Features

Operator Sensing System (OSS)
Intelligent Torque Control (ITC)
Steering angle sensor

Ease of Service

Maintenance-free electric motors
Run time and troubleshooting diagnostics

					Options


							Strobe Light
								Bright, sharp flashes to quickly capture attention

							Blue Spotlight
								For increased awareness and pedestrian warning

							LED Work Lights
								Improve visibility in low-light conditions

							Roll & Drum Clamps
								For secure handling of cylindrical loads

							Hoisting Attachments
								Increase operational efficiency, enhance productivity, improve safety

							Specialty Forks
								Improve efficiency and productivity

							Hydraulic Clamps & Grapples
								Precisely and securely grip non-palletized or irregularly shaped items

Bobcat 7 Series Walkie Reach Stacker

Page Menu

Specs

Specifications

LOAD CAPACITY

TURNING RADIUS

TRAVEL SPEED

Overview

Performance

Ergonomics

Safety Features

Ease of Service

Options

Related Products

Core Electric

Bobcat 7 Series PLUS Reach Truck Forklift

Bobcat 9 Series End-Controlled Rider Pallet Jack

Bobcat 9 Series High Level Order Picker

Get updates from Summit

Bobcat 9 Series End-Controlled Rider Pallet Jack

Page Menu

Specs

Specifications

LOAD CAPACITY

TURNING RADIUS

VOLTAGE

Overview

Performance

Ergonomics

Safety Features

Ease of Service

Options

Related Products

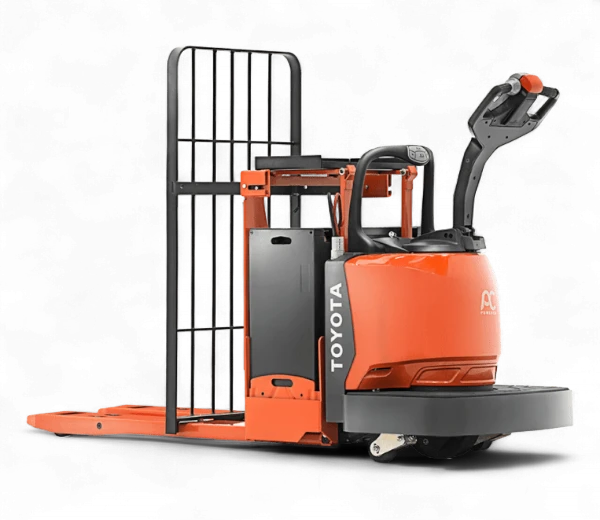

Toyota End-Controlled Rider Pallet Jack Forklift

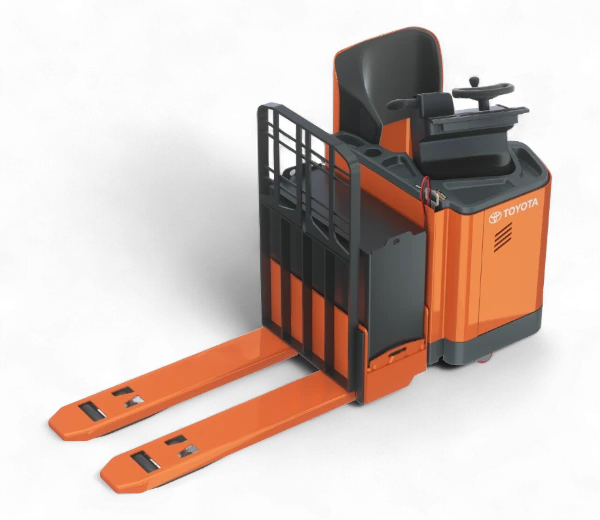

Toyota Enclosed End Rider Pallet Jack Forklift

Get updates from Summit

Bobcat TL519 Telehandler

Page Menu

Specs

Specifications

HORSEPOWER

AUXILIARY Hydraulic FLOW

MAX TRAVEL SPEED

Overview

Performance

Durability

Ease of Service

Attachments

Get updates from Summit

Bobcat 9 Series High Level Order Picker

Page Menu

Specs

Specifications

LOAD CAPACITY

TURNING RADIUS

VOLTAGE

Overview

Performance

Ergonomics

Safety Features

Ease of Service

Options

Related Products

Core Electric

Toyota Multidirectional Reach Truck Forklift

Toyota Furniture Order Picker Forklift

Toyota High-Capacity Reach Truck Forklift

Get updates from Summit

Bobcat 7 Series PLUS Reach Truck Forklift

Page Menu

Specs

Specifications

LOAD CAPACITY

TURNING RADIUS

VOLTAGE

Overview

Performance

Ergonomics

Safety Features

Ease of Service
