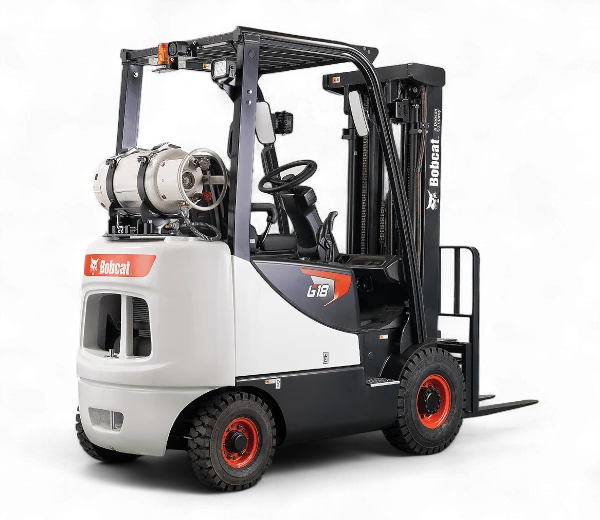

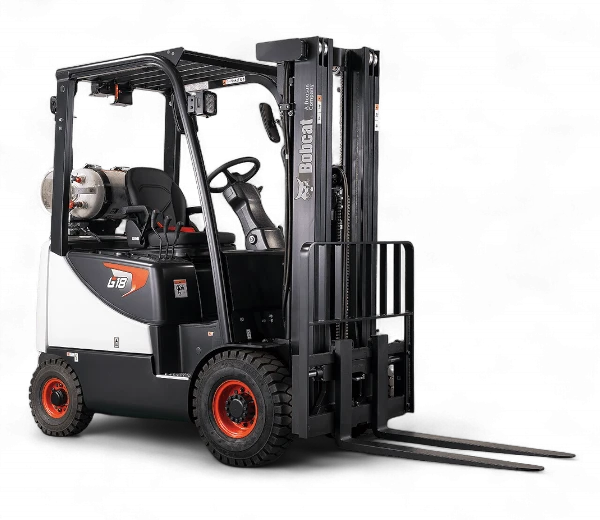

Bobcat Pro 5 Series IC Outdoor Forklift

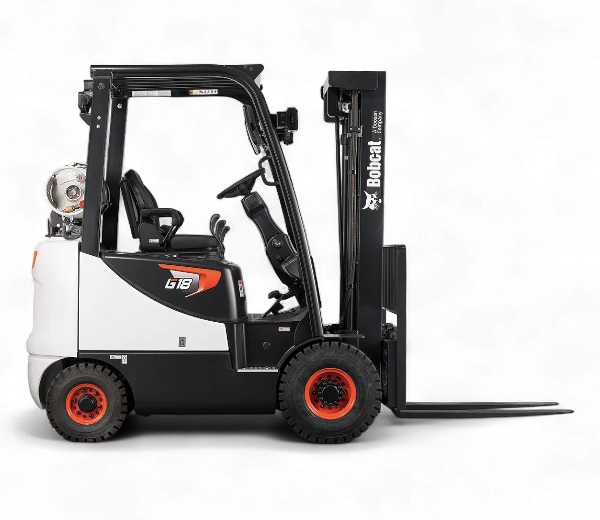

Bobcat Pro-5 Series IC Outdoor side view

Enhanced Traction on Rough Terrain

The Bobcat Pro 5 Series IC Outdoor Forklift is an internal combustion (IC) forklift designed for durability and productivity in outdoor environments, featuring powerful LPG engines and an operator-friendly design.

Key features include a spacious, comfortable operator compartment with adjustable controls and ample legroom, and a high-visibility mast and overhead guard.

Request a Quote

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max Fork Height	Lift Speed	Gradeability	Fuel
G15S-5	3,000 lbs	42"	86"	130"	118 fpm	35%	LPG
G18S-5	3,500 lbs	42"	86"	130"	118 fpm	31%	LPG
G20SC-5	4,000 lbs	42"	86"	130"	118 fpm	28.5%	LPG

Model Number	Load Capacity
G15S-5	3,000 lbs
G18S-5	3,500 lbs
G20SC-5	4,000 lbs

Model Number	Width
G15S-5	42"
G18S-5	42"
G20SC-5	42"

Model Number	Height
G15S-5	86"
G18S-5	86"
G20SC-5	86"

Model Number	Max Fork Height
G15S-5	130"
G18S-5	130"
G20SC-5	130"

Model Number	Lift Speed
G15S-5	118 fpm
G18S-5	118 fpm
G20SC-5	118 fpm

Model Number	Gradeability
G15S-5	35%
G18S-5	31%
G20SC-5	28.5%

Model Number	Fuel
G15S-5	LPG
G18S-5	LPG
G20SC-5	LPG

*Based on 24″ load center
**Add load length and clearance. Product specifications may not reflect the most current product details. Authorized Bobcat dealers retain the most current product specifications. All specifications should be verified by an authorized Bobcat dealer prior to purchase.

LOAD CAPACITY

3,000 – 4,000 LBS

TURNING RADIUS

79 – 81"

FUEL

LPG

Request a Quote

Overview

The Bobcat Pro 5 Series IC Outdoor Forklift offers benefits like enhanced traction on rough terrain, durable construction for demanding environments, and operator comfort and safety features. It is designed for outdoor work on uneven surfaces such as gravel and mud, featuring pneumatic tires, robust components, and high lifting capacity. Key advantages also include fuel-efficient engines and maintenance-friendly designs, resulting in better uptime.

Performance

High-powered and fuel-efficient LPG engine
Maintenance-free oil-cooled disc brakes
Power reversal transmission

Ergonomics

Refined operator comfort seating area
Integrated instrument panel

Safety Features

Lift and tilt locking hydraulic control valve
Operator Sensing System (OSS)
Alarm warning when operator leaves the seat without applying parking brake
Transmission to neutral when the operator leaves the seat
Seat belt indicator
Rear grab bar with horn

Ease of Service

Oil-cooled disc brakes
Power reversal transmission
Full floating drive axle
Hydrostatic steering system
Increased cooling capacity

					Options


							Integral Sideshifter
								Effortlessly move forks at the touch of a lever

							Clamp Attachments
								Securely grip items to prevent damage and facilitate the handling of irregularly shaped loads

							Full Cab with HVAC
								Climate-controlled environment to significantly improve operator comfort, safety, and productivity

							Solid Pneumatic Tires
								Solid rubber construction makes them impervious to punctures

							LED Work Lights
								Improve visibility in low-light conditions

Get updates from Summit

Home Bobcat Page 17

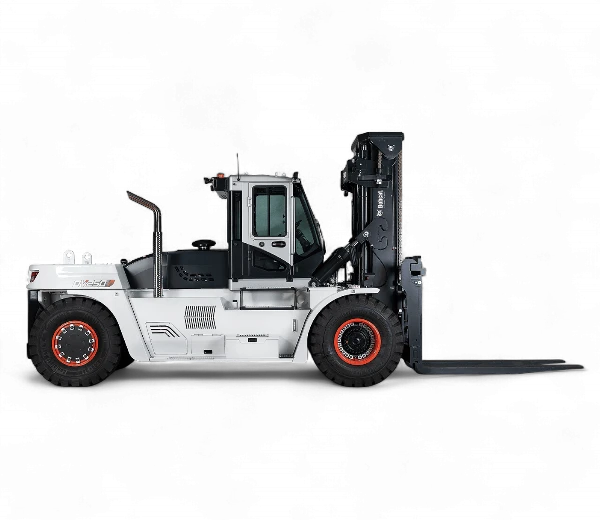

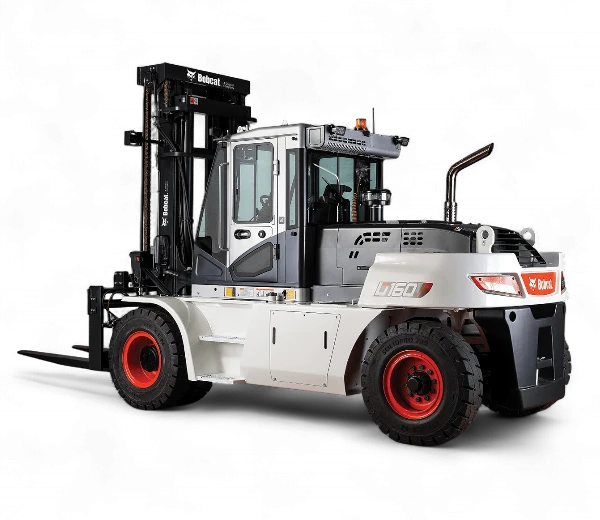

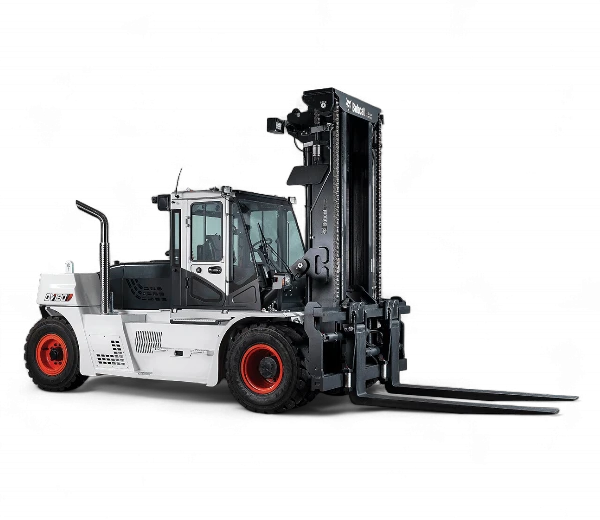

Bobcat 7 Series High Capacity IC Outdoor Forklift

Well-Suited for Construction, Mining, Forestry & Agriculture Applications

The Bobcat 7 Series High Capacity IC Outdoor Forklift is designed for rugged outdoor jobsites, featuring a durable frame, powerful internal combustion engines (IC), and high-capacity lifting. Key features include pneumatic tires for traction on rough terrain, an ergonomic operator compartment with enhanced visibility and comfort, and durability designed for demanding applications.

Request a Quote

Bobcat 7 Series High Capacity Outdoor 22-36,000 LBS Brochure Bobcat 7 Series High Capacity Outdoor 40-55,000 LBS Brochure

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max Fork Height	Lift Speed	Gradeability	Fuel
D100S-7	22,000 lbs	93"	117"	176"	81 fpm	42%	Diesel
D120S-7	26,000 lbs	93"	117"	176"	79 fpm	36%	Diesel
D140S-7	31,000 lbs	98"	124"	184"	73 fpm	36%	Diesel
D160S-7	36,000 lbs	98"	124"	184"	71 fpm	32%	Diesel
DV180S-7	40,000 lbs	100"	137"	205"	79 fpm	35.6%	Diesel
DV250S-7	55,000 lbs	120"	152"	229"	79 fpm	36%	Diesel

Model Number	Load Capacity
D100S-7	22,000 lbs
D120S-7	26,000 lbs
D140S-7	31,000 lbs
D160S-7	36,000 lbs
DV180S-7	40,000 lbs
DV250S-7	55,000 lbs

Model Number	Width
D100S-7	93"
D120S-7	93"
D140S-7	98"
D160S-7	98"
DV180S-7	100"
DV250S-7	120"

Model Number	Height
D100S-7	117"
D120S-7	117"
D140S-7	124"
D160S-7	124"
DV180S-7	137"
DV250S-7	152"

Model Number	Max Fork Height
D100S-7	176"
D120S-7	176"
D140S-7	184"
D160S-7	184"
DV180S-7	205"
DV250S-7	229"

Model Number	Lift Speed
D100S-7	81 fpm
D120S-7	79 fpm
D140S-7	73 fpm
D160S-7	71 fpm
DV180S-7	79 fpm
DV250S-7	79 fpm

Model Number	Gradeability
D100S-7	42%
D120S-7	36%
D140S-7	36%
D160S-7	32%
DV180S-7	35.6%
DV250S-7	36%

Model Number	Fuel
D100S-7	Diesel
D120S-7	Diesel
D140S-7	Diesel
D160S-7	Diesel
DV180S-7	Diesel
DV250S-7	Diesel

LOAD CAPACITY

22,000 – 55,000 LBS

TURNING RADIUS

169 – 235"

FUEL

Diesel

Request a Quote

Overview

The Bobcat 7 Series High Capacity IC Outdoor Forklift Series provides superior performance, durability, and operator comfort for handling heavy loads in demanding environments. Engines deliver high torque at low RPMs, ensuring reliable performance and reducing overall fuel consumption.

Performance

Electronically-controlled transmission
High torque engine that runs at low rpm
I-beam steer axle
Tapered roller bearings
All-in-one electronic inch & brake pedal
Control button to regulate speed with the brake while lifting at full power
Meets Emission Regulation (Tier IV & Stage IV) with SCR + DOC System

Ergonomics

Zeus Cabin
Spacious leg room
Wide floorboard

Safety Features

Operator Sensing System (OSS)
If operator is not in the seat
- Truck will not move
- Lift/lower function is disabled
- Tilt function is locked
Anti-slip step plat

Ease of Service

Check transmission oil through window located under the seat box
Integrated electrical components
Wide hood opening
Oil-cooled disc brakes

					Options


							Air Conditioner Kit
								Improves operator comfort and safety by reducing heat and fatigue

							Panoramic Mirrors
								Increases the operator's range of vision

							Heater Kit
								Improves operator comfort

							Radio or MP3 Player
								Improves working conditions, increases operator well-being, and potentially reduces fatigue

							Backup Camera
								Eliminates blind spots, reduces pedestrian accidents

							Windshield Defroster Fan
								Improves visibility; reduces accident risk

							Rear Assist Grip With Horn Button
								Prevents hand injuries by keeping hands inside the operator compartment

							Public Announcement (PA) System
								Warns pedestrians in noisy environments

Get updates from Summit

Home Bobcat Page 17

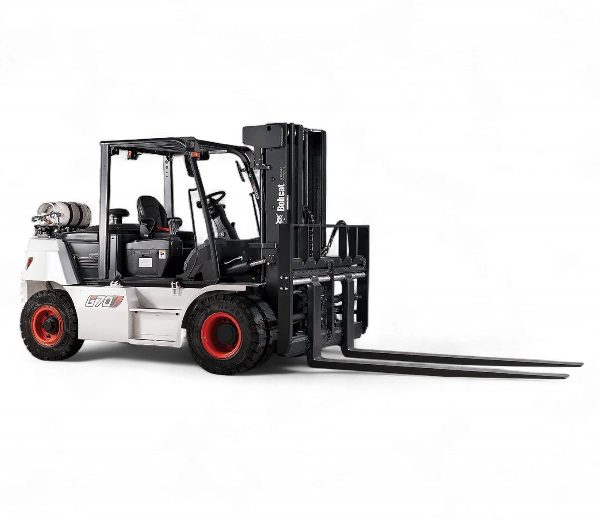

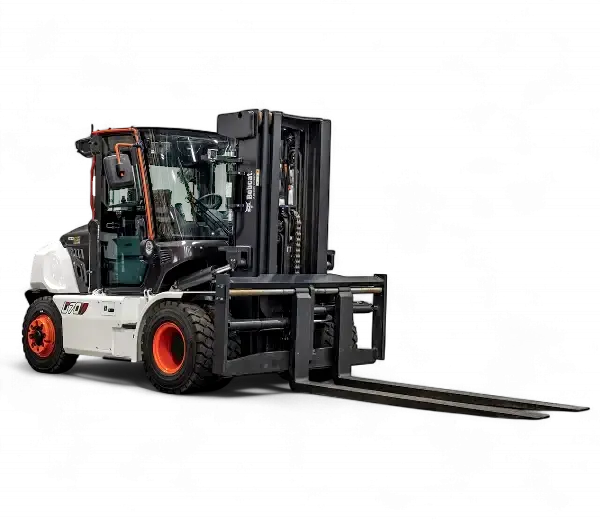

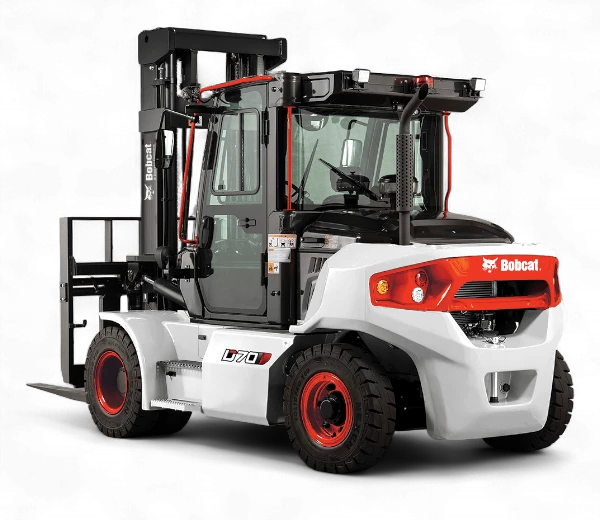

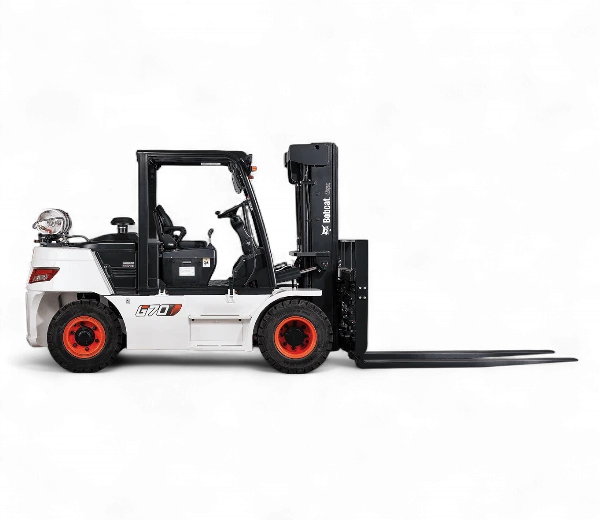

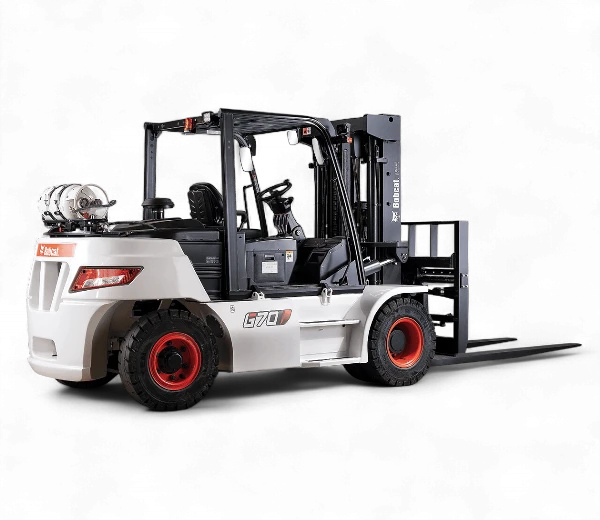

Bobcat 7 Series Large IC Outdoor Forklift

Robust Chassis, Durable Components, & Over-Built Frames for Demanding Outdoor Applications

Bobcat’s 7 Series Large IC Outdoor Forklift Series is a range of heavy-duty, internal combustion forklifts designed for rugged outdoor use, available in liquid propane gas (LPG) and diesel models. Key features include durable, high-capacity construction and comfortable, ergonomic operator compartments.

Request a Quote

Bobcat 7 Series Large IC Outdoor Forklift Brochure

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max Fork Height	Lift Speed	Gradeability	Fuel
G60S-7	13,500 lbs	83"	99"	170"	75 fpm	30%	LPG
D60S-7	13,500 lbs	83"	99"	170"	95 fpm	45%	Diesel
G70S-7	15,500 lbs	83"	99"	170"	75 fpm	45%	LPG
D70S-7	15,500 lbs	83"	99"	170"	85 fpm	39%	Diesel
D80S-7	17,500 lbs	88"	112"	172"	83 fpm	31%	Diesel
D90S-7	20,000 lbs	88"	112"	172"	81 fpm	28%	Diesel

Model Number	Load Capacity
G60S-7	13,500 lbs
D60S-7	13,500 lbs
G70S-7	15,500 lbs
D70S-7	15,500 lbs
D80S-7	17,500 lbs
D90S-7	20,000 lbs

Model Number	Width
G60S-7	83"
D60S-7	83"
G70S-7	83"
D70S-7	83"
D80S-7	88"
D90S-7	88"

Model Number	Height
G60S-7	99"
D60S-7	99"
G70S-7	99"
D70S-7	99"
D80S-7	112"
D90S-7	112"

Model Number	Max Fork Height
G60S-7	170"
D60S-7	170"
G70S-7	170"
D70S-7	170"
D80S-7	172"
D90S-7	172"

Model Number	Lift Speed
G60S-7	75 fpm
D60S-7	95 fpm
G70S-7	75 fpm
D70S-7	85 fpm
D80S-7	83 fpm
D90S-7	81 fpm

Model Number	Gradeability
G60S-7	30%
D60S-7	45%
G70S-7	45%
D70S-7	39%
D80S-7	31%
D90S-7	28%

Model Number	Fuel
G60S-7	LPG
D60S-7	Diesel
G70S-7	LPG
D70S-7	Diesel
D80S-7	Diesel
D90S-7	Diesel

LOAD CAPACITY

13,500 – 20,000 LBS

TURNING RADIUS

133 – 145"

FUEL

LPG or Diesel

Request a Quote

Overview

The Bobcat 7 Series Large IC Outdoor Forklift benefits include robust performance for harsh environments, exceptional operator comfort, enhanced productivity and safety features, and simplified serviceability. These forklifts feature durable frames and pneumatic tires for superior traction on uneven outdoor surfaces, and incorporate ergonomic design choices to reduce operator fatigue during long shifts. Safety is also a key focus, with features such as the Operator Sensing System and improved visibility to help prevent accidents.

Performance

High torque engine runs at low rpm
Powershift transmission
Hydraulic load-sensing technology

Ergonomics

Zeus Cabin
Spacious leg room
Wide floorboard

Safety Features

Operator Sensing System (OSS)
If operator is not in the seat
- Truck will not move
- Lift/lower function is disabled
- Tilt function is locked
Alarm sounds if parking brake not applied when operator leaves seat
Seat belt warning light on dashboard
Locking gas spring for hood
Anti-slip step plate

Ease of Service

Check transmission oil through window located under the seat box
Engine diagnostics
Wide hood opening

					Options


							Air Conditioner Kit
								Improves operator comfort and safety by reducing heat and fatigue

							Panoramic Mirrors
								Increases the operator's range of vision

							Heater Kit
								Improves operator comfort

							Radio or MP3 Player
								Improves working conditions, increases operator well-being, and potentially reduces fatigue

							Backup Camera
								Eliminates blind spots, reduces pedestrian accidents

Get updates from Summit

Home Bobcat Page 17

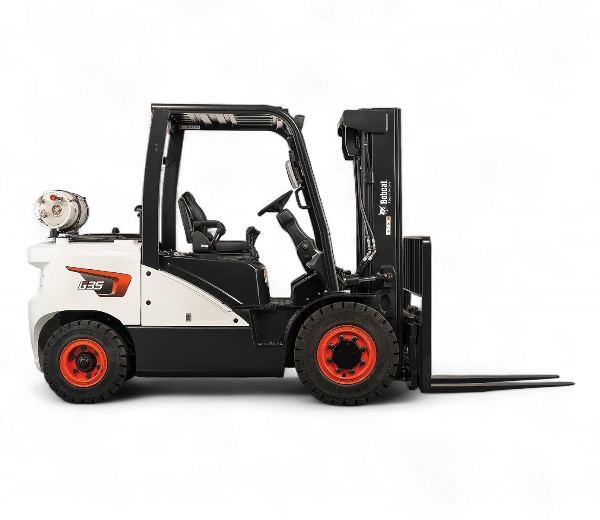

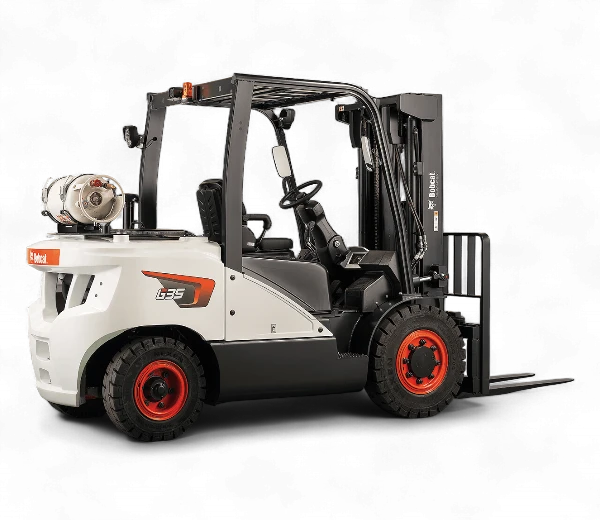

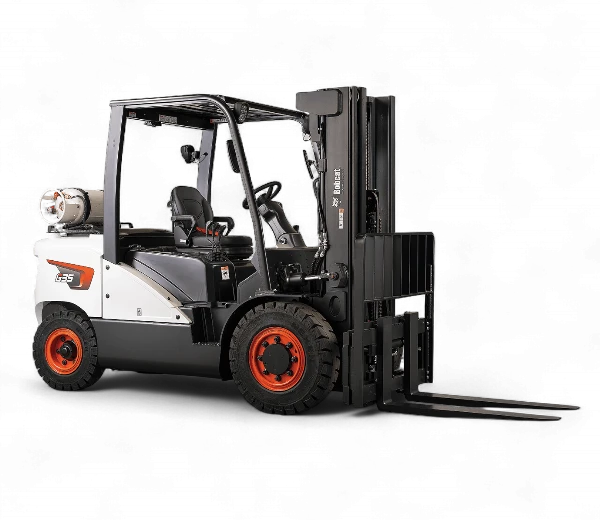

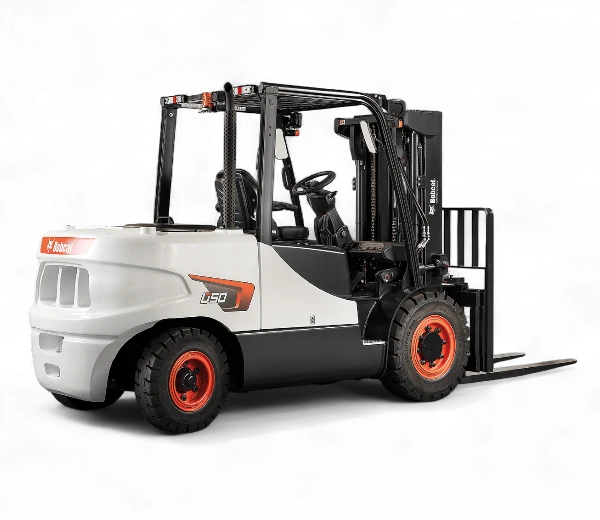

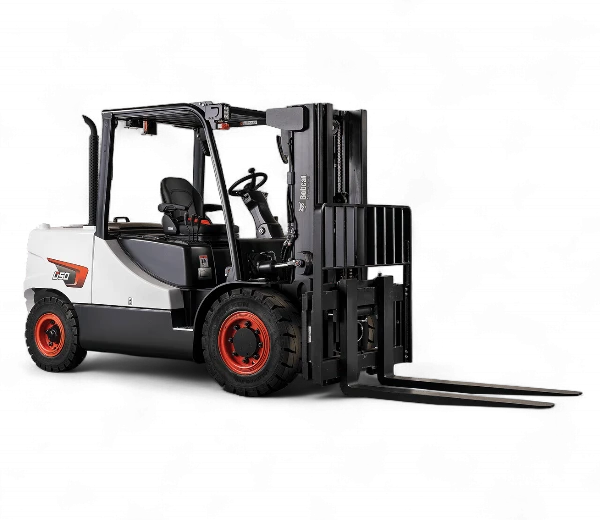

Bobcat 7 Series Mid IC Outdoor Forklift

Small Outside Turn Radius & Hydrostatic Steer Axle

The Bobcat 7 Series Mid IC Outdoor Forklift is an internal combustion forklift designed for demanding outdoor applications like lumber yards and scrap metal yards, offering a balance of productivity, durability, and operator comfort. Key features include an 8,000 to 12,000-pound capacity, oil-cooled disc brakes.

Request a Quote

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max Fork Height	Lift Speed	Gradeability	Fuel Type
G35S-7	8,000 lbs	54"	88"	168"	98 fpm	34.7%	LPG/Dual
D35S-7	8,000 lbs	54"	88"	168"	110 fpm	39.7%	Diesel
G40S-7	9,000 lbs	57"	88"	168"	98.4 fpm	30.8%	LPG/Dual
D40S-7	9,000 lbs	57"	88"	174"	108 fpm	35.6%	Diesel
G45S-7	10,000 lbs	57"	88"	174"	99 fpm	28.2%	LPG/Dual
D45S-7	10,000 lbs	57"	88"	174"	106 fpm	32.3%	Diesel
G50C-7	11,000 lbs	57"	94"	176"	97 fpm	25.5%	LPG/Dual
D50C-7	11,000 lbs	57"	94"	176"	104 fpm	29.2%	Diesel
G55C-7	12,000 lbs	57"	94"	176"	93 fpm	23.6%	LPG/Dual
D55C-7	12,000 lbs	57"	94"	176"	103 fpm	26.9%	Diesel

Model Number	Load Capacity
G35S-7	8,000 lbs
D35S-7	8,000 lbs
G40S-7	9,000 lbs
D40S-7	9,000 lbs
G45S-7	10,000 lbs
D45S-7	10,000 lbs
G50C-7	11,000 lbs
D50C-7	11,000 lbs
G55C-7	12,000 lbs
D55C-7	12,000 lbs

Model Number	Width
G35S-7	54"
D35S-7	54"
G40S-7	57"
D40S-7	57"
G45S-7	57"
D45S-7	57"
G50C-7	57"
D50C-7	57"
G55C-7	57"
D55C-7	57"

Model Number	Height
G35S-7	88"
D35S-7	88"
G40S-7	88"
D40S-7	88"
G45S-7	88"
D45S-7	88"
G50C-7	94"
D50C-7	94"
G55C-7	94"
D55C-7	94"

Model Number	Max Fork Height
G35S-7	168"
D35S-7	168"
G40S-7	168"
D40S-7	174"
G45S-7	174"
D45S-7	174"
G50C-7	176"
D50C-7	176"
G55C-7	176"
D55C-7	176"

Model Number	Lift Speed
G35S-7	98 fpm
D35S-7	110 fpm
G40S-7	98.4 fpm
D40S-7	108 fpm
G45S-7	99 fpm
D45S-7	106 fpm
G50C-7	97 fpm
D50C-7	104 fpm
G55C-7	93 fpm
D55C-7	103 fpm

Model Number	Gradeability
G35S-7	34.7%
D35S-7	39.7%
G40S-7	30.8%
D40S-7	35.6%
G45S-7	28.2%
D45S-7	32.3%
G50C-7	25.5%
D50C-7	29.2%
G55C-7	23.6%
D55C-7	26.9%

Model Number	Fuel Type
G35S-7	LPG/Dual
D35S-7	Diesel
G40S-7	LPG/Dual
D40S-7	Diesel
G45S-7	LPG/Dual
D45S-7	Diesel
G50C-7	LPG/Dual
D50C-7	Diesel
G55C-7	LPG/Dual
D55C-7	Diesel

LOAD CAPACITY

8,000 – 12,000 LBS

TURNING RADIUS

110 – 117"

FUEL

LPG, DUAL, OR DIESEL

Request a Quote

Overview

The Bobcat 7 Series Mid IC Outdoor Forklift offers a combination of heavy-duty performance, enhanced operator comfort, and a low total cost of ownership. These pneumatic-tire forklifts are specifically engineered for robust and demanding outdoor material handling jobs.

Performance

High-torque engine runs at low rpm
Powershift transmission
Hydraulic load-sensing technology

Ergonomics

Wide open operator leg room
Stepless tiltable steering column
ergonomically located operator pedals
Wide mast window
Intuitive instrument panel
Optimum pedal system for exact speed control

Safety Features

Operator Sensing System (OSS)
Large seat back angle
Parking alarm
Seat belt indicator
Neutral shift feature

Ease of Service

Tool-less side cover and floor plate
Fuse and relay box located in front of the engine simplifies servicing
Hydrostatic steering system
Easy access grease fittings for proper lubrication
Oil-cooled disc brakes

					Options


							Orange Seat Belt
								Reminds the operator to buckle up

							Grammer MSG65 Premium Seat
								Mechanical suspension seat to improve operator comfort and reduce fatigue caused by vibrations

							Rear Grab Bar
								Reduces crushed hand injuries

							Solid Pneumatic Tires
								Solid rubber construction makes them impervious to punctures

							Foundry Package
								Component and system protection

Get updates from Summit

Home Bobcat Page 17

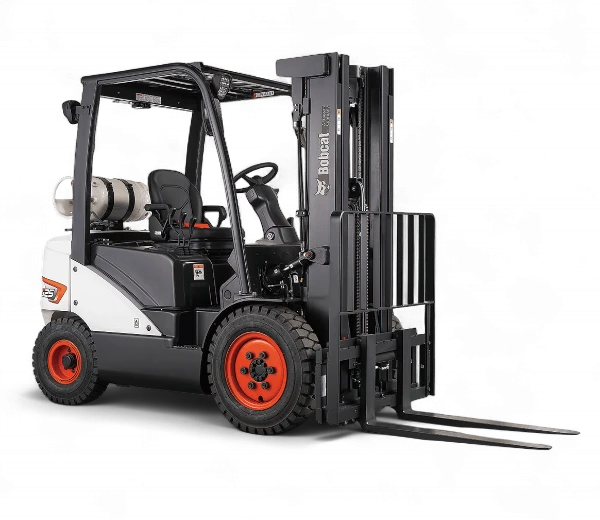

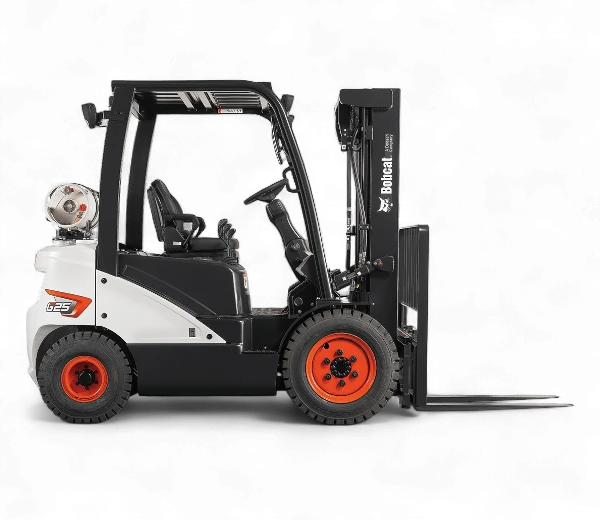

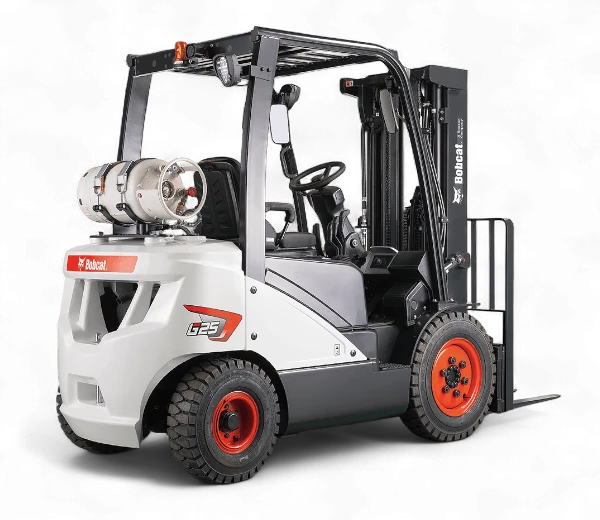

Bobcat 7 Series Core IC Outdoor Forklift

Keep Operations Running Smoothly

The Bobcat 7 Series Core IC Outdoor Forklift Series are internal combustion, pneumatic tire forklifts built for indoor and outdoor use, with capacities ranging from 4,000 to 7,000 pounds. These forklifts are designed for productivity and efficiency, featuring an operator presence system for safety, comfortable and spacious operator compartments, and high-visibility masts.

Request a Quote

Bobcat 7 Series Core IC Outdoor Forklift Brochure

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max Fork Height	Lift Speed	Gradeability	Fuel
G20N-7	4,000 lbs	46"	86"	177"	108 fpm	36%	LPG
G20E-7	4,000 lbs	46"	86"	177"	108 fpm	38.2%	LPG / Dual
D20S-7	4,000 lbs	46"	86"	177"	104 fpm	33%	Diesel
G25N-7	5,000 lbs	46"	86"	177"	105 fpm	30.5%	LPG
G25E-7	5,000 lbs	46"	86"	177"	105 fpm	33.4%	LPG / Dual
D25S-7	5,000 lbs	46"	86"	177"	102 fpm	28%	Diesel
G30N-7	6,000 lbs	47"	86"	177"	102 fpm	27.5%	LPG
G30E-7	6,000 lbs	47"	86"	177"	102 fpm	30%	LPG / Dual
D30S-7	6,000 lbs	47"	86"	177"	100 fpm	25.5%	Diesel
G33N-7	6,500 lbs	47"	86"	177"	105 fpm	25.5%	LPG
G33E-7	6,500 lbs	47"	86"	177"	105 fpm	27.9%	LPG
D33S-7	6,500 lbs	47"	86"	177"	95 fpm	24%	Diesel
G35NC-7	7,000 lbs	48"	86"	168"	104 fpm	23.5%	LPG
G35EC-7	7,000 lbs	48"	86"	168"	104 fpm	25.1%	LPG
D35C-7	7,000 lbs	48"	86"	168"	93 fpm	22%	Diesel

Model Number	Load Capacity
G20N-7	4,000 lbs
G20E-7	4,000 lbs
D20S-7	4,000 lbs
G25N-7	5,000 lbs
G25E-7	5,000 lbs
D25S-7	5,000 lbs
G30N-7	6,000 lbs
G30E-7	6,000 lbs
D30S-7	6,000 lbs
G33N-7	6,500 lbs
G33E-7	6,500 lbs
D33S-7	6,500 lbs
G35NC-7	7,000 lbs
G35EC-7	7,000 lbs
D35C-7	7,000 lbs

Model Number	Width
G20N-7	46"
G20E-7	46"
D20S-7	46"
G25N-7	46"
G25E-7	46"
D25S-7	46"
G30N-7	47"
G30E-7	47"
D30S-7	47"
G33N-7	47"
G33E-7	47"
D33S-7	47"
G35NC-7	48"
G35EC-7	48"
D35C-7	48"

Model Number	Height
G20N-7	86"
G20E-7	86"
D20S-7	86"
G25N-7	86"
G25E-7	86"
D25S-7	86"
G30N-7	86"
G30E-7	86"
D30S-7	86"
G33N-7	86"
G33E-7	86"
D33S-7	86"
G35NC-7	86"
G35EC-7	86"
D35C-7	86"

Model Number	Max Fork Height
G20N-7	177"
G20E-7	177"
D20S-7	177"
G25N-7	177"
G25E-7	177"
D25S-7	177"
G30N-7	177"
G30E-7	177"
D30S-7	177"
G33N-7	177"
G33E-7	177"
D33S-7	177"
G35NC-7	168"
G35EC-7	168"
D35C-7	168"

Model Number	Lift Speed
G20N-7	108 fpm
G20E-7	108 fpm
D20S-7	104 fpm
G25N-7	105 fpm
G25E-7	105 fpm
D25S-7	102 fpm
G30N-7	102 fpm
G30E-7	102 fpm
D30S-7	100 fpm
G33N-7	105 fpm
G33E-7	105 fpm
D33S-7	95 fpm
G35NC-7	104 fpm
G35EC-7	104 fpm
D35C-7	93 fpm

Model Number	Gradeability
G20N-7	36%
G20E-7	38.2%
D20S-7	33%
G25N-7	30.5%
G25E-7	33.4%
D25S-7	28%
G30N-7	27.5%
G30E-7	30%
D30S-7	25.5%
G33N-7	25.5%
G33E-7	27.9%
D33S-7	24%
G35NC-7	23.5%
G35EC-7	25.1%
D35C-7	22%

Model Number	Fuel
G20N-7	LPG
G20E-7	LPG / Dual
D20S-7	Diesel
G25N-7	LPG
G25E-7	LPG / Dual
D25S-7	Diesel
G30N-7	LPG
G30E-7	LPG / Dual
D30S-7	Diesel
G33N-7	LPG
G33E-7	LPG
D33S-7	Diesel
G35NC-7	LPG
G35EC-7	LPG
D35C-7	Diesel

LOAD CAPACITY

4,000 – 7,000 LBS

TURNING RADIUS

87.4 – 95.3"

FUEL

LPG / DUAL / DIESEL

Request a Quote

Overview

Equipped with a high-torque industrial engine, the Bobcat 7 Series Core IC Outdoor Forklift delivers consistent power at low RPMs, reducing wear and tear while improving fuel efficiency. Pneumatic tires provide superior traction and stability, allowing the forklift to easily handle uneven surfaces like gravel, mud, and unpaved ground.

Performance

Smooth steering control
LPG/dual fuel with GCT K25 Engine
Better airflow to maximize cooling capacity

Ergonomics

Low-profile dash
Sculpted overhead guard
Adjustable suspension seat
Adjustable armrest

Safety Features

Mast inter-lock deactivation
Parking alarm
Seat belt indicator
Neutral shift feature

Ease of Service

Wide opening hood
Locking gas spring
Removable floor mat and plate
CAN bus communication
Junction box integration of fuses and relays

					Options


							Backup Camera
								Eliminates blind spots, reduces pedestrian accidents

							LED Work Lights
								Improve visibility in low-light conditions

							Blue Spotlight
								For increased awareness and pedestrian warning

							Rear Assist Grip With Horn Button
								Prevents hand injuries by keeping hands inside the operator compartment

							Air Suspension Seat
								Reduces shock and vibration

							Panoramic Mirrors
								Increases the operator's range of vision

							Cold Storage Conditioning
								Cold-resistant hydraulic fluids, seals, and electrical components, and stainless steel parts to prevent corrosion

Get updates from Summit

Home Bobcat Page 17

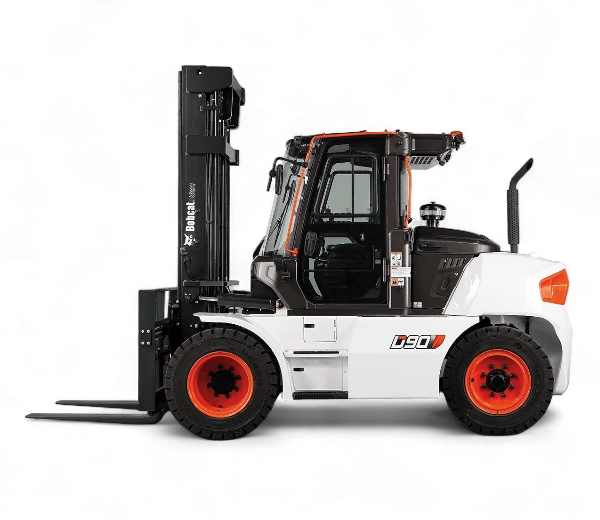

Bobcat 9 Series Large IC Outdoor Forklift

The Bobcat 9 Series Large IC Outdoor Forklift is built for outdoor use and tough job sites, with features like an adjustable steering column, comfortable seating, and advanced safety systems to improve both operator well-being and operational efficiency. Built with a robust frame and shaft-type carriage to withstand heavy use in harsh conditions.

Request a Quote

Bobcat 9 Series Large IC Outdoor Forklift Brochure

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max Fork Height	Lift Speed	Gradeability	Drive
D60S-9.55	13,500 lbs	84.9"	98.2"	118.1"	92.5 fpm	34.8%	55kW
D70S-9.55	15,500 lbs	84.9"	98.2"	118.1"	80.7 fpm	31%	55kW
D60S-9.80	13,500 lbs	84.9"	98.2"	118.1"	98.4 fpm	45%	80.9kW
D70S-9.80	15,500 lbs	84.9"	98.2"	118.1"	86.6 fpm	39%	80.9kW
D80S-9	17,500 lbs	87.8"	111.6"	122.1"	84.7 fpm	35%	80.9kW
D90S-9	20,000 lbs	87.8"	111.6"	122.1"	84.7 fpm	28%	80.9kW

Model Number	Load Capacity
D60S-9.55	13,500 lbs
D70S-9.55	15,500 lbs
D60S-9.80	13,500 lbs
D70S-9.80	15,500 lbs
D80S-9	17,500 lbs
D90S-9	20,000 lbs

Model Number	Width
D60S-9.55	84.9"
D70S-9.55	84.9"
D60S-9.80	84.9"
D70S-9.80	84.9"
D80S-9	87.8"
D90S-9	87.8"

Model Number	Height
D60S-9.55	98.2"
D70S-9.55	98.2"
D60S-9.80	98.2"
D70S-9.80	98.2"
D80S-9	111.6"
D90S-9	111.6"

Model Number	Max Fork Height
D60S-9.55	118.1"
D70S-9.55	118.1"
D60S-9.80	118.1"
D70S-9.80	118.1"
D80S-9	122.1"
D90S-9	122.1"

Model Number	Lift Speed
D60S-9.55	92.5 fpm
D70S-9.55	80.7 fpm
D60S-9.80	98.4 fpm
D70S-9.80	86.6 fpm
D80S-9	84.7 fpm
D90S-9	84.7 fpm

Model Number	Gradeability
D60S-9.55	34.8%
D70S-9.55	31%
D60S-9.80	45%
D70S-9.80	39%
D80S-9	35%
D90S-9	28%

Model Number	Drive
D60S-9.55	55kW
D70S-9.55	55kW
D60S-9.80	80.9kW
D70S-9.80	80.9kW
D80S-9	80.9kW
D90S-9	80.9kW

LOAD CAPACITY

13,500 – 20,000 LBS

TURNING RADIUS

133 – 145"

FUEL

Diesel

Request a Quote

Overview

The Bobcat 9 Series Large IC Outdoor forklift is designed for demanding applications, focusing on operator comfort, enhanced safety, and reliable performance with improved components and maintenance intervals. Key features include ergonomic operator compartments with intuitive controls and high-visibility masts. These forklifts are engineered to reduce operational expenses while maximizing productivity in various industrial environments.

Performance

Doosan engine
3 performance modes
Enhanced cooling capacity
3-speed transmission
Vehicle control unit
ProTek hot shift protection
Oil Cooled Disc Brakes – 5 yr., 10,000 hr. warranty
IP67-rated dust/waterproof connectors
Programmable forward/reverse speed limit

Ergonomics

Foot pedal
High comfort seat
Color LCD display
Convenience tray

Safety Features

Guardian Stability System (GSS)
Operator Sensing System (OSS)
Electronic parking brake
Hi-vis orange seat belt
Auto deceleration
Rearview mirror
Panoramic mirror

Ease of Service

Optimized oil change intervals
Planned maintenance notifications
Onboard diagnostics
Tool-less access panels
60° wide opening engine cover

					Options


							Backup Camera
								Eliminates blind spots, reduces pedestrian accidents

							LED Work Lights
								Improve visibility in low-light conditions

							Air Suspension Seat
								Reduces shock and vibration

							Cold Storage Conditioning
								Cold-resistant hydraulic fluids, seals, and electrical components, and stainless steel parts to prevent corrosion

Get updates from Summit

Home Bobcat Page 17

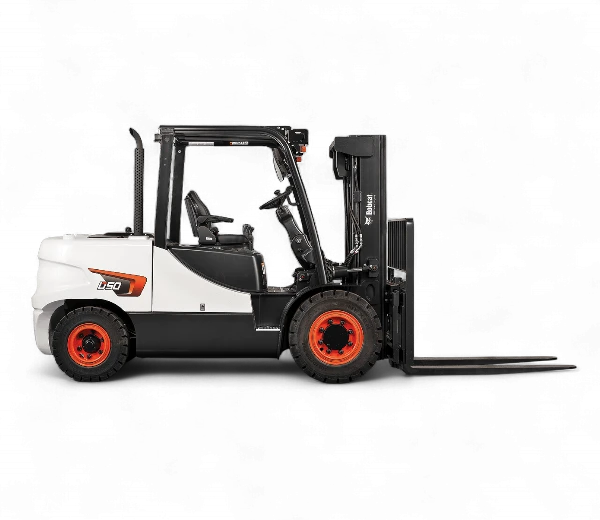

Bobcat 9 Series Mid IC Outdoor Forklift

For Heavy Use in Harsh Conditions

The Bobcat 9 Series Mid IC Outdoor Forklift is a durable, high-performance lift designed for heavy-duty outdoor use, featuring a powerful diesel engine, a comfortable and safe operator’s cab, and advanced technology.

Request a Quote

Bobcat 9 Series Outdoor Forklift Series Brochure

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max Fork Height	Lift Speed	Gradeability
D35S-9	8,000 lbs	54"	88"	118"	109 fpm	38.5%
D40S-9	9,000 lbs	58"	88"	118"	107 fpm	34.5%
D45S-9	10,000 lbs	58"	88"	118"	105 fpm	31.5%
D50C-9	11,000 lbs	58"	88"	120"	103 fpm	28.5%
D55C-9	12,000 lbs	58"	88"	120"	101 fpm	26%

Model Number	Load Capacity
D35S-9	8,000 lbs
D40S-9	9,000 lbs
D45S-9	10,000 lbs
D50C-9	11,000 lbs
D55C-9	12,000 lbs

Model Number	Width
D35S-9	54"
D40S-9	58"
D45S-9	58"
D50C-9	58"
D55C-9	58"

Model Number	Height
D35S-9	88"
D40S-9	88"
D45S-9	88"
D50C-9	88"
D55C-9	88"

Model Number	Max Fork Height
D35S-9	118"
D40S-9	118"
D45S-9	118"
D50C-9	120"
D55C-9	120"

Model Number	Lift Speed
D35S-9	109 fpm
D40S-9	107 fpm
D45S-9	105 fpm
D50C-9	103 fpm
D55C-9	101 fpm

Model Number	Gradeability
D35S-9	38.5%
D40S-9	34.5%
D45S-9	31.5%
D50C-9	28.5%
D55C-9	26%

LOAD CAPACITY

8,000 –12,000 LBS

TURNING RADIUS

108 – 114"

FUEL

Diesel

Request a Quote

Overview

The Bobcat 9 Series Mid IC Outdoor is a robust forklift designed for harsh outdoor environments, prioritizing operator comfort, enhanced visibility, and increased uptime through simplified maintenance. This Series is ideal for a broad range of heavy-duty tasks across various environments, including warehousing and distribution centers, manufacturing facilities, construction sites, and general material-handling operations that require consistent power and efficiency.

Performance

Doosan engine
3 performance modes
IP65-rated dust/waterproof connectors
Auto-shift transmission
Electronic inching
LED combination lamps
Transmission control unit
Vehicle control unit
Mast tilt indicator
Programmable forward/reverse speed limit

Ergonomics

Foot pedal
High comfort seat
Color LCD display
Convenience tray

Safety Features

Guardian Stability System (GSS)
Operator Sensing System (OSS)
Electronic parking brake
2-speed powershift transmission
Auto deceleration
Hi-vis orange seat belt
Oversized entry grab bars
Anti-skid step plate

Ease of Service

Optimized oil change intervals
Planned maintenance notifications
Onboard diagnostics
Tool-less access panels
70° wide opening engine cover
Dual element air cleaner

					Options


							Air Conditioner
								Improves operator comfort and safety by reducing heat and fatigue

							Heater Kit
								Improves operator comfort

							High Comfort Seat
								Improves operator comfort

							Steering Wheel Knob
								Increases efficiency by allowing for one-handed steering

							Backup Camera
								Eliminates blind spots, reduces pedestrian accidents

							Telescopic & Tilting Steering Column
								Allows operators to customize their driving position

							LED Work Lights
								Improve visibility in low-light conditions

							Integral Sideshifter
								Effortlessly move forks at the touch of a lever

							Fork Positioner
								Adjusts fork width from the cab, to save time, prevent damage, and reduce operator fatigue

							Clamp Attachments
								Securely grip items to prevent damage and facilitate the handling of irregularly shaped loads

							Rotators
								Rotate, dump, or invert loads

Get updates from Summit

Home Bobcat Page 17

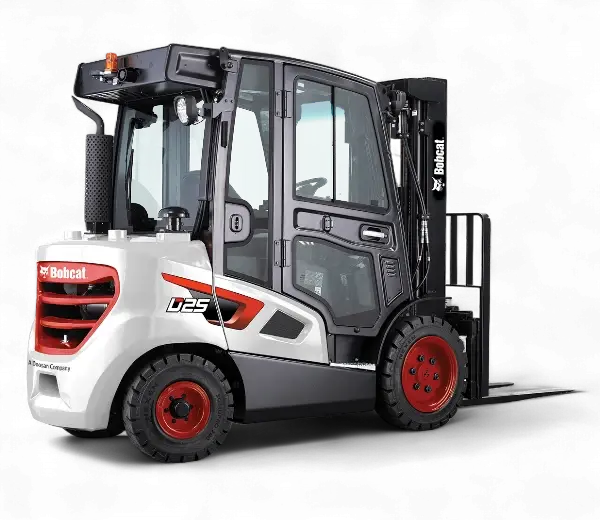

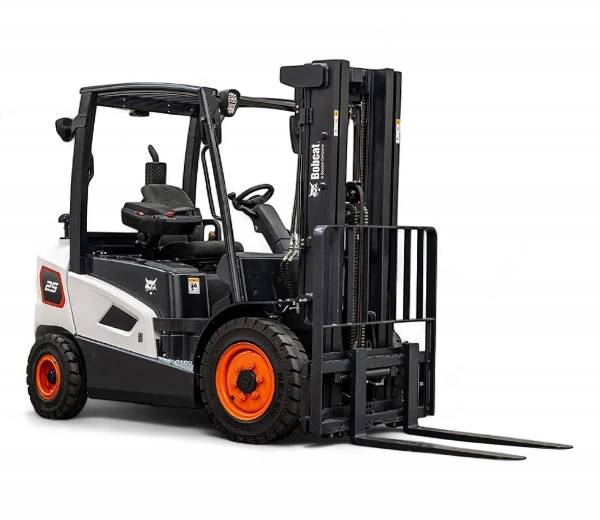

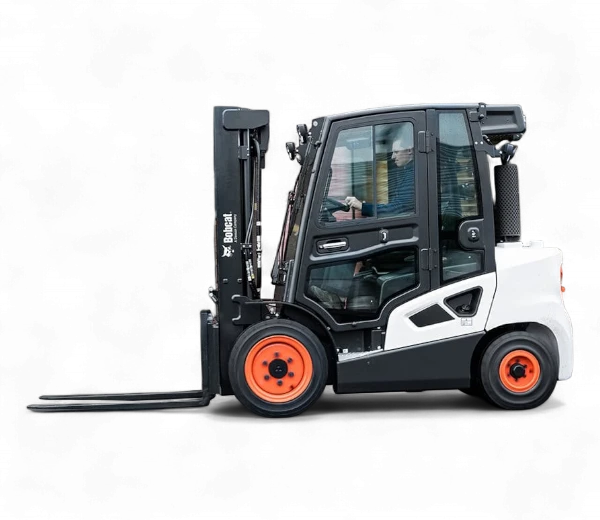

Bobcat 9 Series Core IC Outdoor Forklift

Steel, Lumber, Stone, Tile or Recycling – The 9 Series Advanced Cooling System covers the Most Grueling Applications

The Bobcat 9 Series Core IC Outdoor Forklift is a diesel-powered, heavy-duty machine designed for outdoor material handling, prioritizing safety, operator comfort, and productivity. Key features include powerful Doosan engines, ergonomic cabins with advanced displays, enhanced visibility aids, and durability features like oil-cooled disc brakes and Guardian Stability Systems.

This Series is built for reduced downtime, lower operational costs, and improved performance in demanding applications.

Request a Quote

Bobcat 9 Series Core IC Outdoor Forklift Catalog

Specs

Model Number	Load Capacity*	Width	Height	Max Fork Height	Lift Speed	Gradeability
D20S-9	4000 lbs	46"	86"	127"	118.7 fpm	33.6%
D25S-9	5000 lbs	46"	86"	127"	116.8 fpm	28.7%
D30S-9	6000 lbs	47"	86"	127"	115.1 fpm	25.7%
D33S-9	6500 lbs	47"	86"	127"	99.5 fpm	24.1%
D35S-9	7000 lbs	48"	86"	118"	99.5 fpm	22.3%

Model Number	Load Capacity*
D20S-9	4000 lbs
D25S-9	5000 lbs
D30S-9	6000 lbs
D33S-9	6500 lbs
D35S-9	7000 lbs

Model Number	Width
D20S-9	46"
D25S-9	46"
D30S-9	47"
D33S-9	47"
D35S-9	48"

Model Number	Height
D20S-9	86"
D25S-9	86"
D30S-9	86"
D33S-9	86"
D35S-9	86"

Model Number	Max Fork Height
D20S-9	127"
D25S-9	127"
D30S-9	127"
D33S-9	127"
D35S-9	118"

Model Number	Lift Speed
D20S-9	118.7 fpm
D25S-9	116.8 fpm
D30S-9	115.1 fpm
D33S-9	99.5 fpm
D35S-9	99.5 fpm

Model Number	Gradeability
D20S-9	33.6%
D25S-9	28.7%
D30S-9	25.7%
D33S-9	24.1%
D35S-9	22.3%

LOAD CAPACITY

4,000 – 7,000 LBS

TURNING RADIUS

88 – 94"

FUEL

Diesel

Request a Quote

Overview

The Bobcat 9-Series Core IC Outdoor is a robust diesel-powered forklift designed for demanding outdoor applications, featuring a powerful diesel engine, durable construction for harsh environments, and enhanced operator comfort with a floating cab and ergonomic features.

Performance

Dual-module radiator allows truck to run much cooler
Oil-cooled disc brake system
Pre-programmed performance modes
Vehicle control unit
3 performance modes
Enhanced cooling capacity
IP65-rated dust/waterproof connectors

Ergonomics

Lower dash profile
Low step into operator’s compartment
3-point entry/exit system
Fully adjustable seat and steering column
Operator leg room increased by 30%

Safety Features

Operator Sensing System (OSS)
Guardian Stability System (GSS)
Automatic deceleration
Electronic parking brake
Seat belt interlock
ProTek hot shift protection
Speed control
LED combination lamps
Mast tilt indicator
Rear grab bar with horn button

Ease of Service

Quiet running tier-4 diesel engine
Enhanced cooling capacity
Tilt cylinders located under floor plate

					Options


							Foundry Package
								Component and system protection

							Air Conditioner
								Improves operator comfort and safety by reducing heat and fatigue

							Heater Kit
								Improves operator comfort

							Air Suspension Seat
								Reduces shock and vibration

							Telescopic and tilting steering column
								Allows operators to customize their driving position

							Rear Assist Grip With Horn Button
								Prevents hand injuries by keeping hands inside the operator compartment

							Anti-Dust Package
								Reduces engine wear; protects sensitive parts

							Hydraulic Accumulator
								Shock absorber and energy storage device within the hydraulic system

							Siren & Microphone
								Direct warnings for pedestrians

							Backup Camera
								Eliminates blind spots, reduces pedestrian accidents

Get updates from Summit

Home Bobcat Page 17

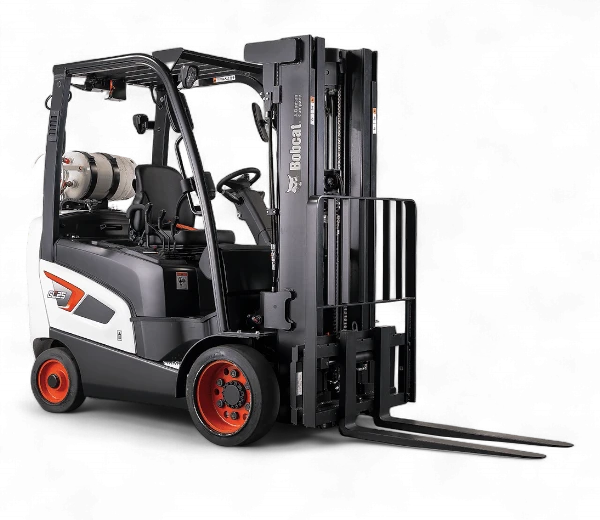

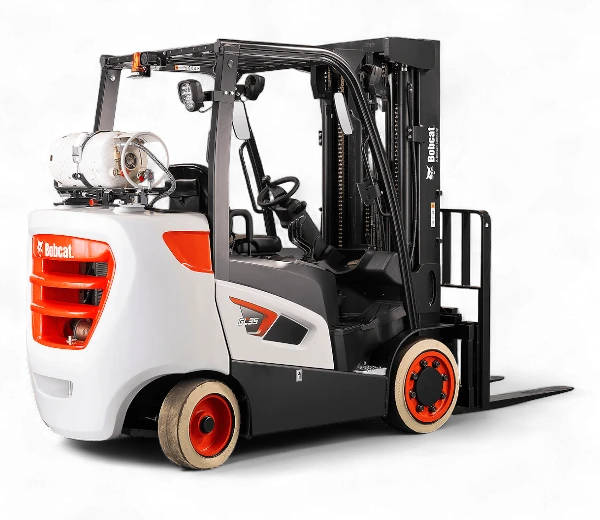

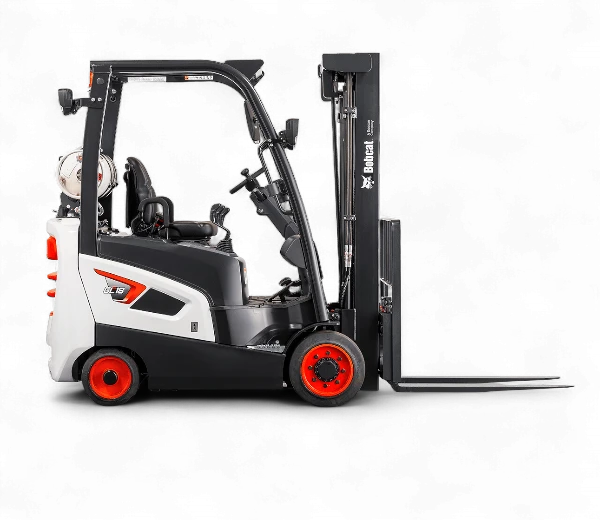

Bobcat 9 Series IC Indoor Forklift

Enhanced Operator Comfort Through an Ergonomically Designed Cab

The Bobcat 9 Series IC Indoor Forklift is designed for operator comfort, productivity, and reliability, featuring a spacious operator compartment with an adjustable steering column, ergonomic controls, and an easy-to-read display.

This Series has a lifting capacity range of 3,000 to 12,000 pounds and features such as electric power steering, dual-performance engine modes, and a wide-view mast to enhance visibility and performance.

Request a Quote

Bobcat 9 Series IC Indoor Forklift Brochure

Specs

Filter by: Load Capacity

Model Number	Load Capacity	Width	Height	Max Fork Height	Lift Speed	Gradeability
GC15S-9	3,000 lbs	37"	124"	118"	126 fpm	38.5%
GC18S-9	3,500 lbs	37"	125"	118"	124 fpm	33%
GC20SC-9	4,000 lbs	37"	127"	118"	122 fpm	31%
GC20S-9	4,000 lbs	42"	131"	127"	124 fpm	33%
GC25S-9	5,000 lbs	42"	133"	127"	122 fpm	28%
GC30S-9	6,000 lbs	44"	136"	127"	120 fpm	25.5%
GC33S-9	6,500 lbs	44"	137"	127"	118 fpm	22%
GC35S-9	8,000 lbs	50"	162"	114"	120 fpm	36%
GC35S-9 BCS	8,000 lbs	50"	162"	114"	120 fpm	38%
GC45S-9	10,000 lbs	56"	162"	114"	116 fpm	29%
GC45S-9 BCS	10,000 lbs	56"	162"	114"	116 fpm	34%
GC55S-9	12,000 lbs	56"	162"	104"	110 fpm	25%
GC55S-9 BCS	12,000 lbs	56"	162"	104"	110 fpm	25%

Model Number	Load Capacity
GC15S-9	3,000 lbs
GC18S-9	3,500 lbs
GC20SC-9	4,000 lbs
GC20S-9	4,000 lbs
GC25S-9	5,000 lbs
GC30S-9	6,000 lbs
GC33S-9	6,500 lbs
GC35S-9	8,000 lbs
GC35S-9 BCS	8,000 lbs
GC45S-9	10,000 lbs
GC45S-9 BCS	10,000 lbs
GC55S-9	12,000 lbs
GC55S-9 BCS	12,000 lbs

Model Number	Width
GC15S-9	37"
GC18S-9	37"
GC20SC-9	37"
GC20S-9	42"
GC25S-9	42"
GC30S-9	44"
GC33S-9	44"
GC35S-9	50"
GC35S-9 BCS	50"
GC45S-9	56"
GC45S-9 BCS	56"
GC55S-9	56"
GC55S-9 BCS	56"

Model Number	Height
GC15S-9	124"
GC18S-9	125"
GC20SC-9	127"
GC20S-9	131"
GC25S-9	133"
GC30S-9	136"
GC33S-9	137"
GC35S-9	162"
GC35S-9 BCS	162"
GC45S-9	162"
GC45S-9 BCS	162"
GC55S-9	162"
GC55S-9 BCS	162"

Model Number	Max Fork Height
GC15S-9	118"
GC18S-9	118"
GC20SC-9	118"
GC20S-9	127"
GC25S-9	127"
GC30S-9	127"
GC33S-9	127"
GC35S-9	114"
GC35S-9 BCS	114"
GC45S-9	114"
GC45S-9 BCS	114"
GC55S-9	104"
GC55S-9 BCS	104"

Model Number	Lift Speed
GC15S-9	126 fpm
GC18S-9	124 fpm
GC20SC-9	122 fpm
GC20S-9	124 fpm
GC25S-9	122 fpm
GC30S-9	120 fpm
GC33S-9	118 fpm
GC35S-9	120 fpm
GC35S-9 BCS	120 fpm
GC45S-9	116 fpm
GC45S-9 BCS	116 fpm
GC55S-9	110 fpm
GC55S-9 BCS	110 fpm

Model Number	Gradeability
GC15S-9	38.5%
GC18S-9	33%
GC20SC-9	31%
GC20S-9	33%
GC25S-9	28%
GC30S-9	25.5%
GC33S-9	22%
GC35S-9	36%
GC35S-9 BCS	38%
GC45S-9	29%
GC45S-9 BCS	34%
GC55S-9	25%
GC55S-9 BCS	25%

LOAD CAPACITY

3,000 – 12,000 LBS

TURNING RADIUS

74 – 90.5"

FUEL TYPE

LPG

Request a Quote

Overview

The Bobcat 9 series IC Indoor Forklift Series features, such as seat-side hydraulic levers, low-effort foot pedals, and a smaller steering wheel with a turning knob, minimize operator strain and fatigue. With a floating cab that reduces fatigue, a fully adjustable suspension seat, and a tilting and telescoping steering column.

This Series offers increased durability with a robust frame and components, along with simplified maintenance to reduce downtime.

Performance

Cooling system for the toughest applications
Compact drive axle for maneuvering in tight spaces
Boxcar edition for railway, paper, and manufacturing
Powerful engines for excellent performance

Ergonomics

Large, open operator’s compartment
More leg room & knee space
Low step heights & 3-point entry system
Adjustable steering column
LCD panel
User-friendly positioned hydraulic levers

Safety Features

Operator Sensing System (OSS)
20% more visibility
Large, convenient emergency stop button
Rear grab bar with horn button
Strobe and back-up alarm
LED lighting standard

Ease of Service

Easy accessibility to the engine compartment
Double taper bearings on steer axles enhance reliability
Oil-cooled disc brakes significantly reduce maintenance costs
Fuses and relays located in one convenient place
Increased operating hours between recommended service intervals save on routine maintenance costs

					Options


							Backup Camera
								Eliminates blind spots, reduces pedestrian accidents

							LED Work Lights
								Improve visibility in low-light conditions

							Full Cab with HVAC
								Climate-controlled environment to significantly improve operator comfort, safety, and productivity

							Anti-Dust Package
								Reduces engine wear; protects sensitive parts

							Foundry Package
								Component and system protection

							Fork Positioner
								Adjusts fork width from the cab, to save time, prevent damage, and reduce operator fatigue

							Integral Sideshifter
								Effortlessly move forks at the touch of a lever

							Rotators
								Rotate, dump, or invert loads

Get updates from Summit

Home Bobcat Page 17

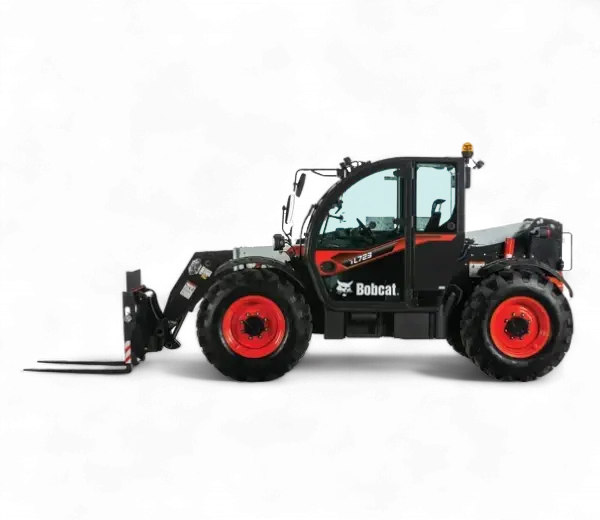

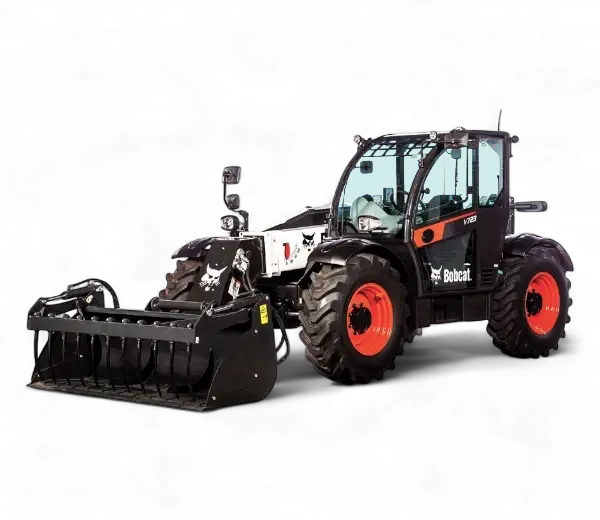

Bobcat TL723 Telehandler

Bring your toughest jobs within reach with the highly maneuverable and high-performing Bobcat TL723 telehandler.

Automatic ride control
Unmatched versatility
Advanced turbo-charged engine
Automatic parking brake with slope assist

Request a Quote

Bobcat TL723 Telehandler Brochure

Specs

Model Number	Horsepower	Travel Speed	Lift Capacity	Lift Height	Bucket Breakout Force
TL723	100 hp	18.7 mph	7,718 lbs	274"	13,938 lbs

Model Number	Horsepower
TL723	100 hp

Model Number	Travel Speed
TL723	18.7 mph

Model Number	Lift Capacity
TL723	7,718 lbs

Model Number	Lift Height
TL723	274"

Model Number	Bucket Breakout Force
TL723	13,938 lbs

HORSEPOWER

100 HP

Auxiliary Hydraulic Flow

26.4 GPM

MAX TRAVEL SPEED

18.7 MPH

Request a Quote

Overview

The Bobcat TL723 telehandler is a versatile machine designed for construction and agriculture, featuring a turbocharged Tier 4 engine, automatic ride control, and multiple operating modes for different tasks. Key features include a 7,718-pound max-rated capacity, four-speed versatility, and an automatic parking brake with slope assist for added safety.

Performance

Z-Bar Boom Linkage
High Load Capacity and Lift Height
100 hp Tier 4 Engine
Hydrostatic Transmission
Load Sense Hydraulic System
Patented Hydraulic Lift System
Heavy-Duty Drivetrain
Four Steering Modes
Five Operation Modes
Two-Speed, Low and High Range
Optimum Tractive Effort
Heavy-Duty Lift Cylinder
Automatic Tilt (Attachment) Positioning
2-Stage, Low-Profile Boom
Automatic Ride Control
Auxiliary Hydraulics
Auxiliary Flow Management
Continuous Hydraulic Flow With Dual Detent
Large-Diameter Tires
Boom Float
Standard Counterweight

Durability

Box-Welded Frame With Protective Chassis
Automatic Battery Disconnect
Side-by-Side Cooling Design
Cyclonic Air Prefilter
Robust Boom Design
Sealed Engine Compartment
Automatic Reverse Cooling Fan
Protected Cylinders
Fine Mesh Intake Screen
Poly Fuel Tank
Machine Protection
Impact-Resistant Engine Access Panel
Reinforced Heavy-Duty Boom Pivot and Enclosed Frame Welds
Common Parts
Window Guards

Ease of Service

Simple Cooling System Cleanout
Double-Element Air Filter
Adjustable Boom Guides
Easy Engine Access
Oil Filter Access
Easy Battery Access

					Attachments


							Bale Fork
								Enhances load stabilization for both round and square bales

							Bucket
								For efficient material handling

							Pallet Fork
								Quickly and easily lift, carry, stack, and place palletized goods

Bobcat Pro 5 Series IC Outdoor Forklift

Page Menu

Specs

Specifications

LOAD CAPACITY

TURNING RADIUS

FUEL

Overview

Performance

Ergonomics

Safety Features

Ease of Service

Options

Related Products

Toyota High Capacity IC Outdoor Forklift

Toyota Large IC Outdoor Forklift

Bobcat 7 Series High Capacity IC Outdoor Forklift

Bobcat 7 Series Core IC Outdoor Forklift

Bobcat 9 Series Large IC Outdoor Forklift

Bobcat 9 Series Mid IC Outdoor Forklift

Get updates from Summit

Bobcat 7 Series High Capacity IC Outdoor Forklift

Page Menu

Specs

Specifications

LOAD CAPACITY

TURNING RADIUS

FUEL

Overview

Performance

Ergonomics

Safety Features

Ease of Service

Options

Related Products

Toyota Core IC Outdoor Forklift

Toyota High Capacity Core IC Outdoor Forklift

Toyota High Capacity IC Outdoor Forklift

Toyota Large IC Outdoor Forklift

Get updates from Summit

Bobcat 7 Series Large IC Outdoor Forklift

Page Menu

Specs

Specifications

LOAD CAPACITY

TURNING RADIUS

FUEL

Overview

Performance

Ergonomics

Safety Features

Ease of Service

Options

Related Products

Toyota Core IC Outdoor Forklift

Toyota Large IC Outdoor Forklift

Bobcat 7 Series Core IC Outdoor Forklift

Bobcat 7 Series Mid IC Outdoor Forklift

Get updates from Summit

Bobcat 7 Series Mid IC Outdoor Forklift

Page Menu

Specs

Specifications

LOAD CAPACITY

TURNING RADIUS

FUEL

Overview

Performance

Ergonomics

Safety Features

Ease of Service

Options

Related Products

Bobcat 7 Series High Capacity IC Outdoor Forklift

Bobcat 9 Series Mid IC Outdoor Forklift

Bobcat 9 Series Large IC Outdoor Forklift

Bobcat 9 Series IC Indoor Forklift

Get updates from Summit

Bobcat 7 Series Core IC Outdoor Forklift

Page Menu
